Supra 7M-GTE, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
TCCS System
>>
Diagnosis & Testing
>>
Injector Circuits Check
Injector Circuits Check

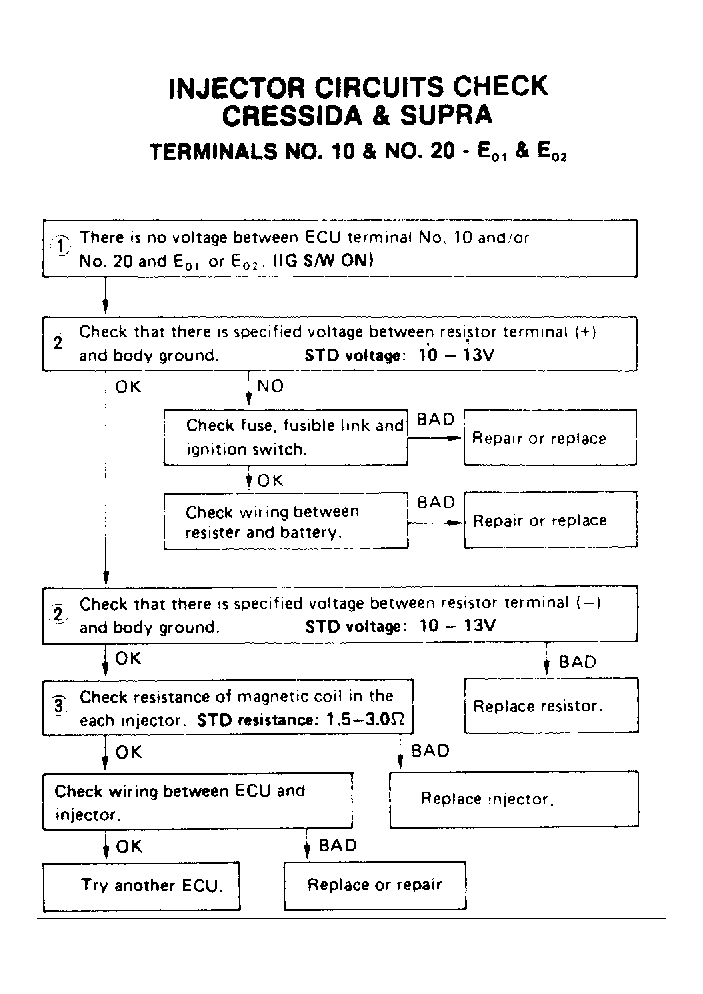

Fig 1: Terminals No. 10 & No. 20 - E01 & E02 (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Wiring Diagram (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Wiring Diagram (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
