ISC & Circuit Check — 1987 Toyota Supra 7M-GTE, Standard Service Manual ~ LEMON Manuals

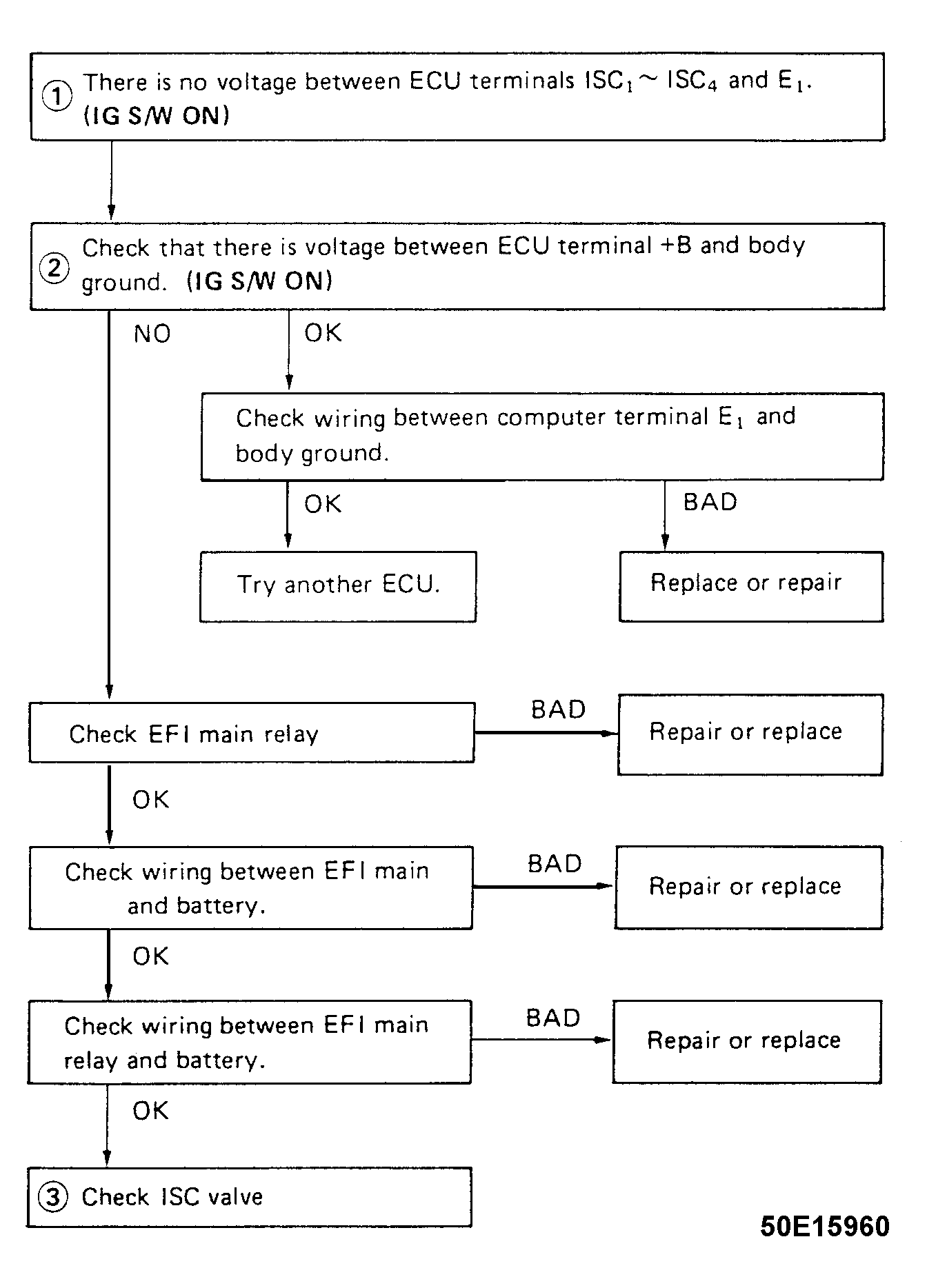

Fig 1: Terminals ISC, thru ISC4 - E1 (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Wiring Diagram (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Wiring Diagram (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

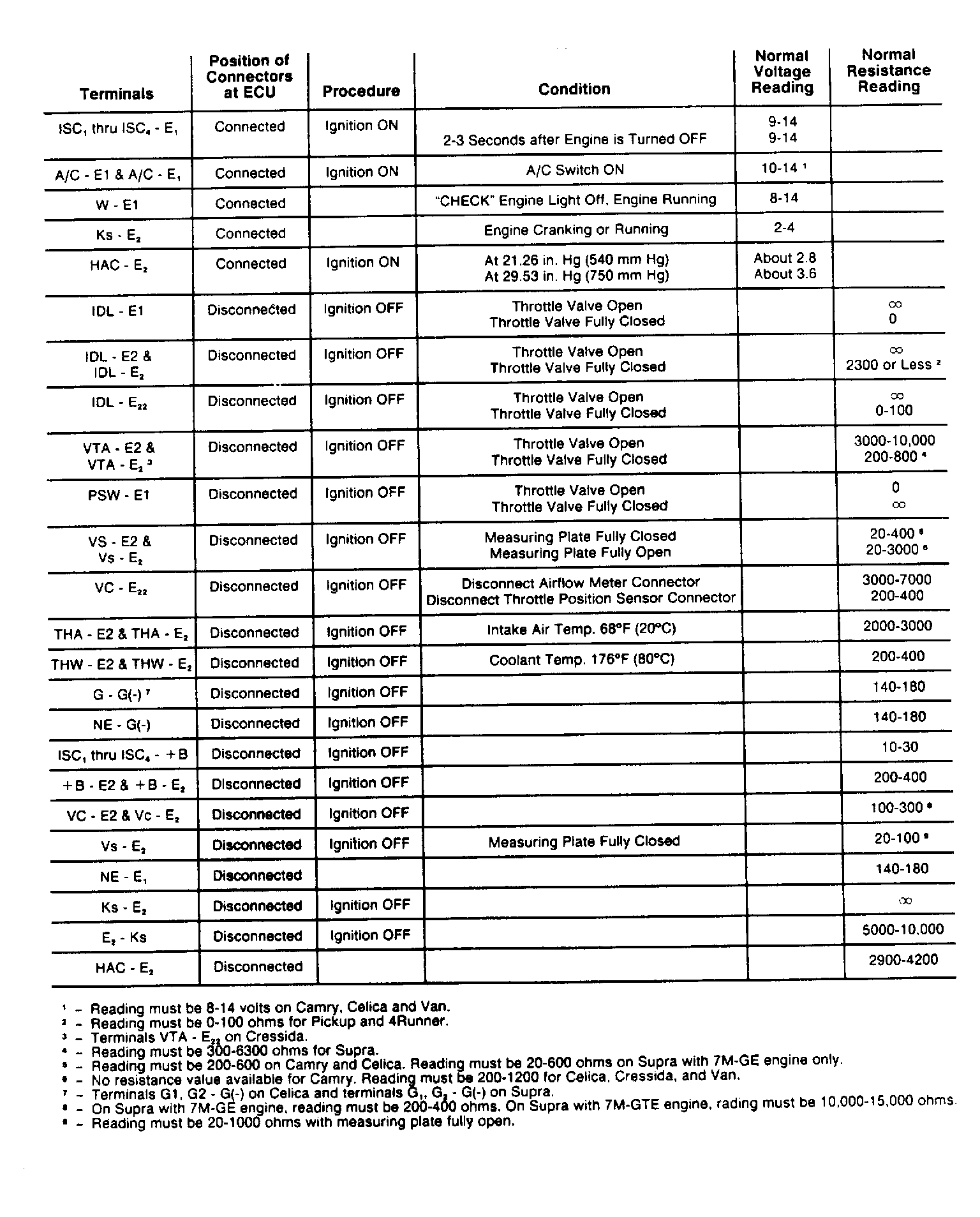

Fig 4: TCCS Voltage & Resistance Specification Chart (1 Of 2)

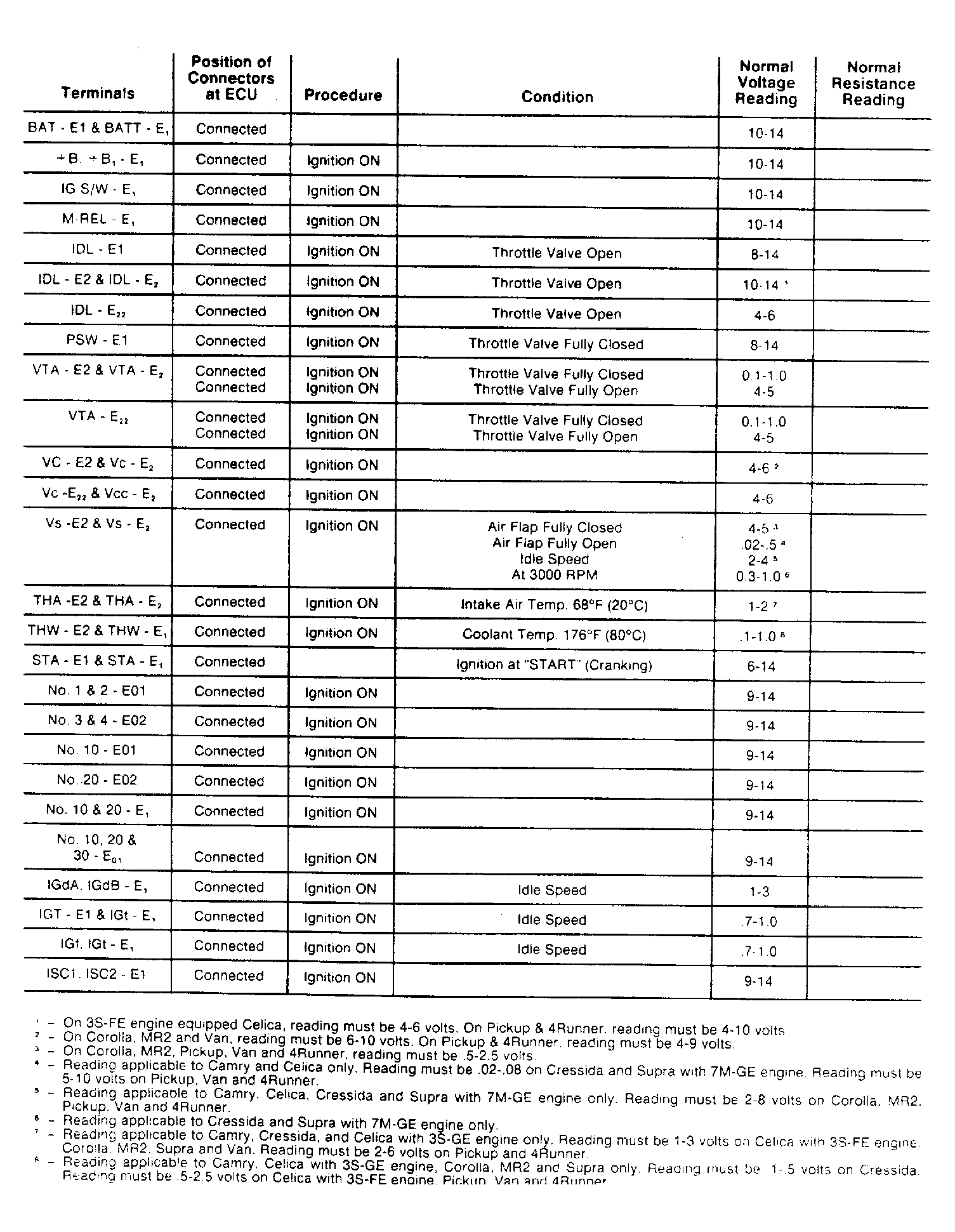

Fig 5: TCCS Voltage & Resistance Specification Chart (2 Of 2)
