Diagnostic Circuit Check

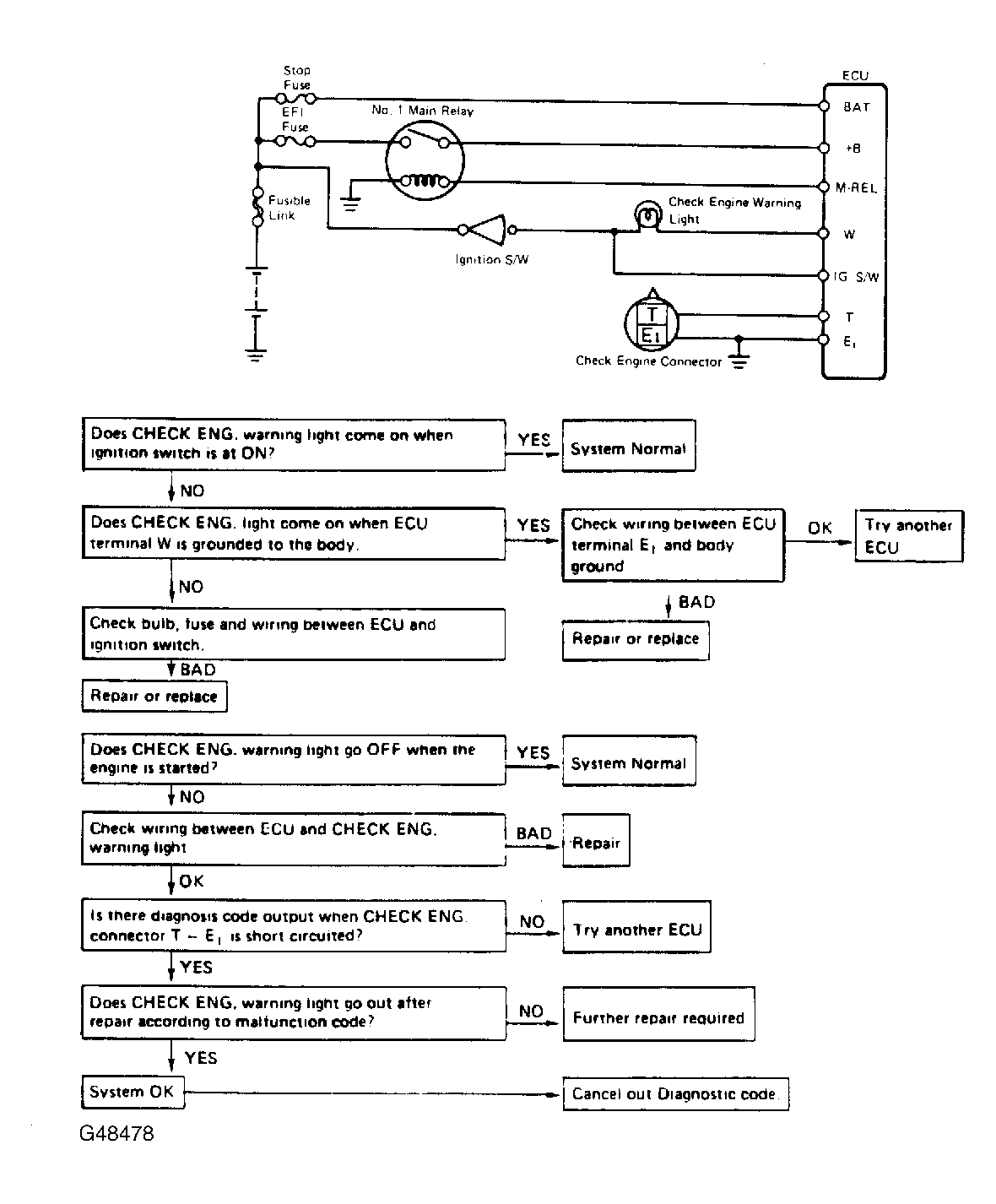

Fig 1: Diagnostic Circuit Check (1 Of 2)
G48478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Diagnostic Circuit Check (2 Of 2)
G48457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
