Manual Hub: Disassembly

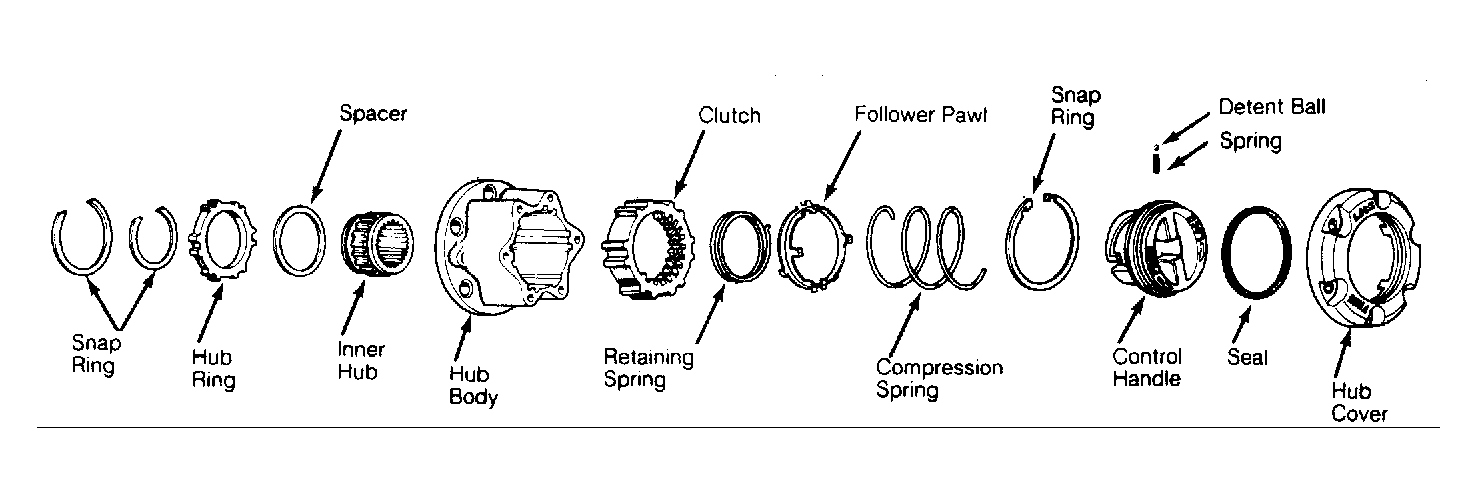

On all models, remove snap ring and control handle from hub cover. Remove detent ball and spring from control handle. Remove snap ring, inner hub and hub ring from body. Remove snap ring, hub ring and spacer from inner hub. See Figure.
