ISC & Circuit Check

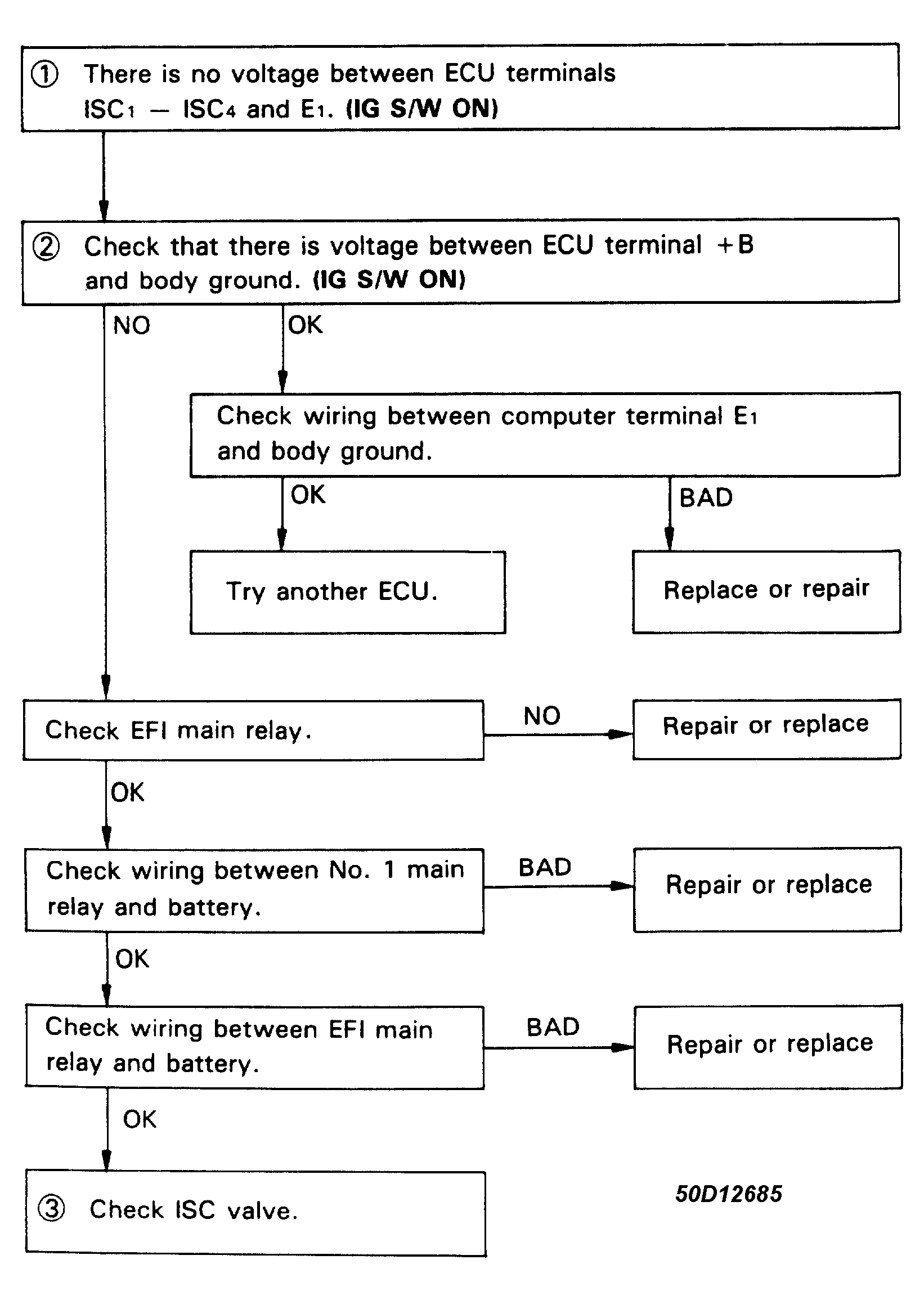

Fig 1: Terminals ISC, Thru ISC - E1 (1 Of 3)
G50D12685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Wiring Diagram (2 Of 3)
G62152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

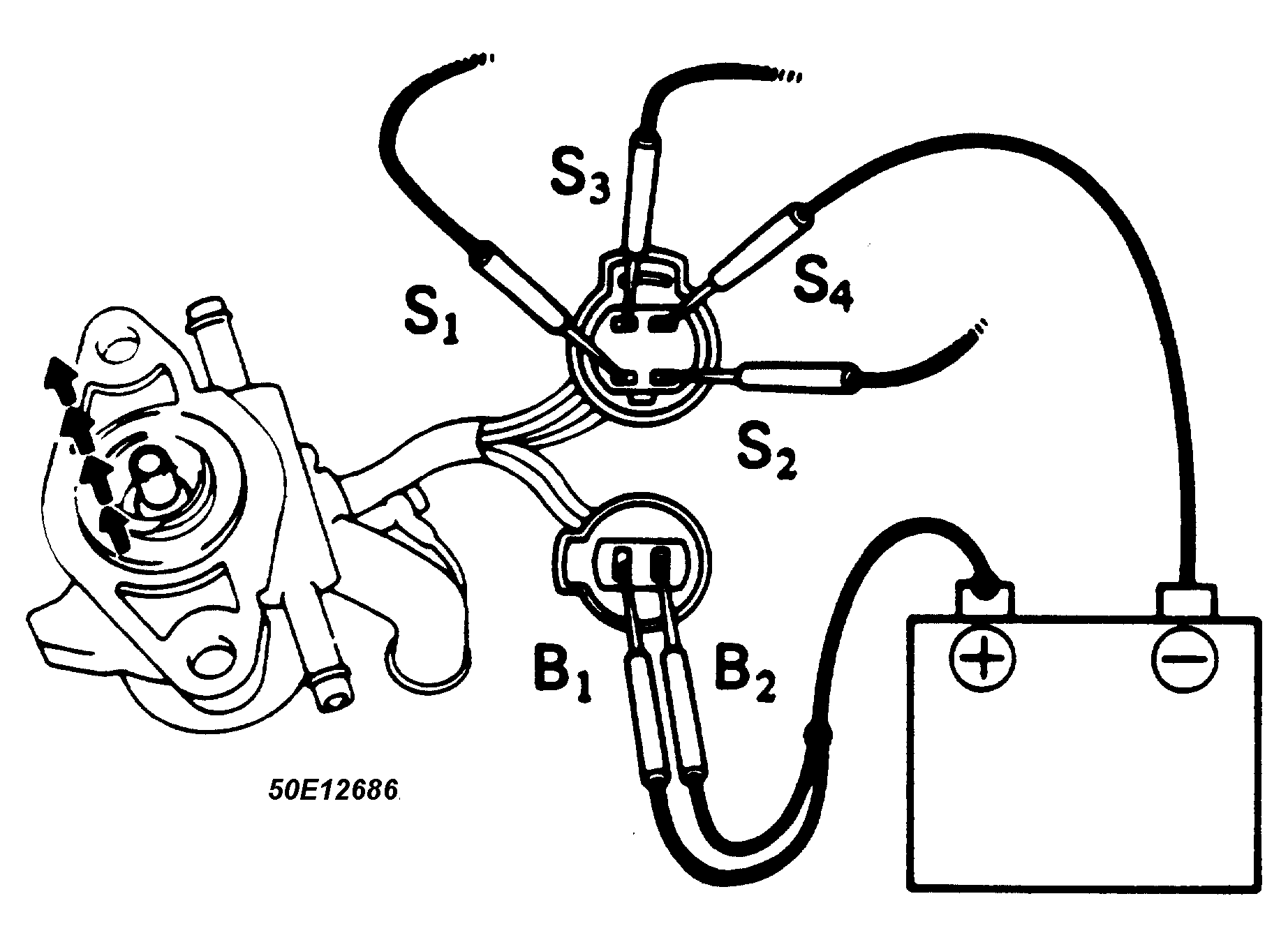

Fig 3: Wiring Diagram (3 Of 3)
G50E12686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: TCCS Voltage & Resistance Specification Chart (1 Of 2)
G72875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: TCCS Voltage & Resistance Specification Chart (2 Of 2)
G72876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
