Wiring Diagrams

Fig 1: Corolla FWD Computer Controlled Emission System
G61929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Corolla RWD Computer Controlled Emission System
G48427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

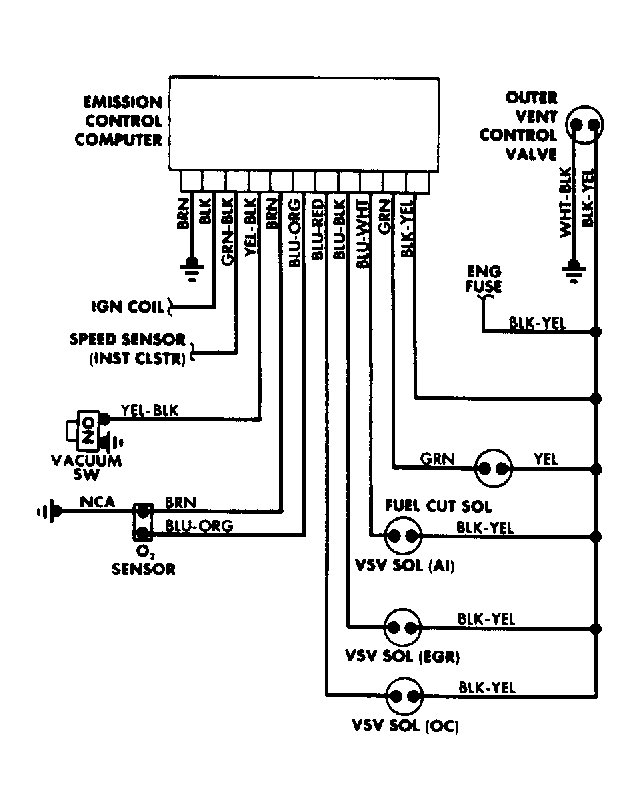

Fig 3: Land Cruiser Computer Controlled Emission System
G61931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Pickup Computer Controlled Emission System (Fed.)
G61934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

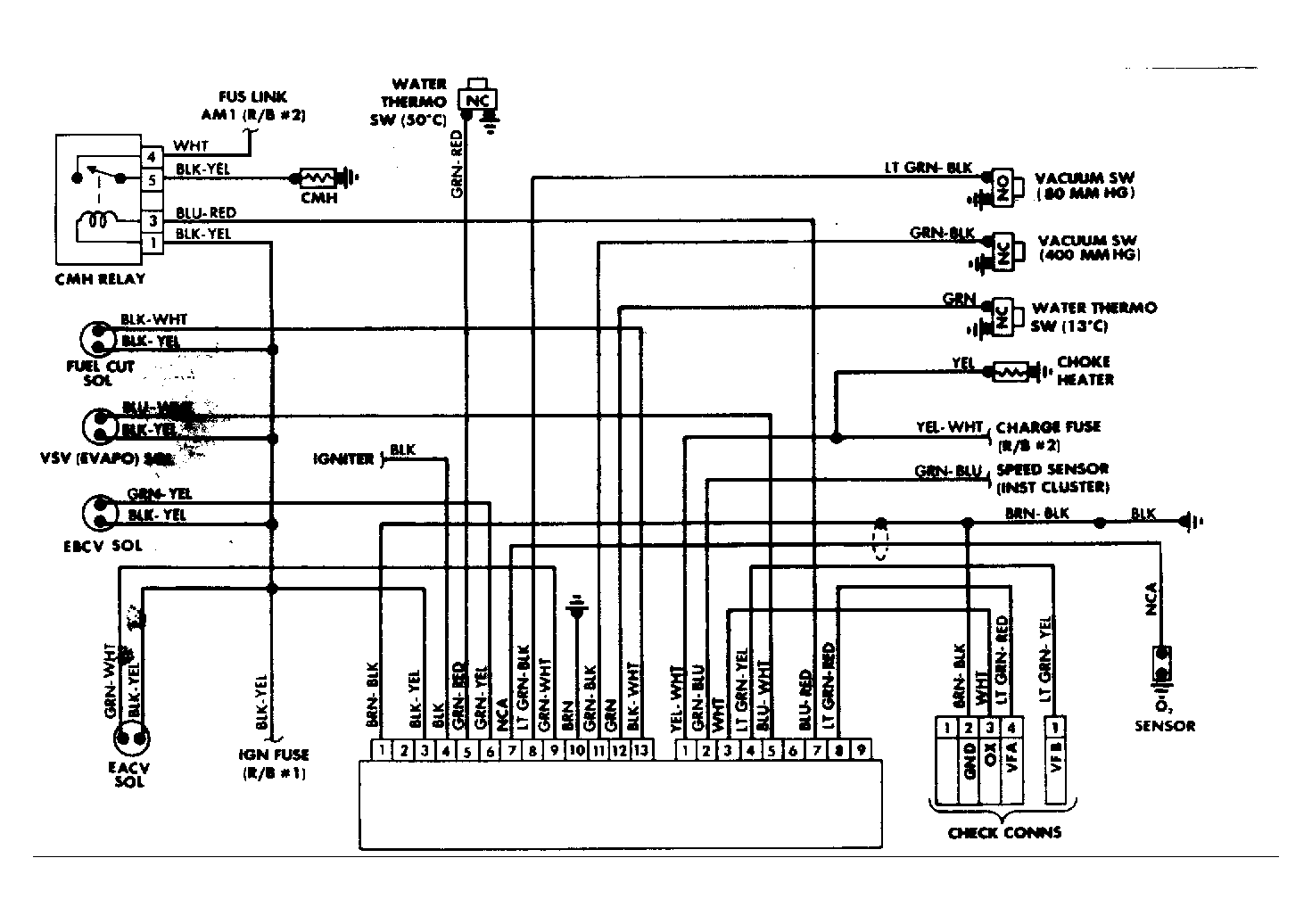

Fig 5: Pickup Computer Controlled Emission System (Calif.)
G61933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

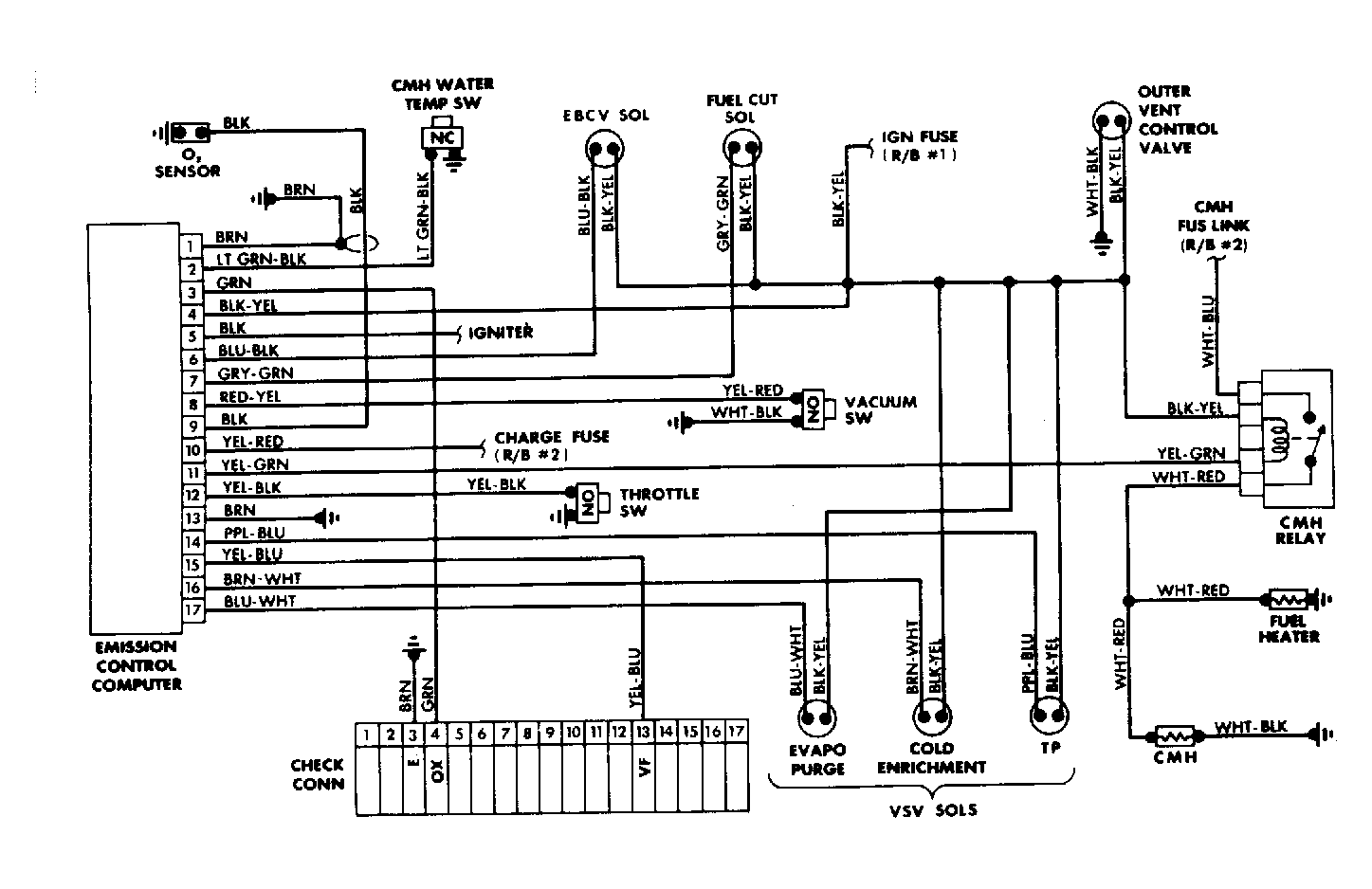

Fig 6: Tercel Computer Controlled Emission System
G61936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 7: Tercel Wagon Computer Controlled Emission System
G61935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
