Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

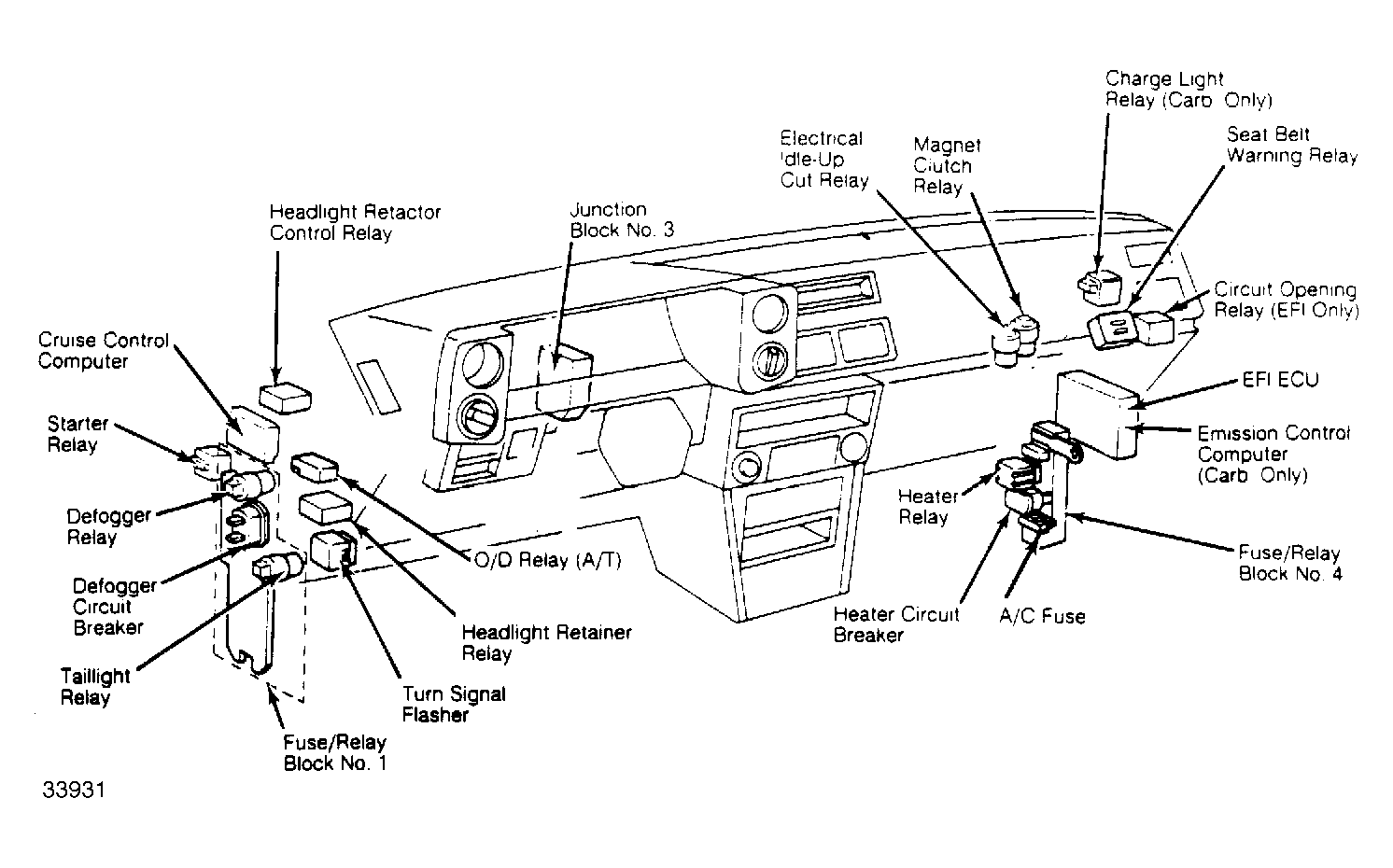

Defogger Circuit Breaker In fuse/relay block No. 1. See Figure & Figure .

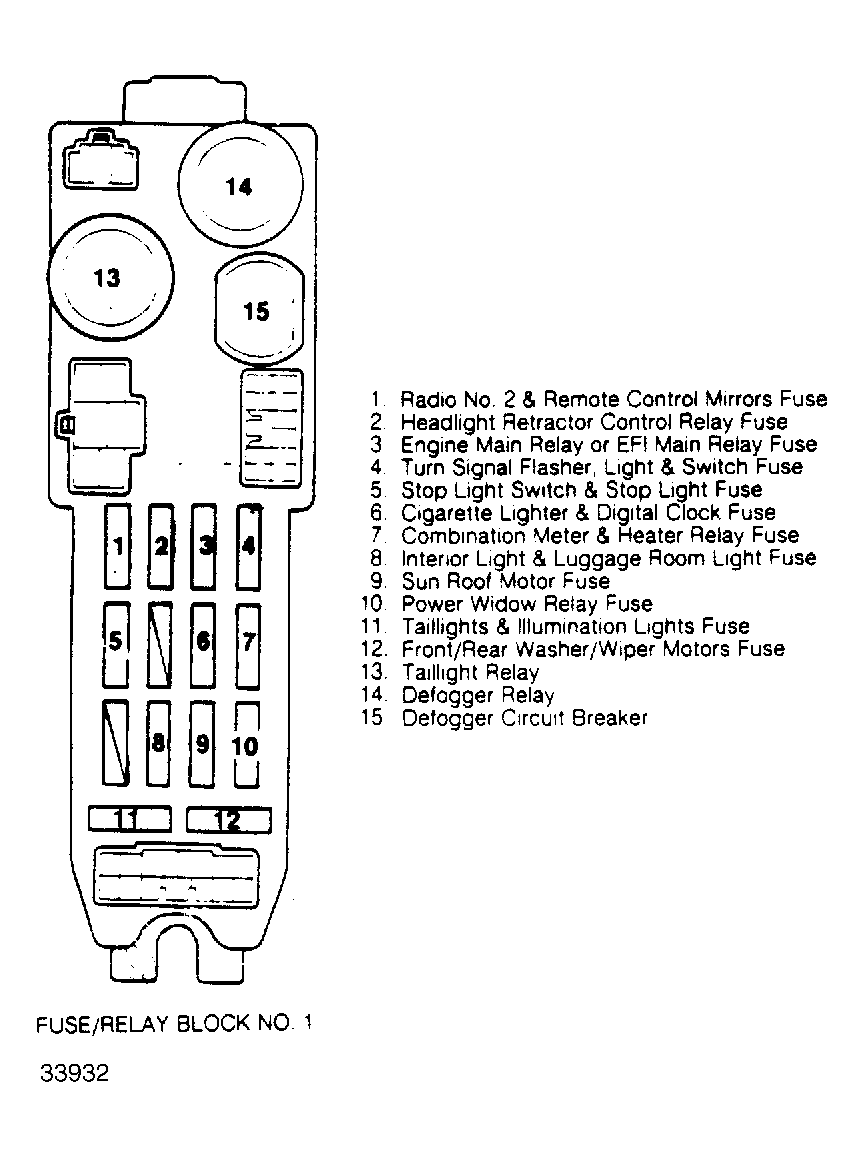

Fuse/Relay Block No. 1 Behind left kick panel. See Figure & Figure .

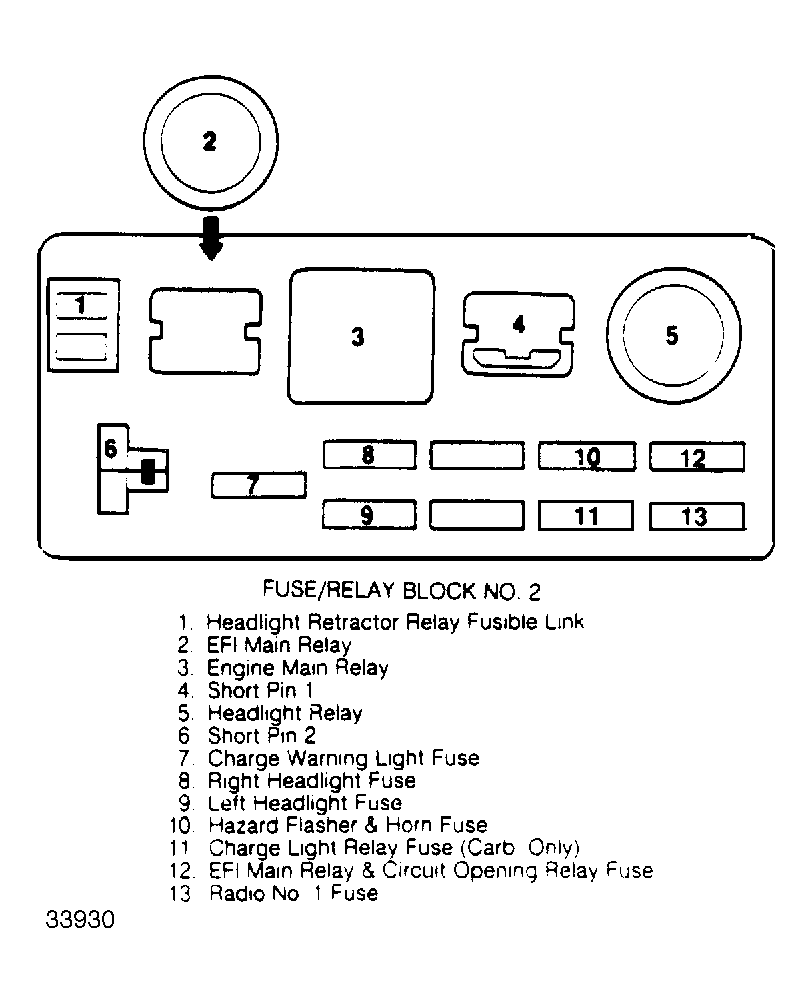

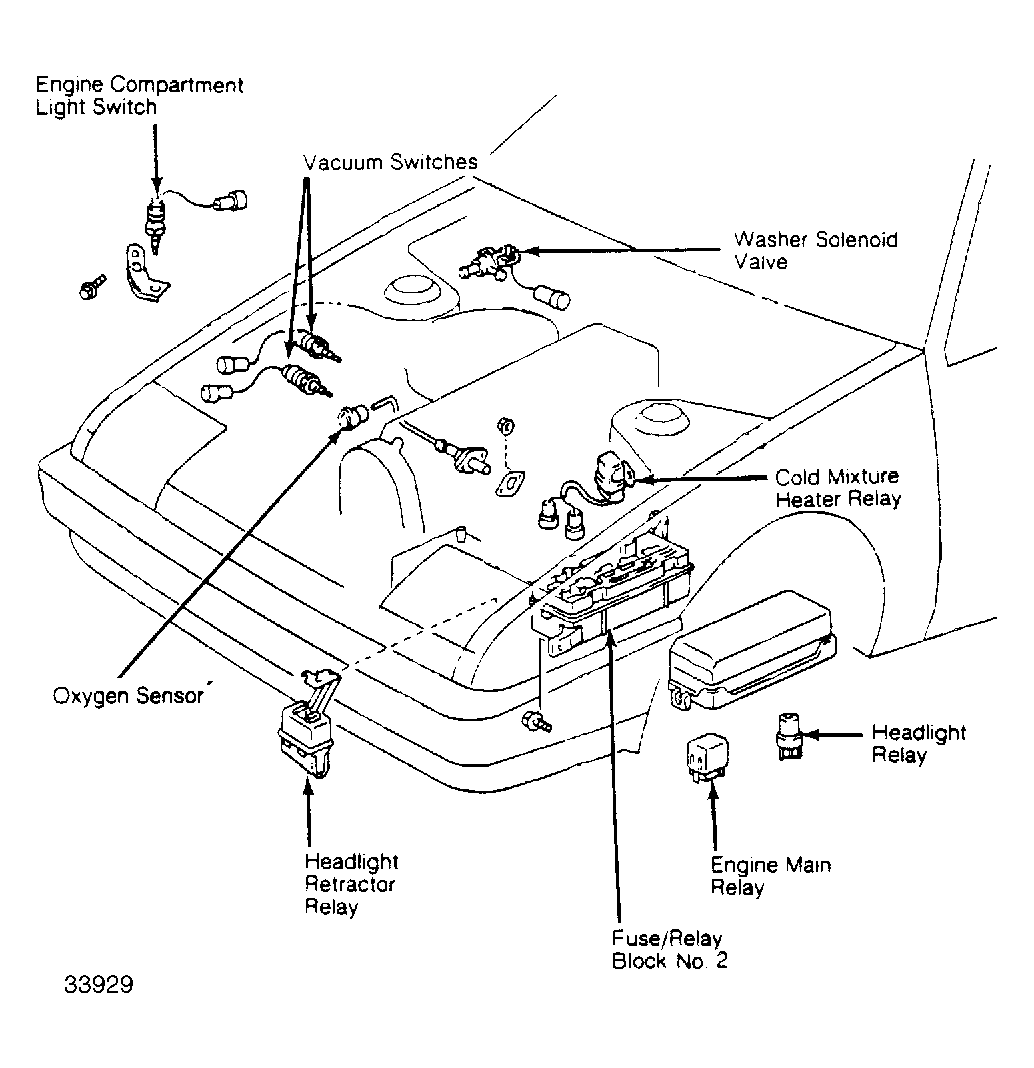

Fuse/Relay Block No. 2 In left front side of engine compartment. See Figure & Figure .
Fuse/Relay Block No. 4 Behind right kick panel. See Figure.
Fusible Links At battery positive terminal.
Heater Circuit Breaker In fuse/relay block No. 4. See Figure.
