Celica ST, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
TCCS System
>>
Wiring Diagrams
Wiring Diagrams

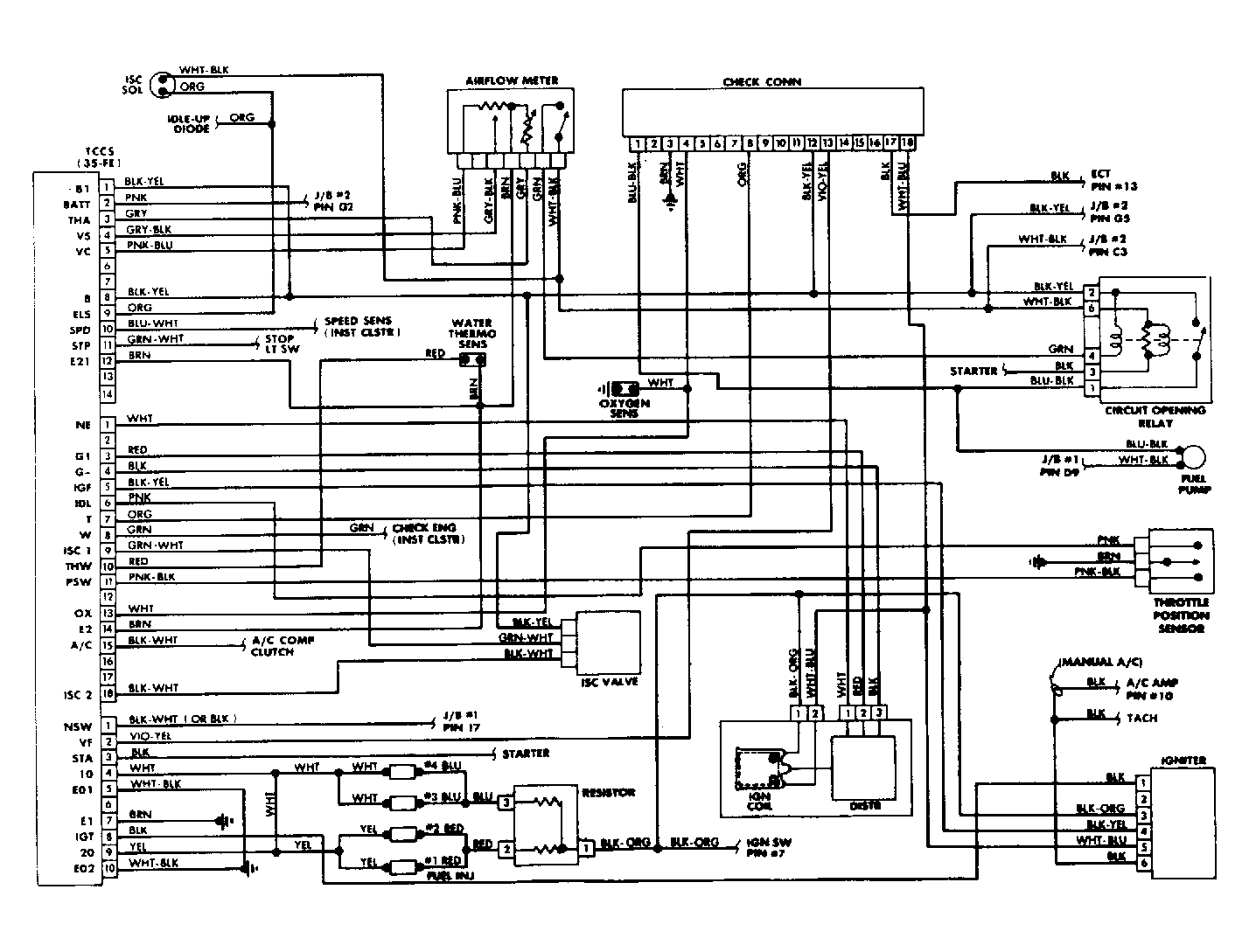

Fig 1: TCCS Wiring Diagram (W/3S-FE Engine)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

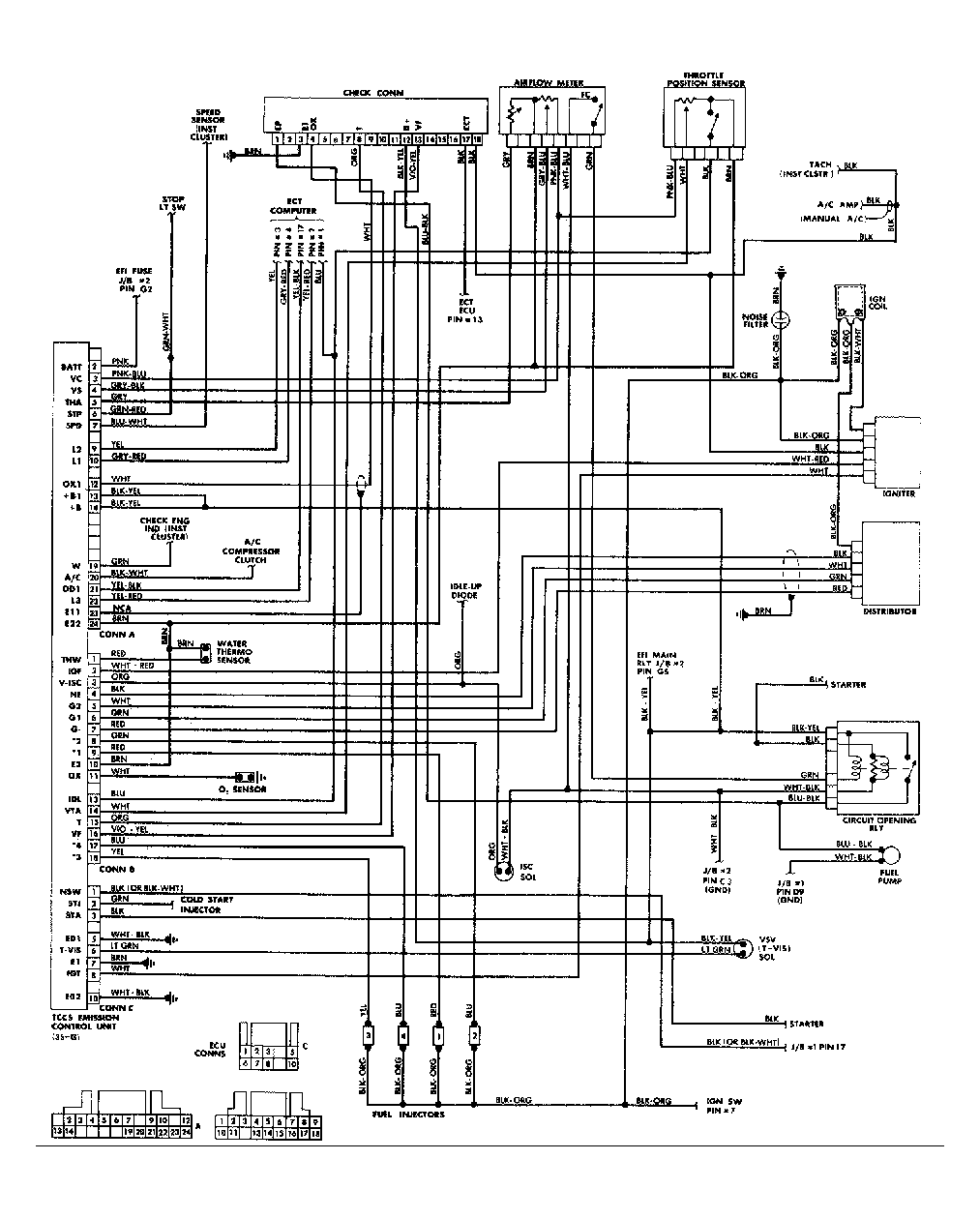

Fig 2: TCCS Wiring Diagram (W/3S-GE Engine)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
