Celica ST, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
TCCS System
>>
Diagnosis & Testing
>>
Code 43 Ignition & Starter
Code 43 Ignition & Starter

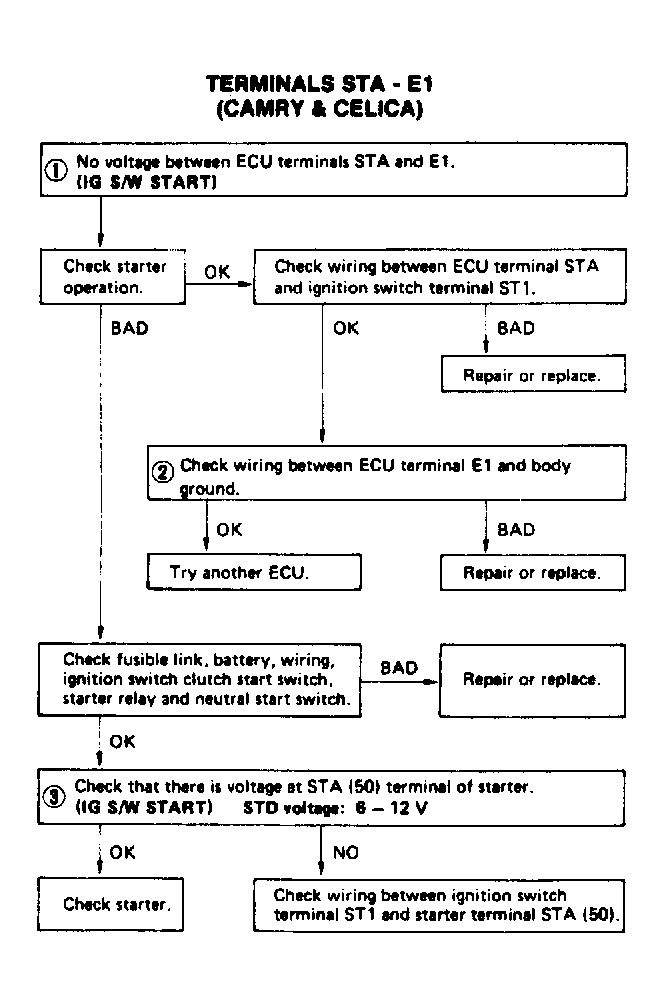

Fig 1: Terminals STA - E1 (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Terminals STA - E1 (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
