Celica ST, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
TCCS System
>>
Diagnosis & Testing
>>
Code 14 IGNITOR & Circuit
Code 14 IGNITOR & Circuit

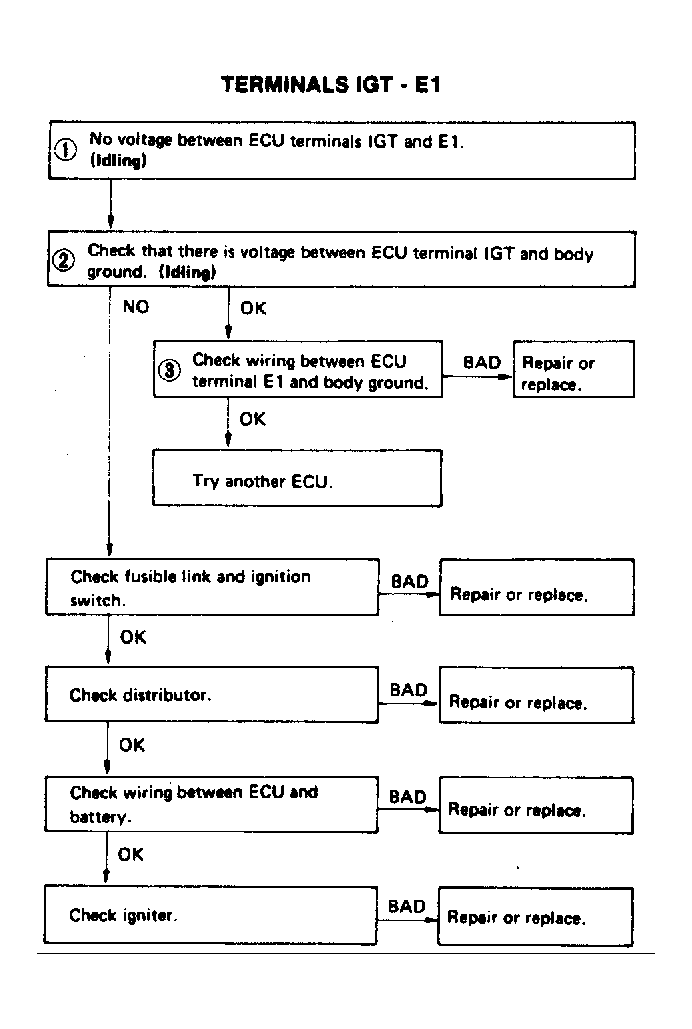

Fig 1: Terminals IGT - E1 (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Terminals IGT - E1 (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Terminals IGT - E1 (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Terminals IGT - E1 (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
