Wiring Diagrams

Fig 1: Camry & Camry All-Trac Anti-Lock Brake System Wiring Diagram
G90G09536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Celica Non-Turbo Anti-Lock Brake System Wiring Diagram
G90I09537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

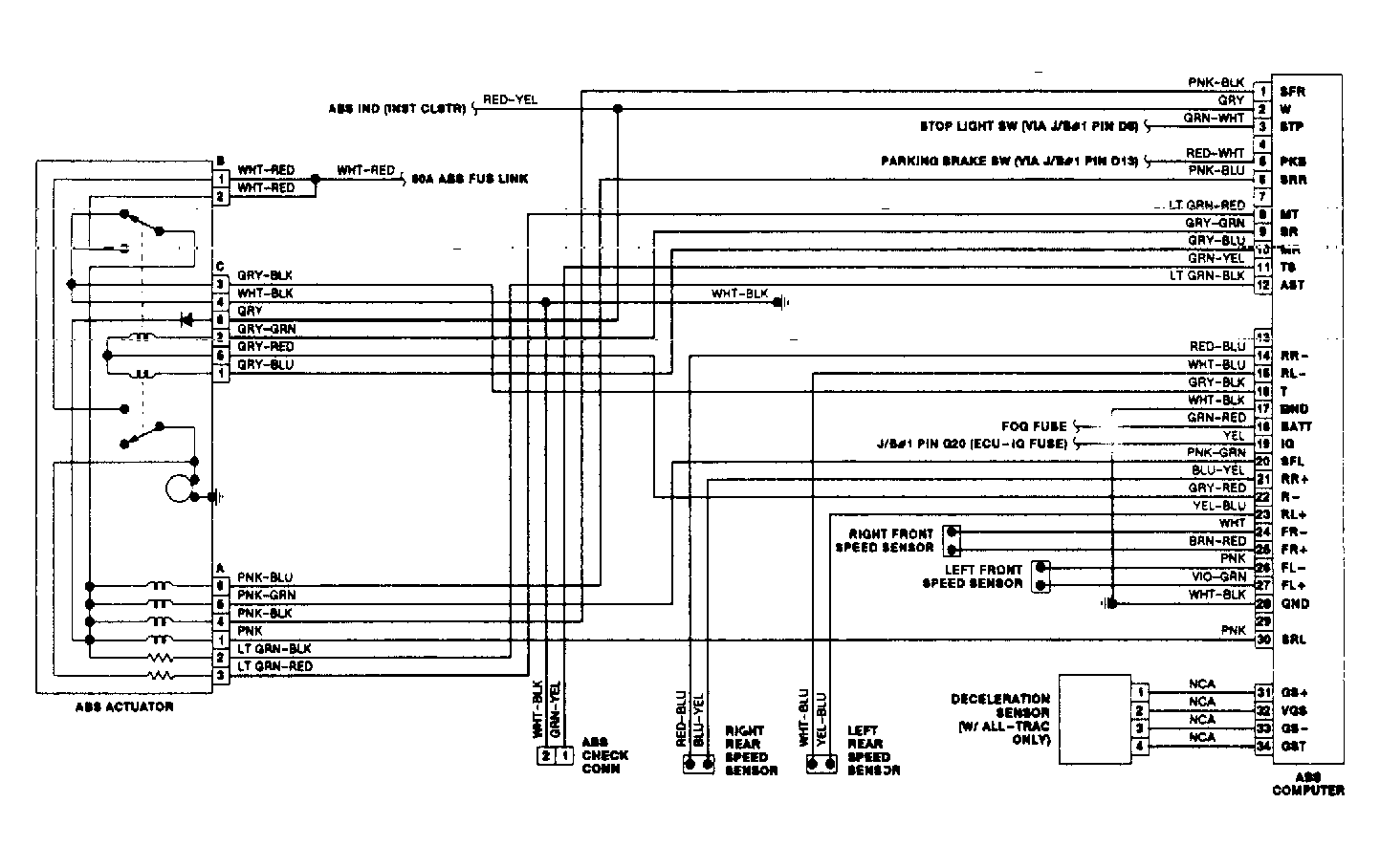

Fig 3: Celica & Celica All-Trac Anti-Lock Brake System Wiring Diagram
G90A09538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Cressida Anti-Lock Brake System Wiring Diagram
G90C09539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Supra Anti-Lock Brake System Wiring Diagram
G90E09540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
