SIGNAL GENERATOR RESISTANCE SPECIFICATIONS

TECHNICAL SERVICE BULLETIN

Reference Number(s): EN91-007, Date of Issue: June 21, 1991

Model(s): All Toyota Models

Bulletin No.: EN91-007

Reference: Engine

Date: June 21, 1991

Resistance specifications for ignition signal generators (pickup coils) have been revised for engine types listed below, for all model years:

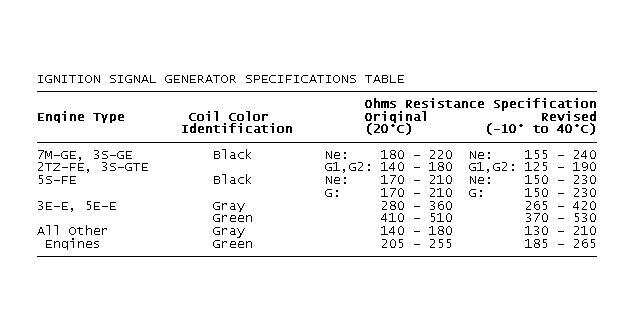

Fig 1: IGNITION SIGNAL GENERATOR SPECIFICATIONS TABLE

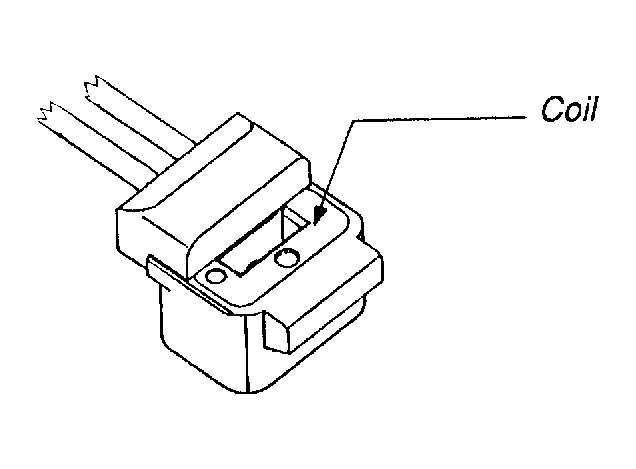

Fig 2: View of Pickup Coil
