Alternator & Regulator - NIPPONDENSO: Testing: Notes

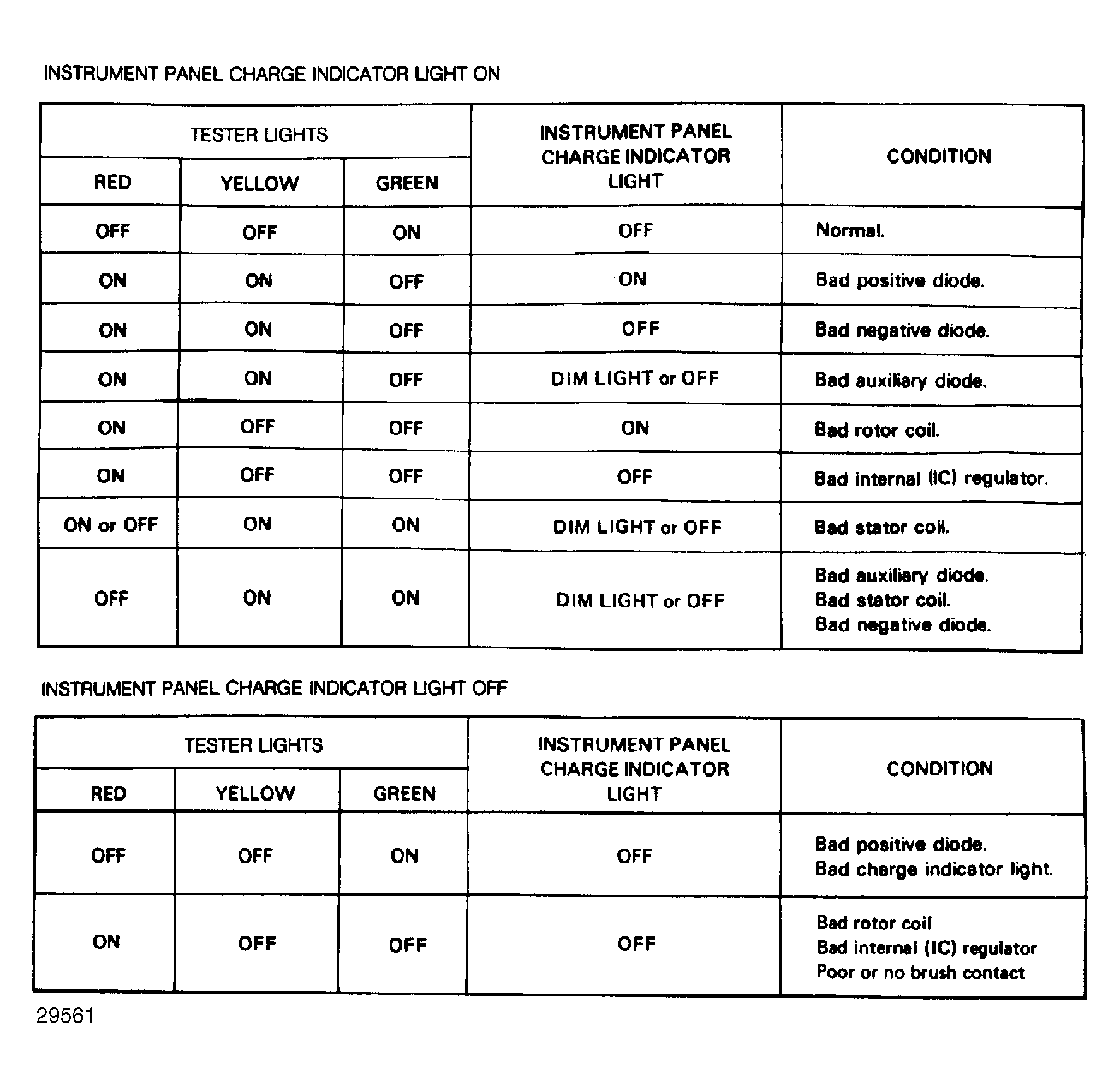

Fig 1: Alternator Tester Diagnostic Charts

G29561

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
