Motor Operation

Inspect motor operation by connecting the positive (+) lead from the battery to terminal 1. Connect the negative (-) lead to terminal 2. See Fig 1, Fig 2, Fig 3 or Fig 4 . Check that the motor rod withdraws.
Connect the positive (+) lead from the battery to terminal 2. Connect the negative (-) lead to terminal 1. Check that the motor rod protrudes.
If there is no motor operation, replace the motor.

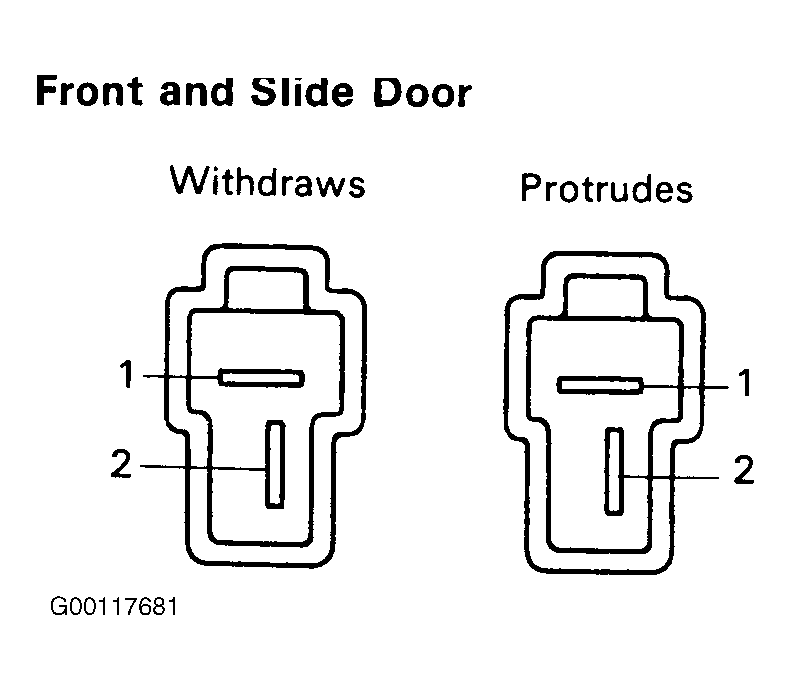

Fig 1: Identifying Door Lock Motor Connector Terminals (Front & Slide Door, 1984)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

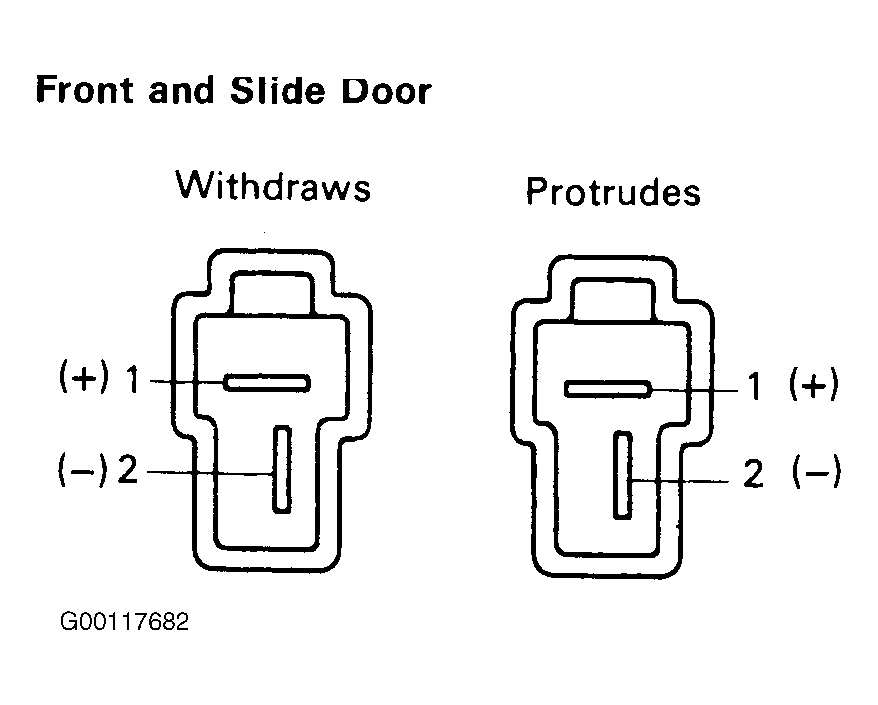

Fig 2: Identifying Door Lock Motor Connector Terminals (Front & Slide Door, 1985-86)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

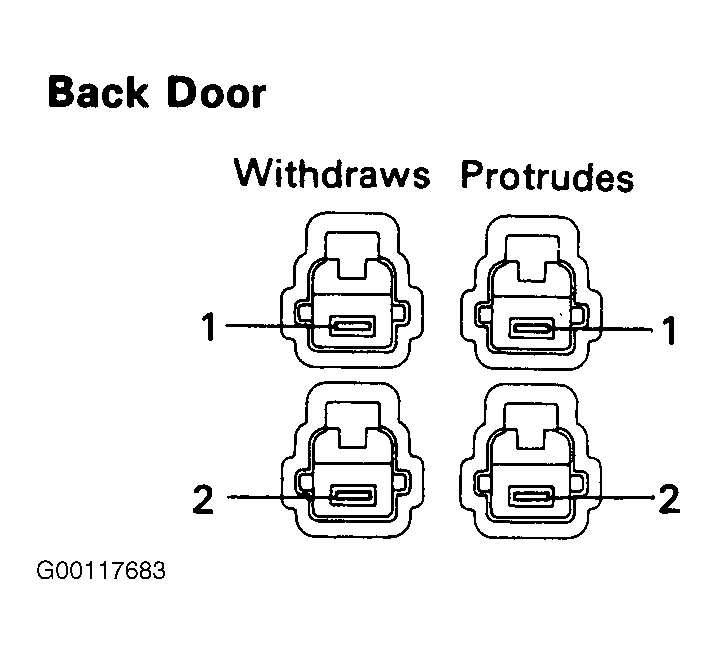

Fig 3: Identifying Door Lock Motor Connector Terminals (Back Door; 1984)

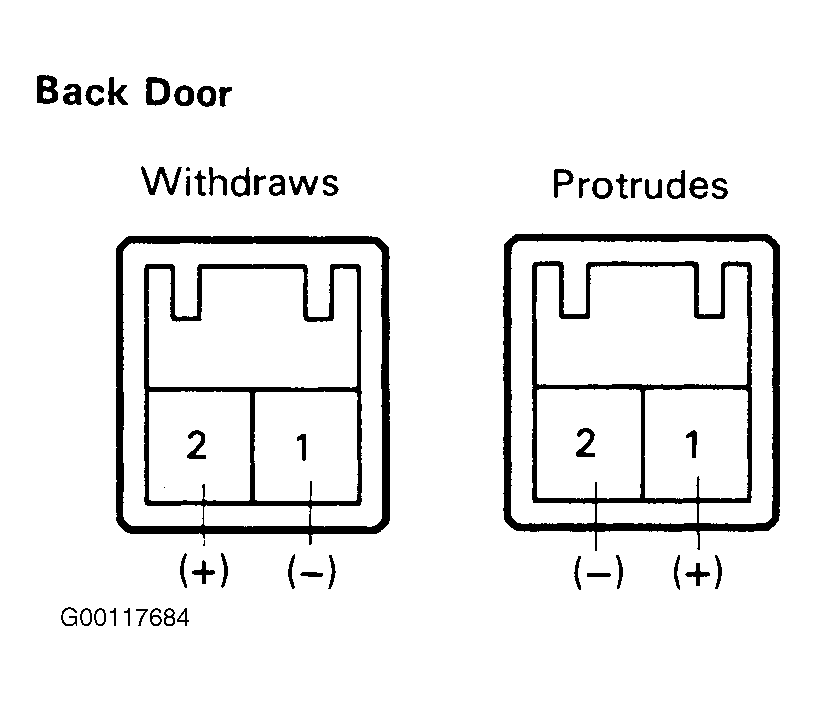

Fig 4: Identifying Door Lock Motor Connector Terminals (Back Door; 1985-86)
