Charcoal Canister

  1. Check for clogged filter and/or stuck check valve by blowing low pressure compressed air into canister tank port. Check that air flows freely out of other canister ports.
  2. Blow air into canister purge port and check that air does not flow out of any other port.
  3. Replace canister if it does not operate as outlined.

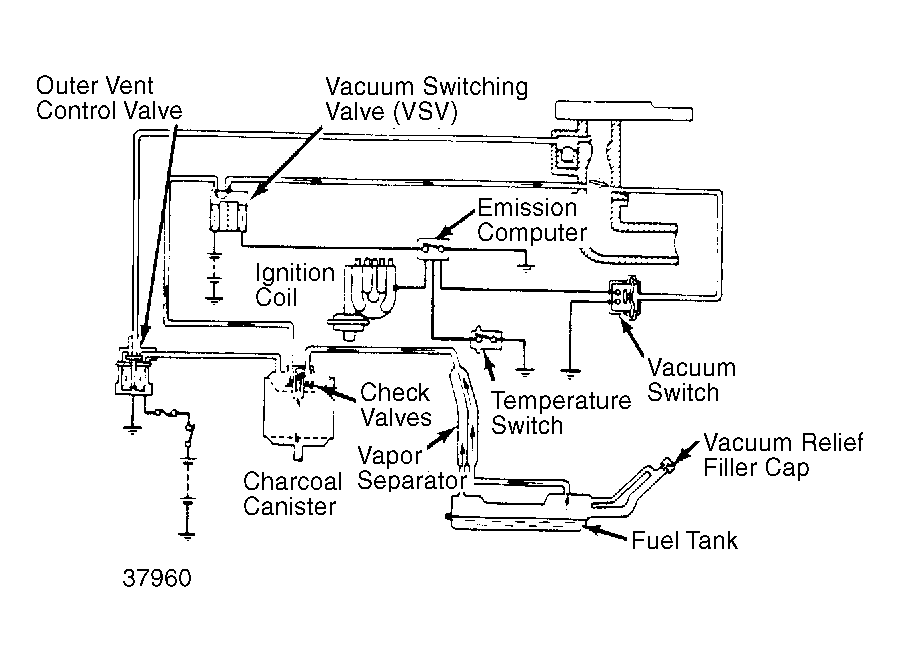

Fig 1: Tercel Fuel Evaporation System
G37960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
