Trouble Code 41 Throttle Position Sensor & Circuit

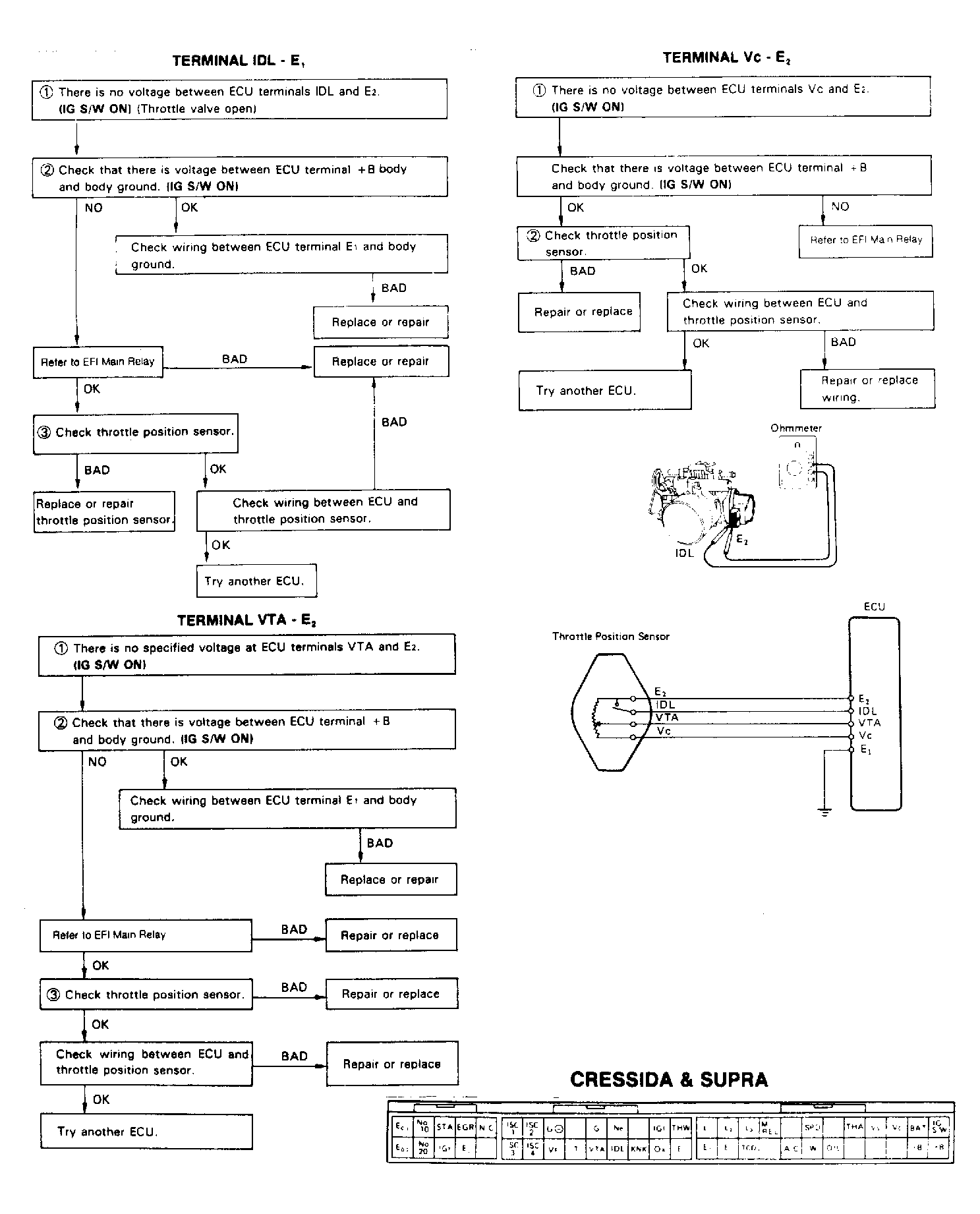

Fig 1: Terminal IDL - E1, Terminal VTA - E2 & Terminal Vc - E2
G48591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

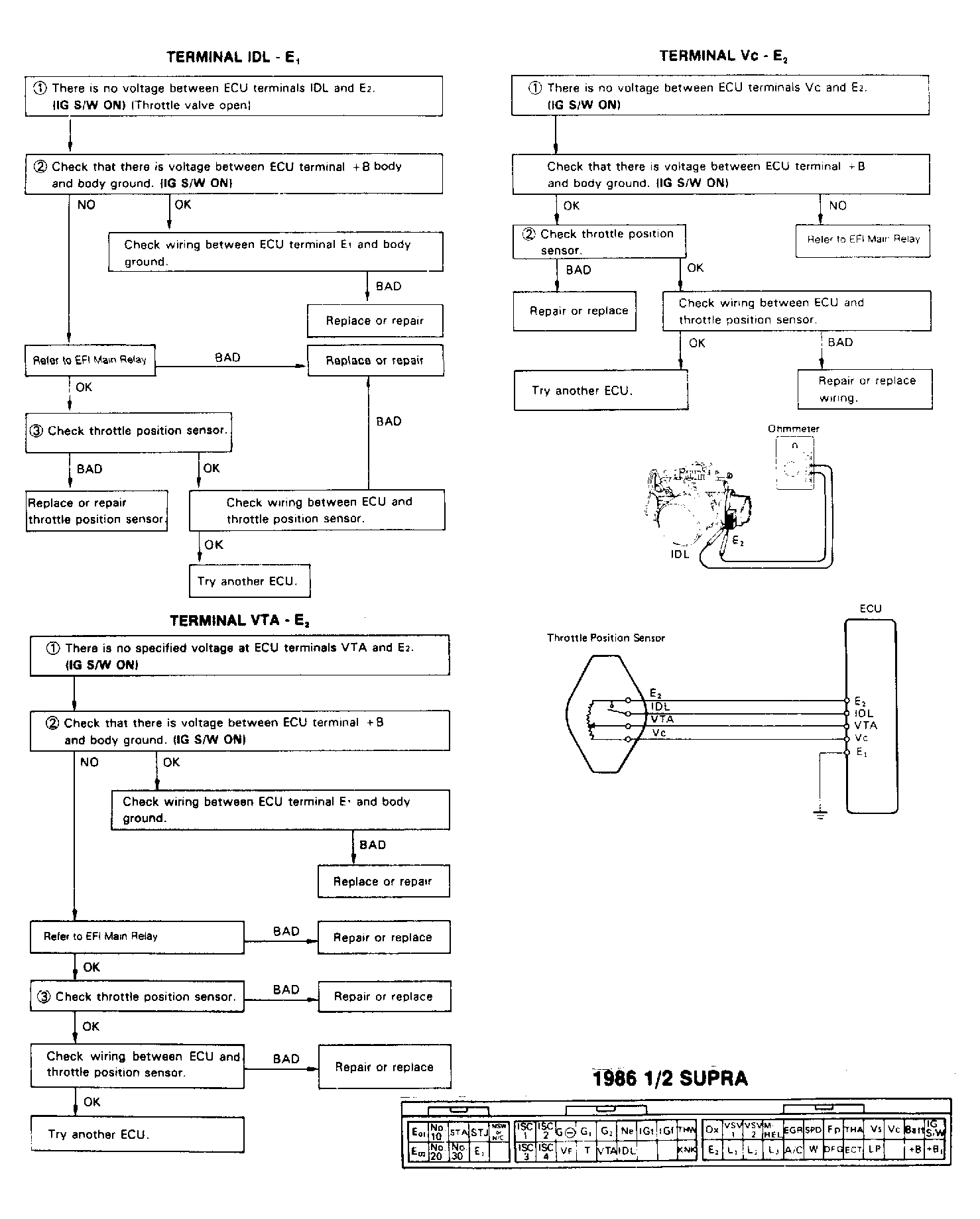

Fig 2: 1986 1/2 Terminal IDL - E1, Terminal VTA - E2 & Terminal Vc - E2
G48592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
