Trouble Code 21 Oxygen Sensor

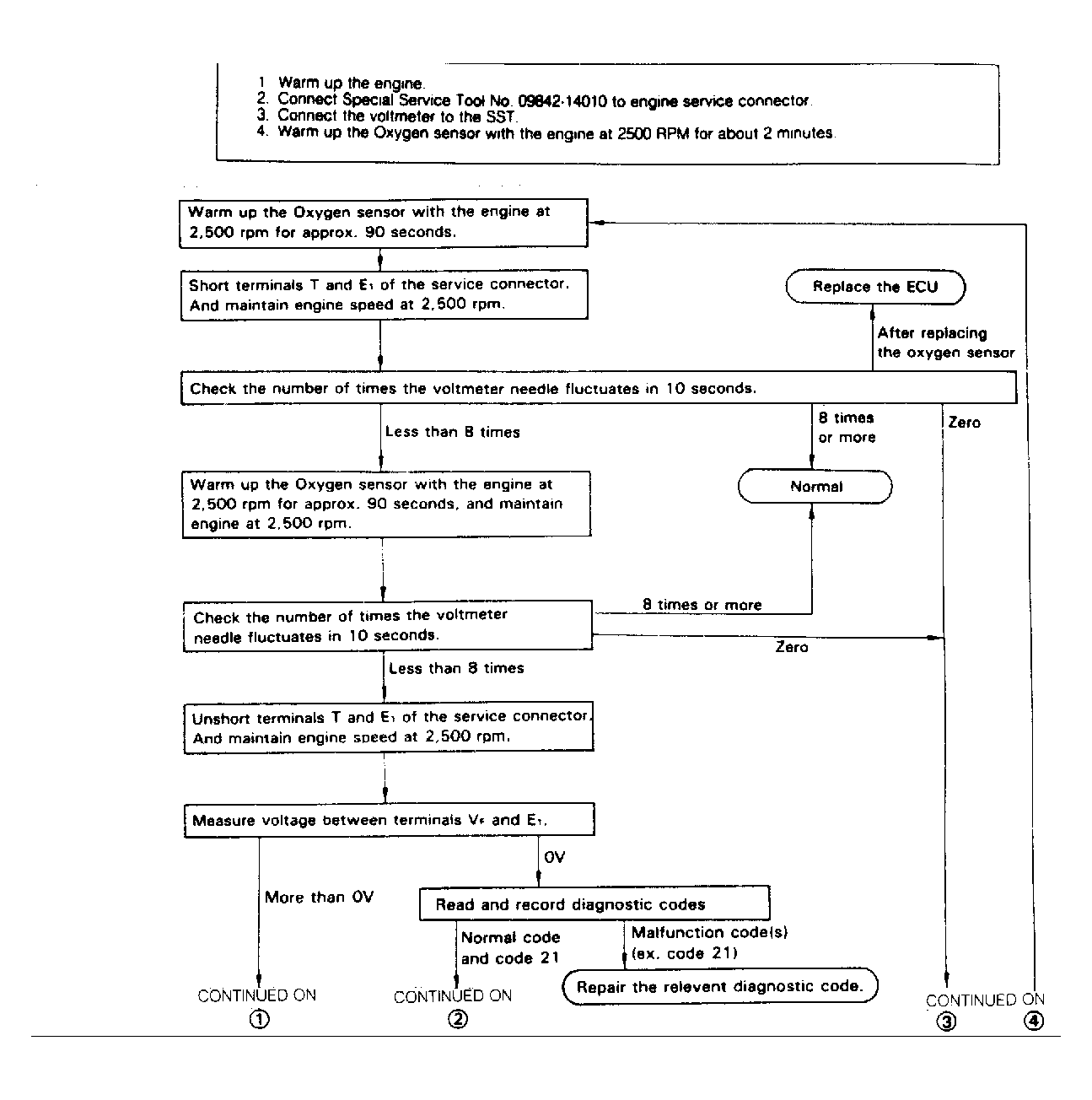

Fig 1: Supra Trouble Code 21, Oxygen Sensor (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Supra Trouble Code 21, Oxygen Sensor (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: 1986 1/2 Supra Trouble Code 21, Oxygen Sensor (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: 1986 1/2 Supra Trouble Code 21, Oxygen Sensor (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
