Blower Switch

Detach multi-pin terminal from blower switch. Use ohmmeter or circuit tester to check for continuity between terminals at different switch positions as noted in continuity chart and corresponding illustrations. If continuity is not as shown, replace blower switch. See Fig 5.

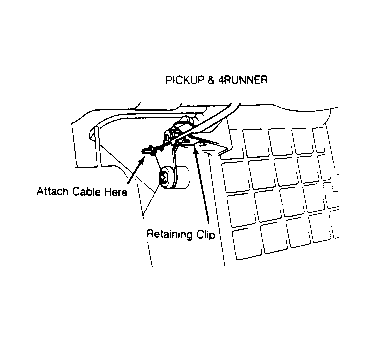

Fig 1: Attaching Air Intake Door Cable

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

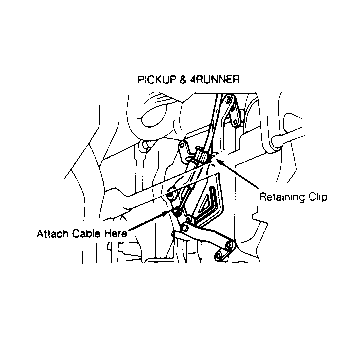

Fig 2: Attaching Mode Door Cable

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

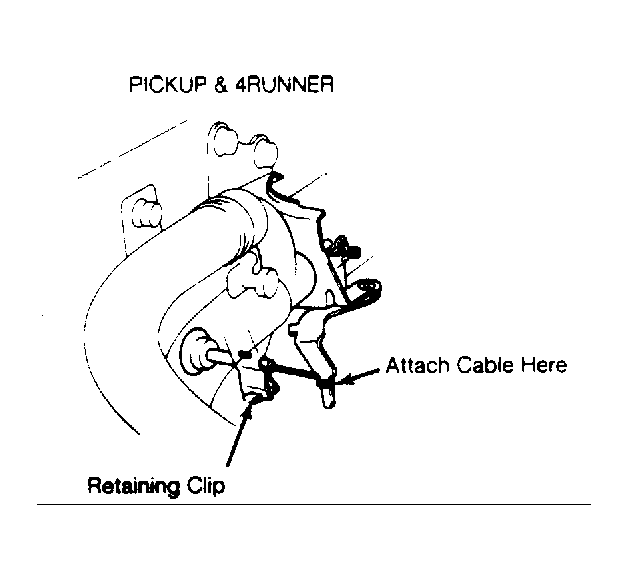

Fig 3: Attaching Air-Mix Door Cable

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

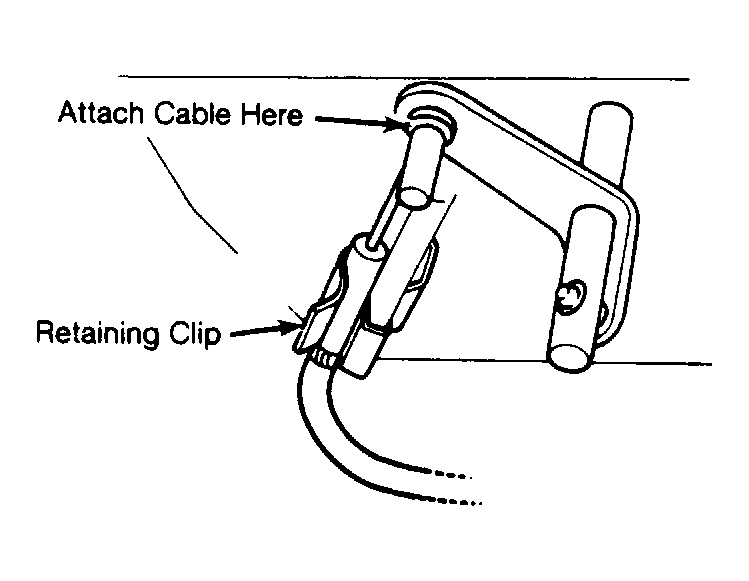

Fig 4: Attaching Heater Water Valve Cable

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

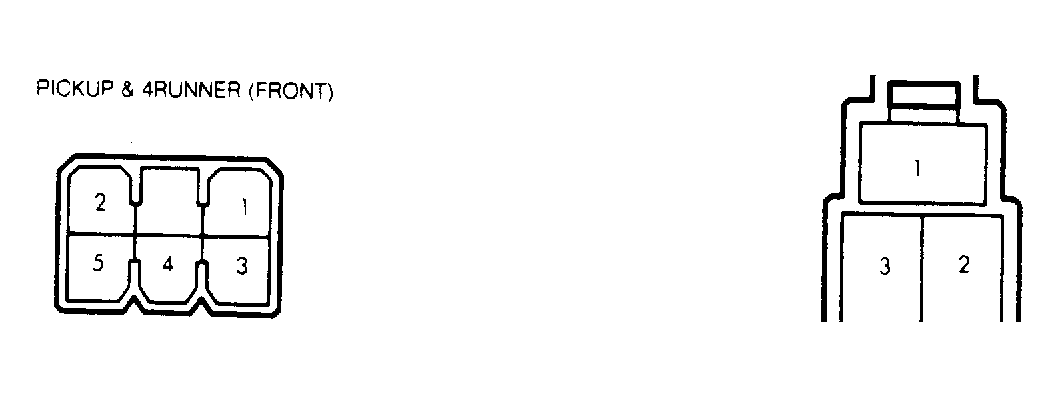

Fig 5: Heater Blower Switch Terminal Locations

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Heater Blower Resistor Terminal Locations

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
