Blower Resistor: Rear

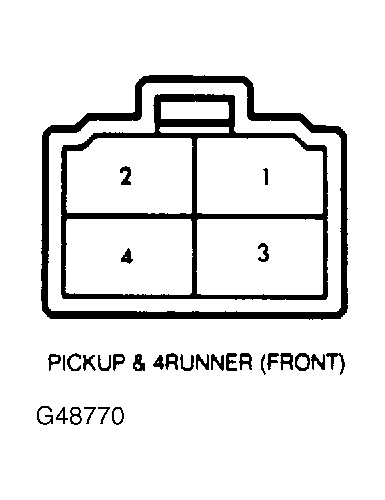

Remove resistor from vehicle, or disconnect wiring in vehicle. With ohmmeter, check continuity. Continuity should exist between terminals "1" and "2". If continuity does not exist as specified, replace resistor. See Figure.
Remove resistor from vehicle, or disconnect wiring in vehicle. With ohmmeter, check continuity. Continuity should exist between terminals "1" and "2". If continuity does not exist as specified, replace resistor. See Figure.
