Trouble Code 2 Airflow Meter & Circuit
Trouble Code 2 Airflow Meter & Circuit

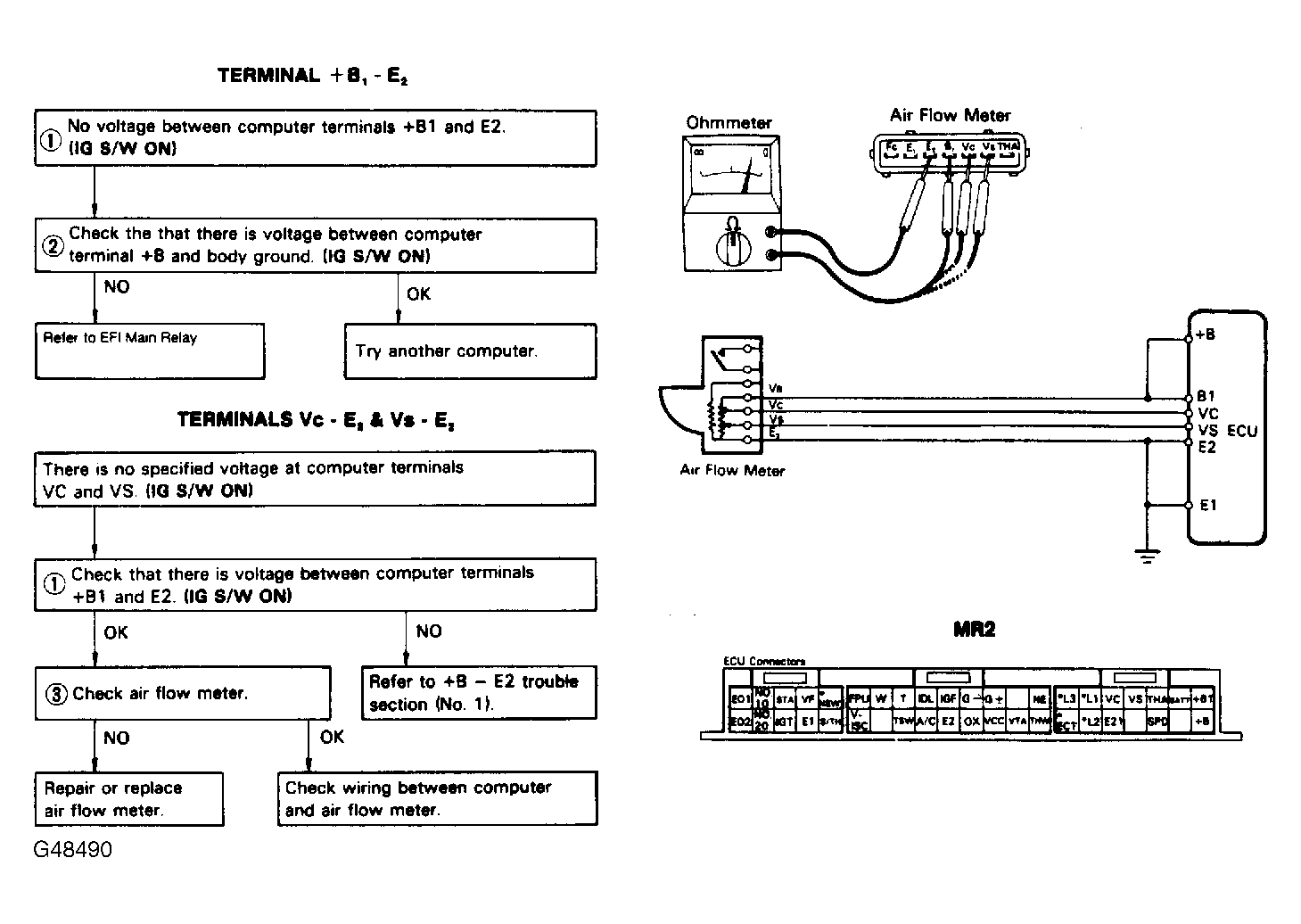

Fig 1: Terminal +B1 -E2 & Terminals Vc - E2 & Vs - E2
