Light Retractor Control Relay

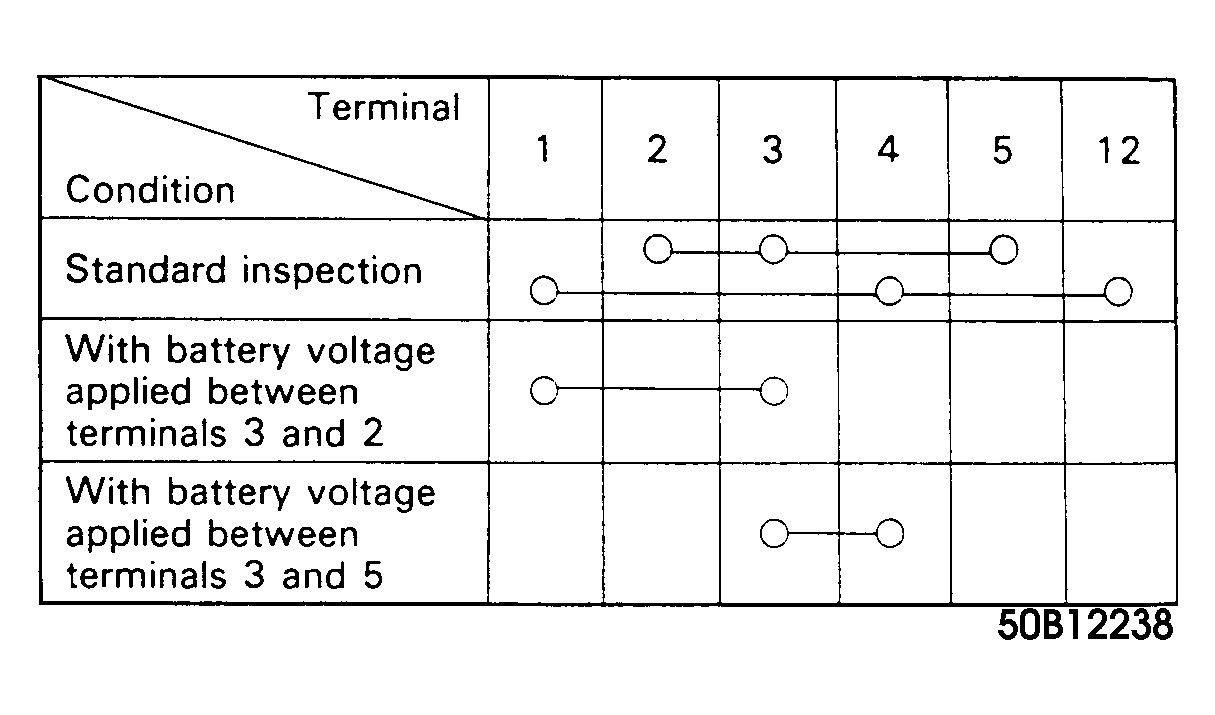

- Inspect relay continuity. If not as specified, replace relay. See 2.

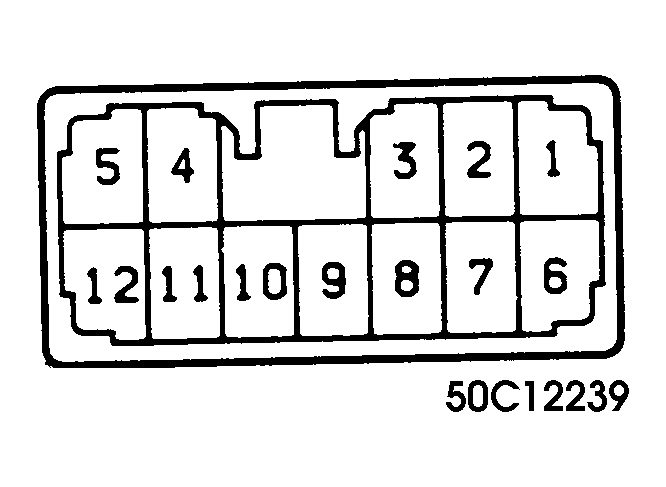

- Inspect relay operation. With light control switch off, connector connected, and terminal 8 grounded, raise headlights with lights lit.
- Quickly ground terminal 6. The light will go out, but headlight will reamain up. When terminal 6 is taken off ground, the headlights will flip down.
- If operation is not as described, replace relay.
