Door Lock Control Relay

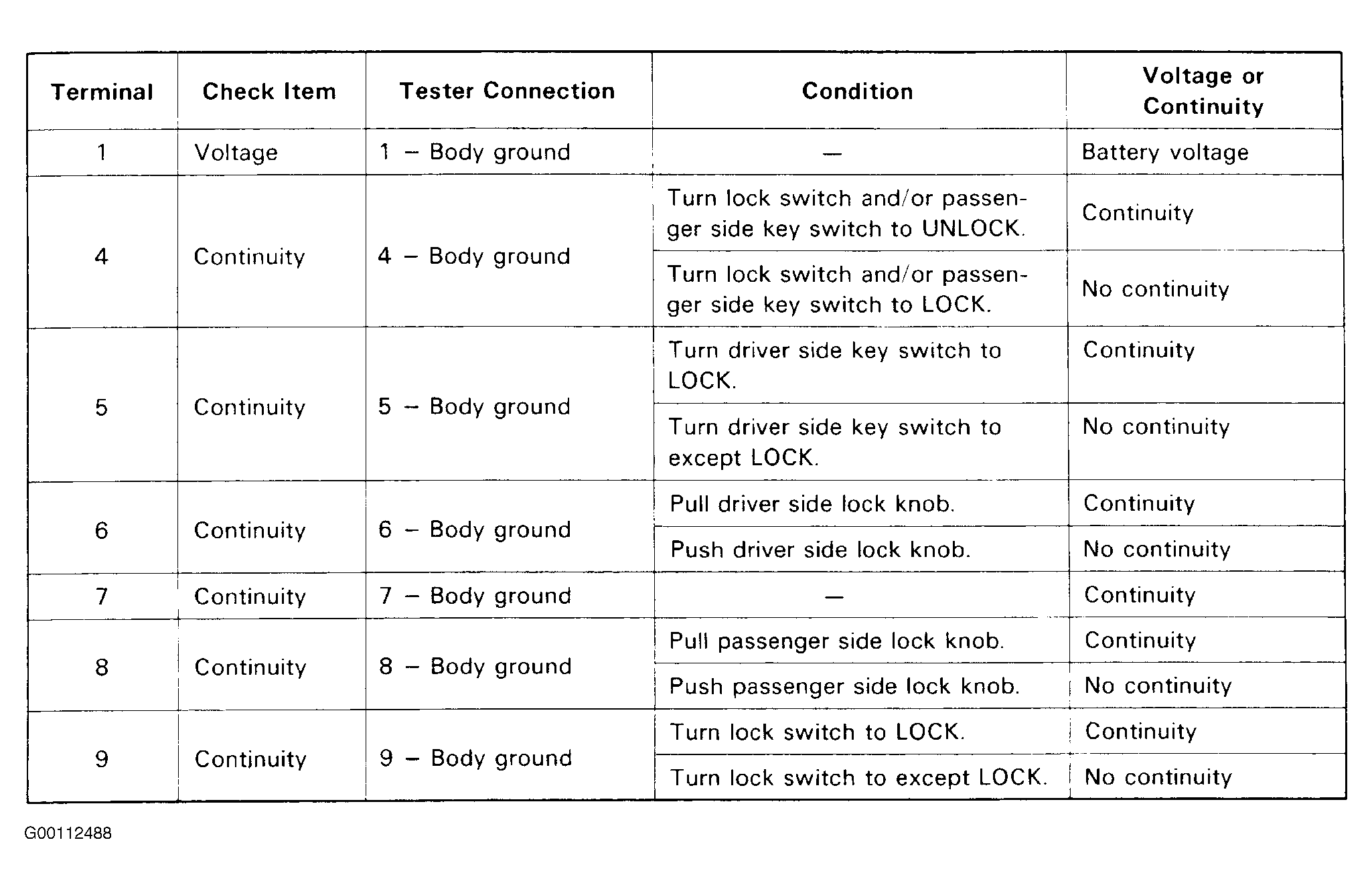

- Disconnect the relay connector and inspect the connector on the wire harness side. See Fig 1 and Fig 2 .
- Apply battery voltage across terminals 2 and 3. Check that the two door lock solenoids operate.
- If circuit operation is correct, replace the relay.
