Connector Identification
Connector Identification

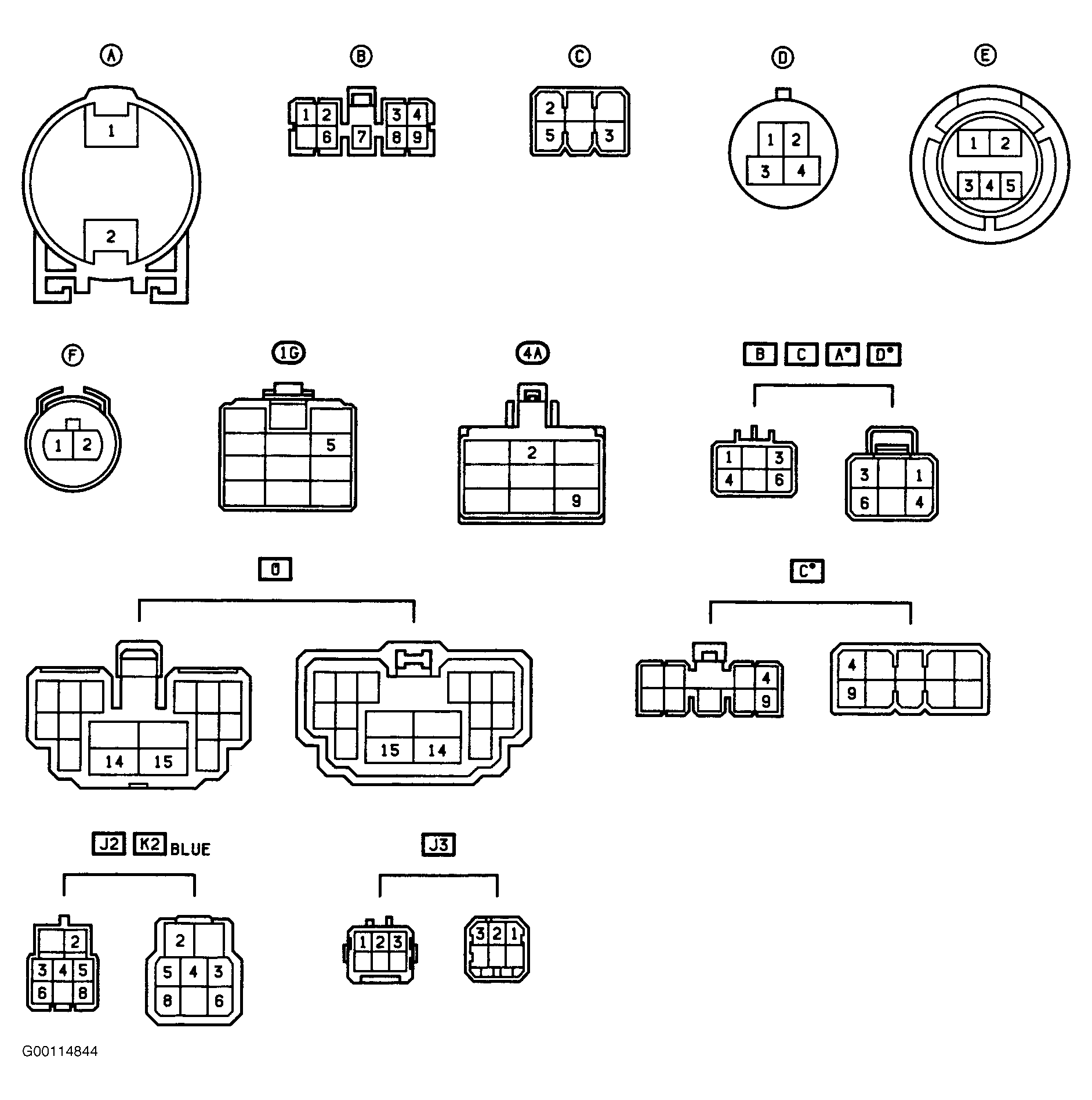

Fig 1: Power Door Lock Connector Identification
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE:

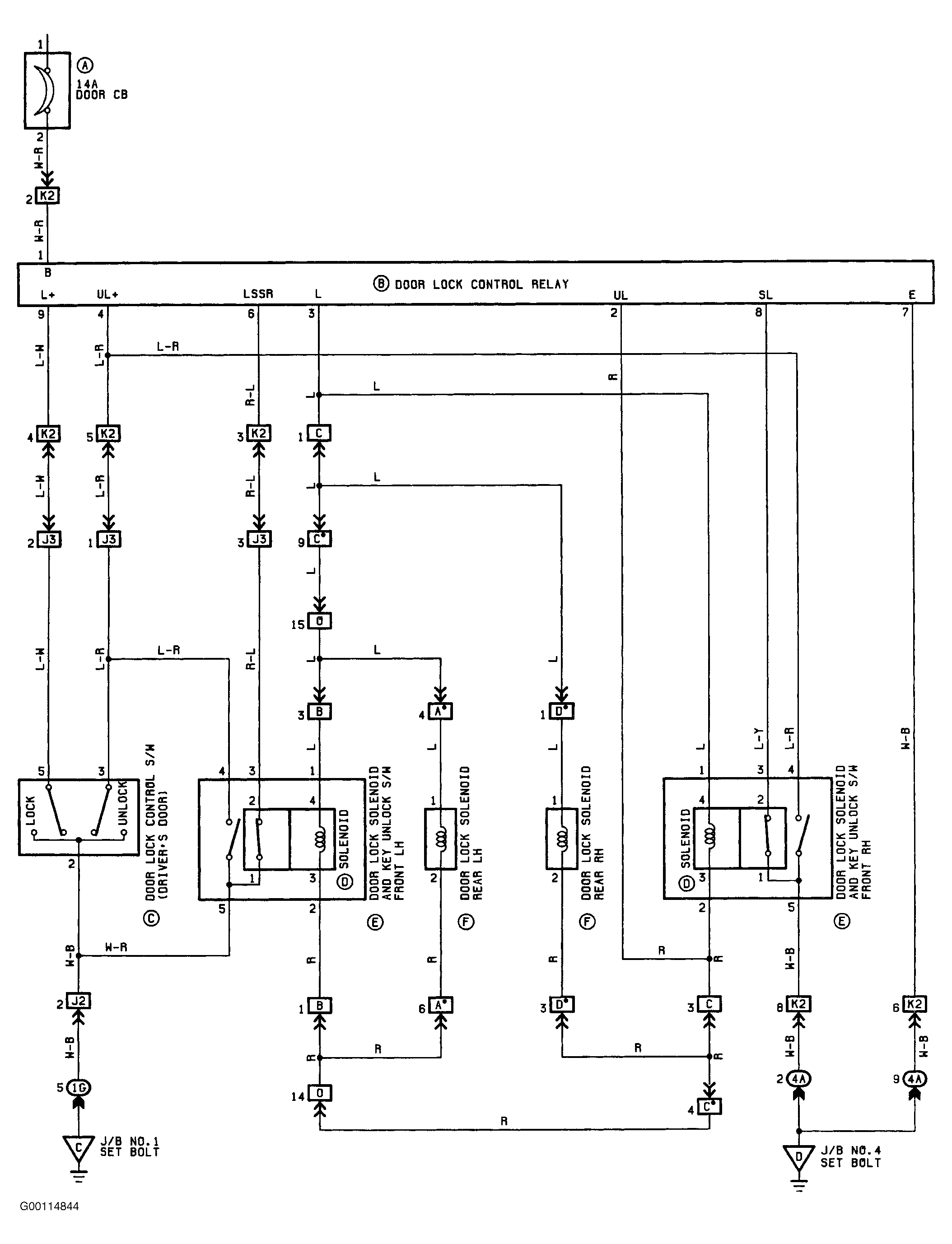

Refer to
Figure
for location of connector in circuit.
