Door Lock Control Switch

Inspect the switch continuity between terminals. See Fig 1and Fig 2 . If continuity is not as specified, replace the switch.

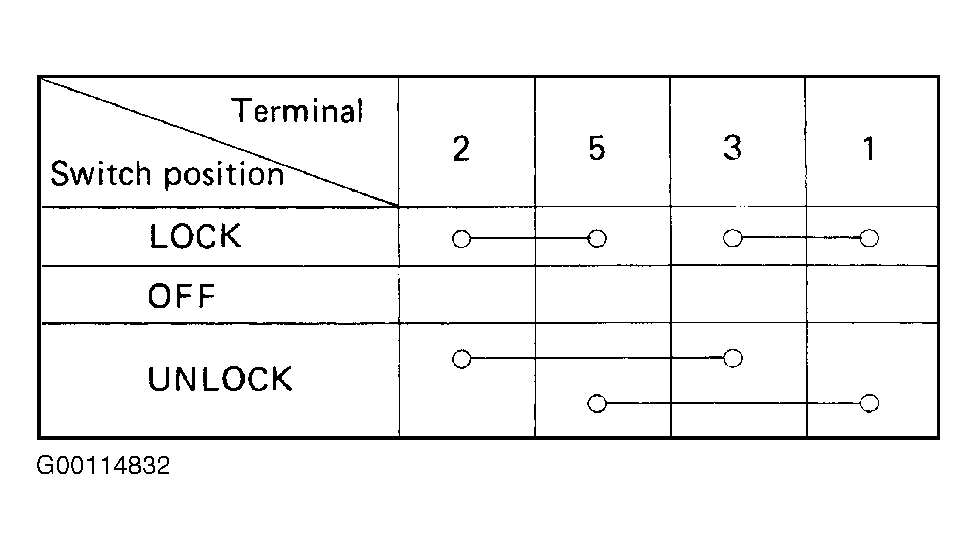

Fig 1: Testing Door Lock Control Switch Continuity

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

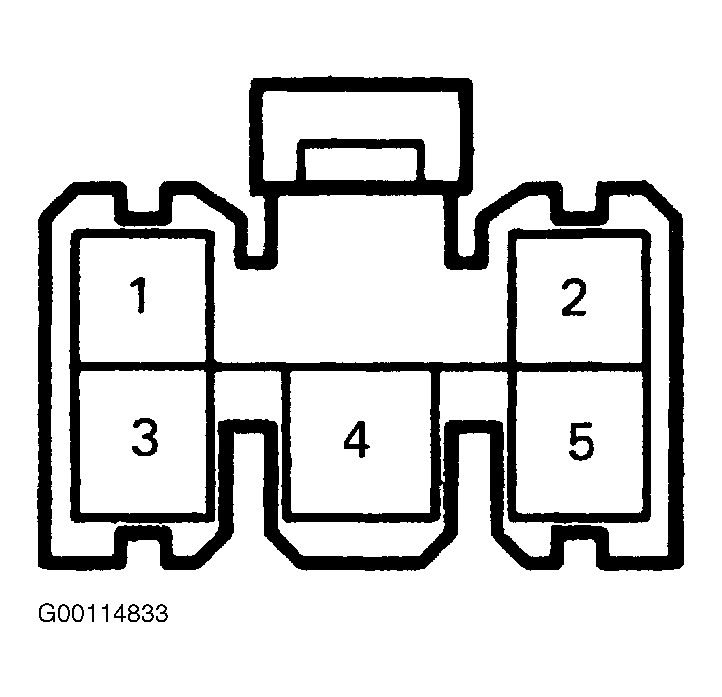

Fig 2: Identifying Door Lock Control Switch Harness Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
