Component Locations

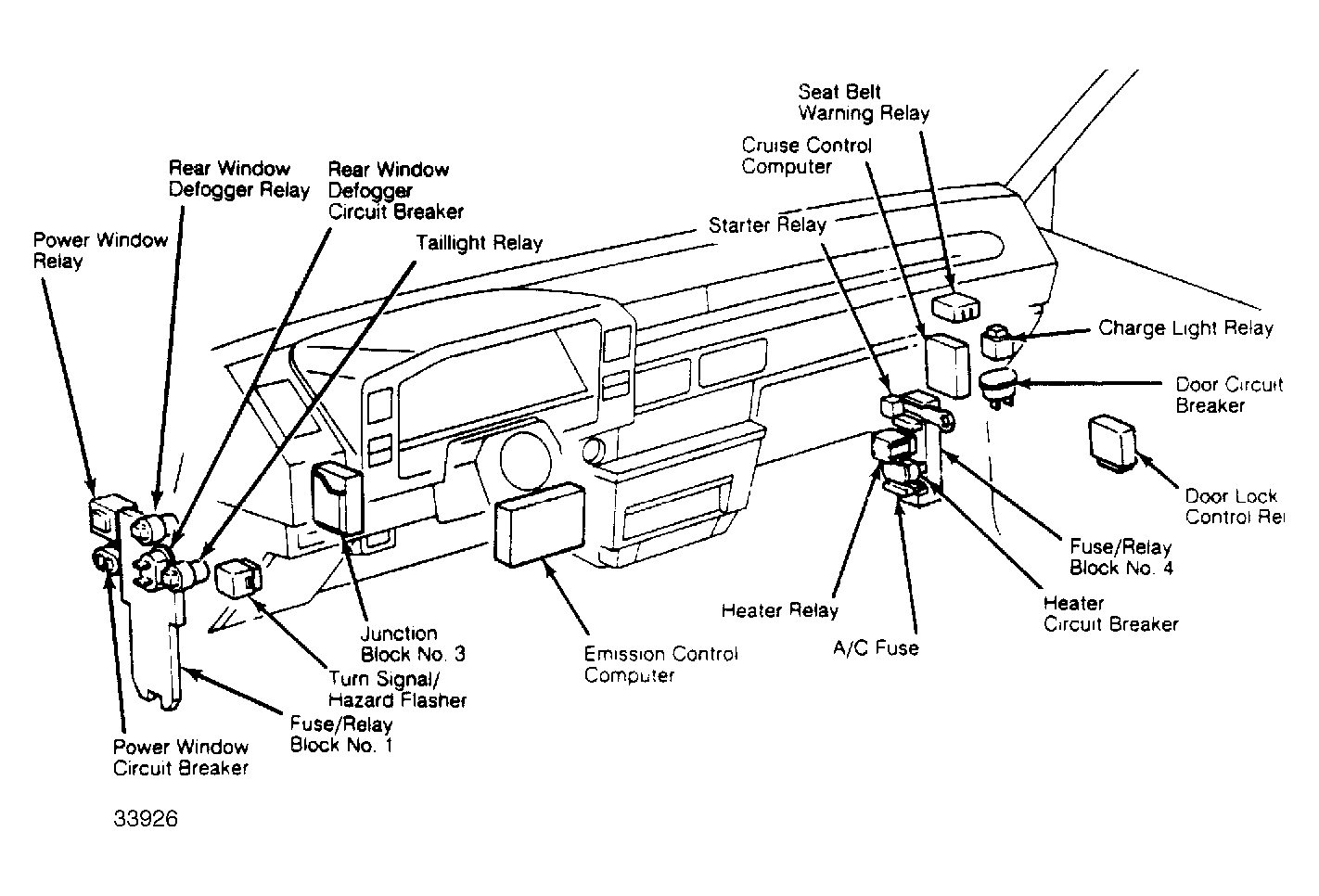

For component locations, refer to illustrations. See Fig 2 and Fig 3 .

NOTE: Fuse/Relay Block No. 1 is also known as Junction Block No. 1.Junction Block No. 4 is behind passenger side kick panel.

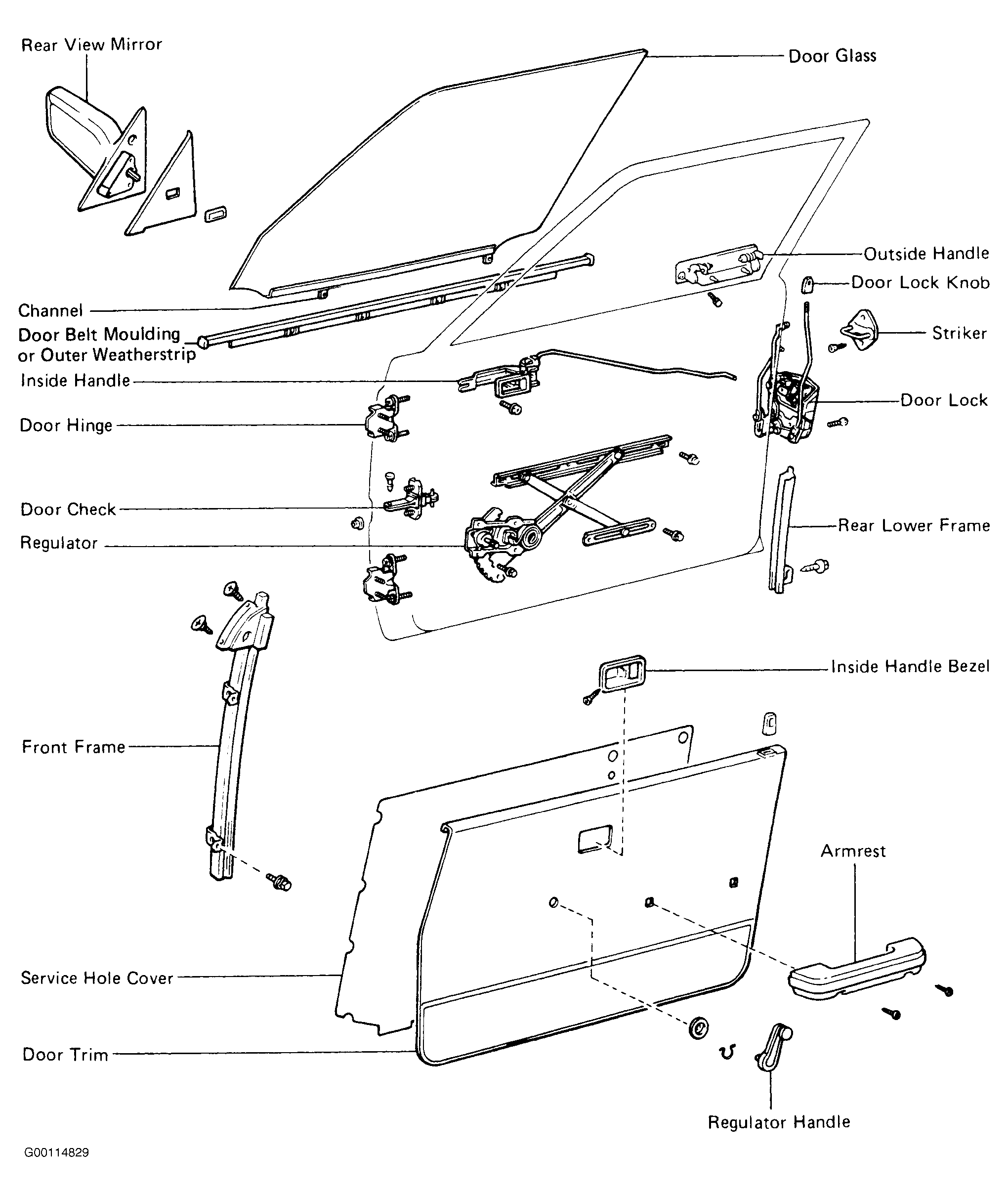

Fig 1: Exploded View Of Front Door Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Exploded View Of Front Door Components

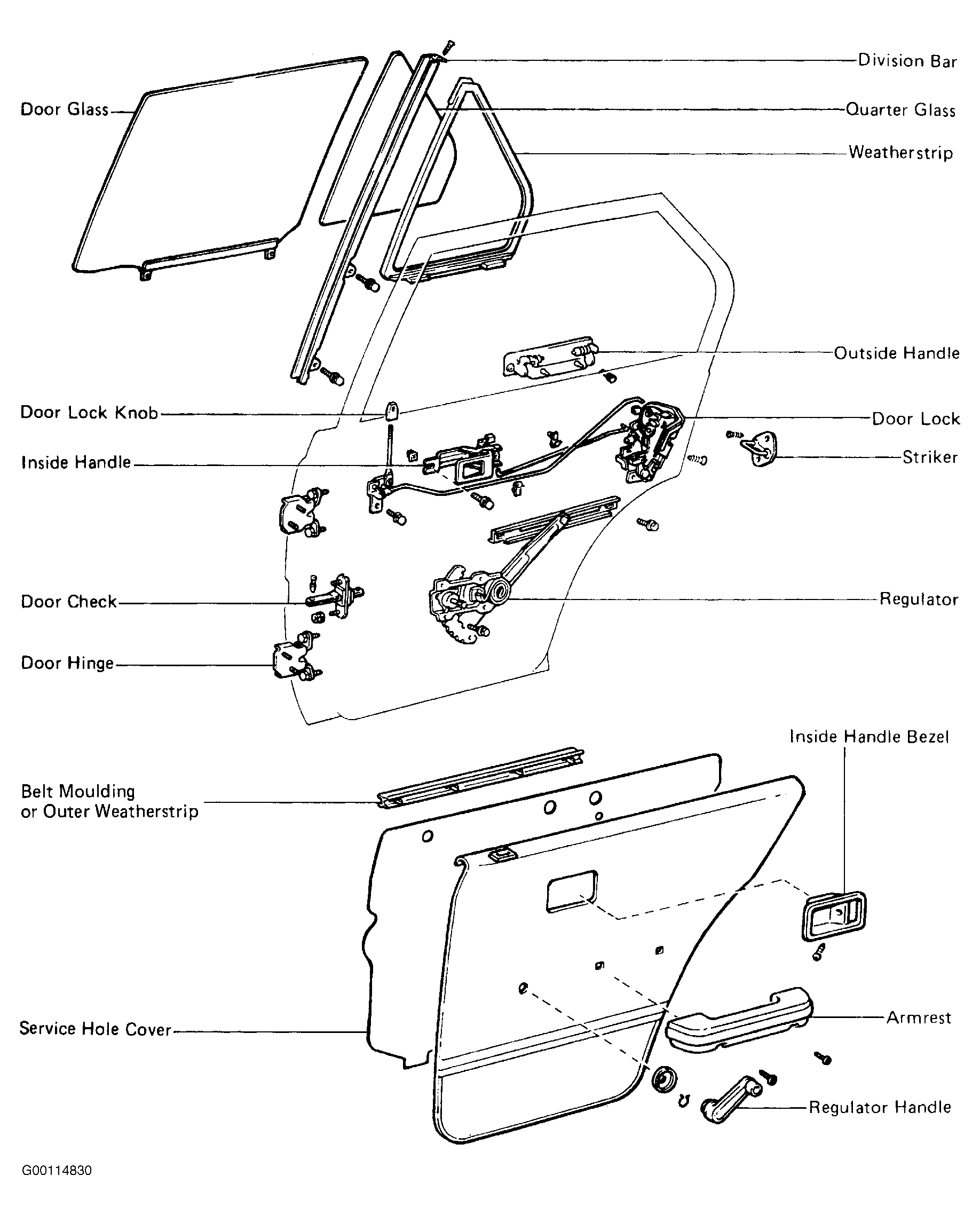

Fig 3: Exploded View Of Rear Door Components
