Toyota
>>
1986
>>
Corolla LE, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
TCCS System (RWD)
>>
Diagnosis & Testing
>>
Injector Circuits Check
Injector Circuits Check

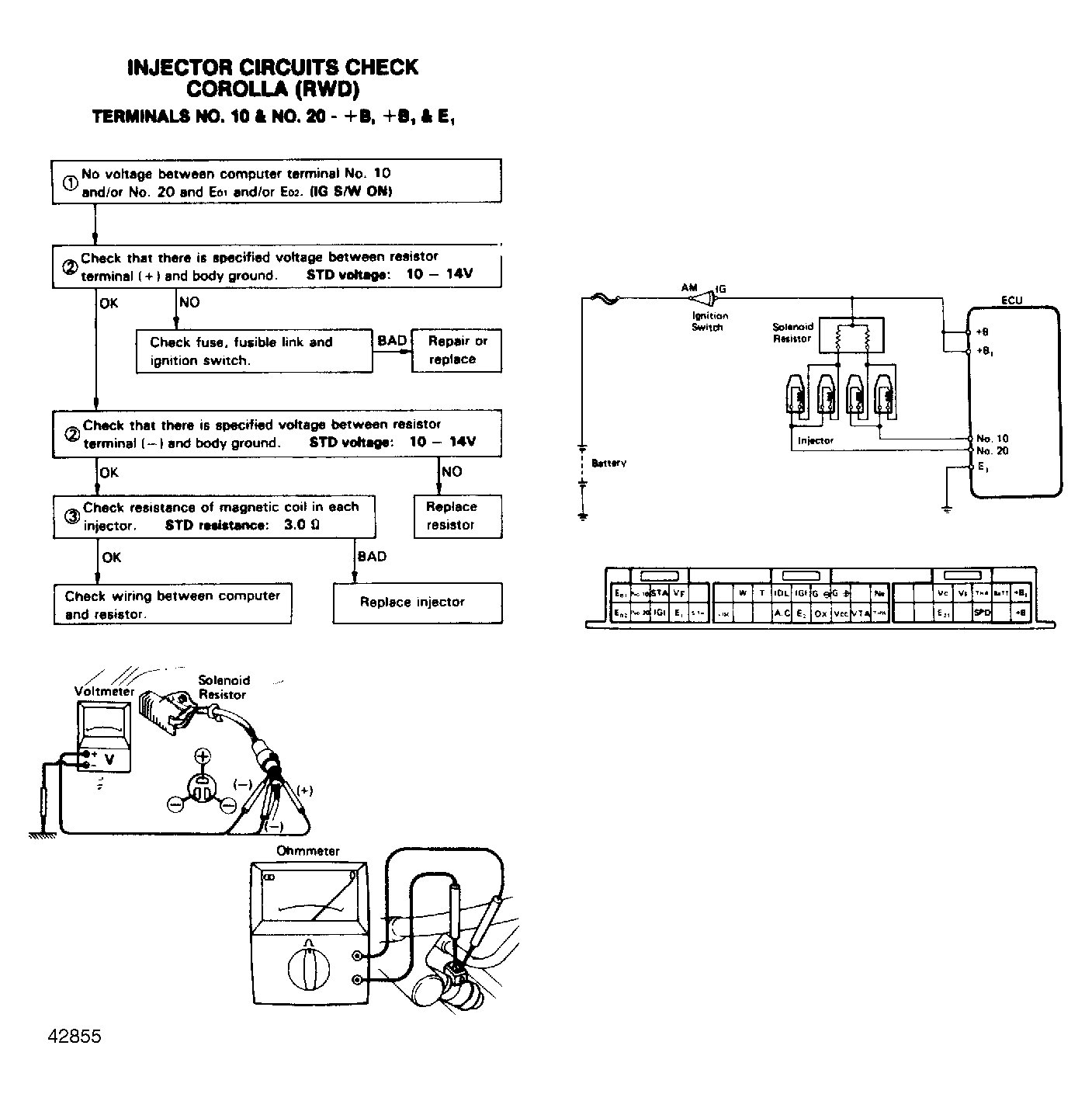

Fig 1: Terminals No. 10 & No. 20 - +B, +B1 & E1
