Home >> Toyota >> 1986 >> Corolla LE, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Feedback Carburetor System >> Wiring Diagrams

Wiring Diagrams

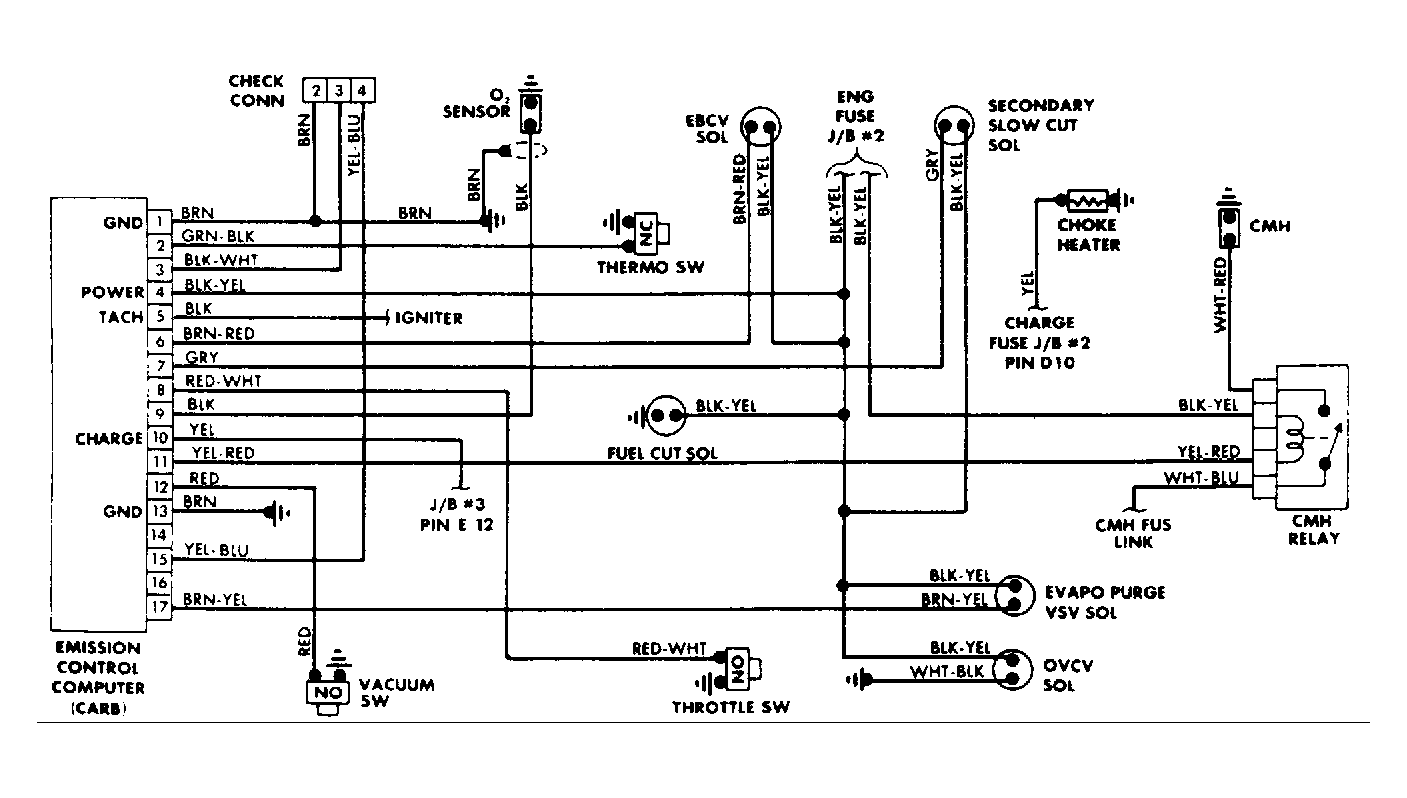

Fig 1: Corolla FWD Computer Controlled Emission System
G61929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

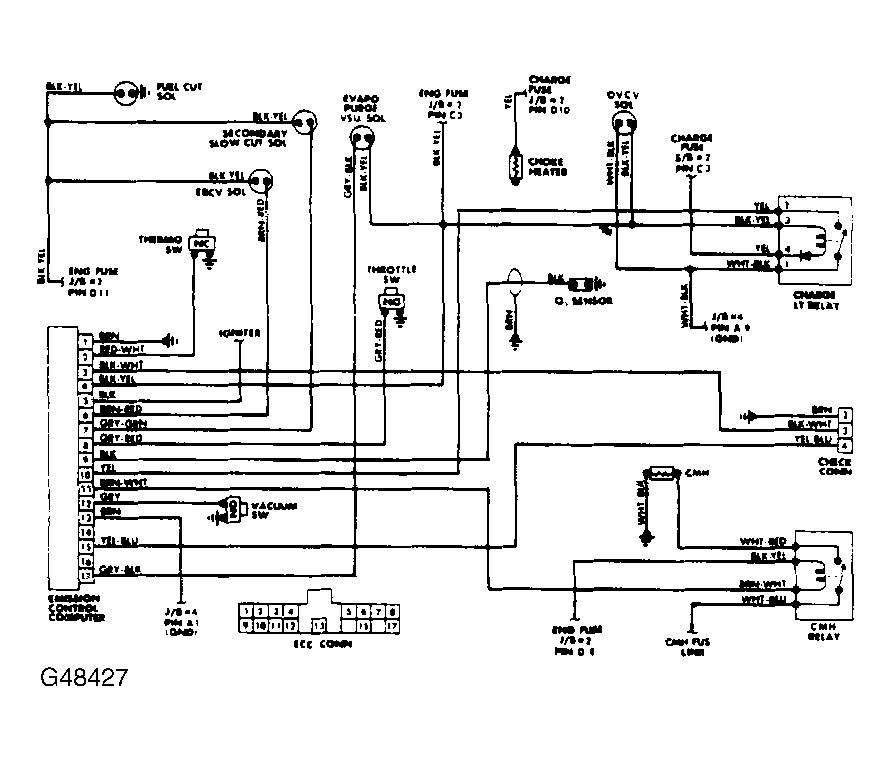

Fig 2: Corolla RWD Computer Controlled Emission System
G48427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
