Trouble Code 6 Igniter & Circuit
Trouble Code 6 Igniter & Circuit

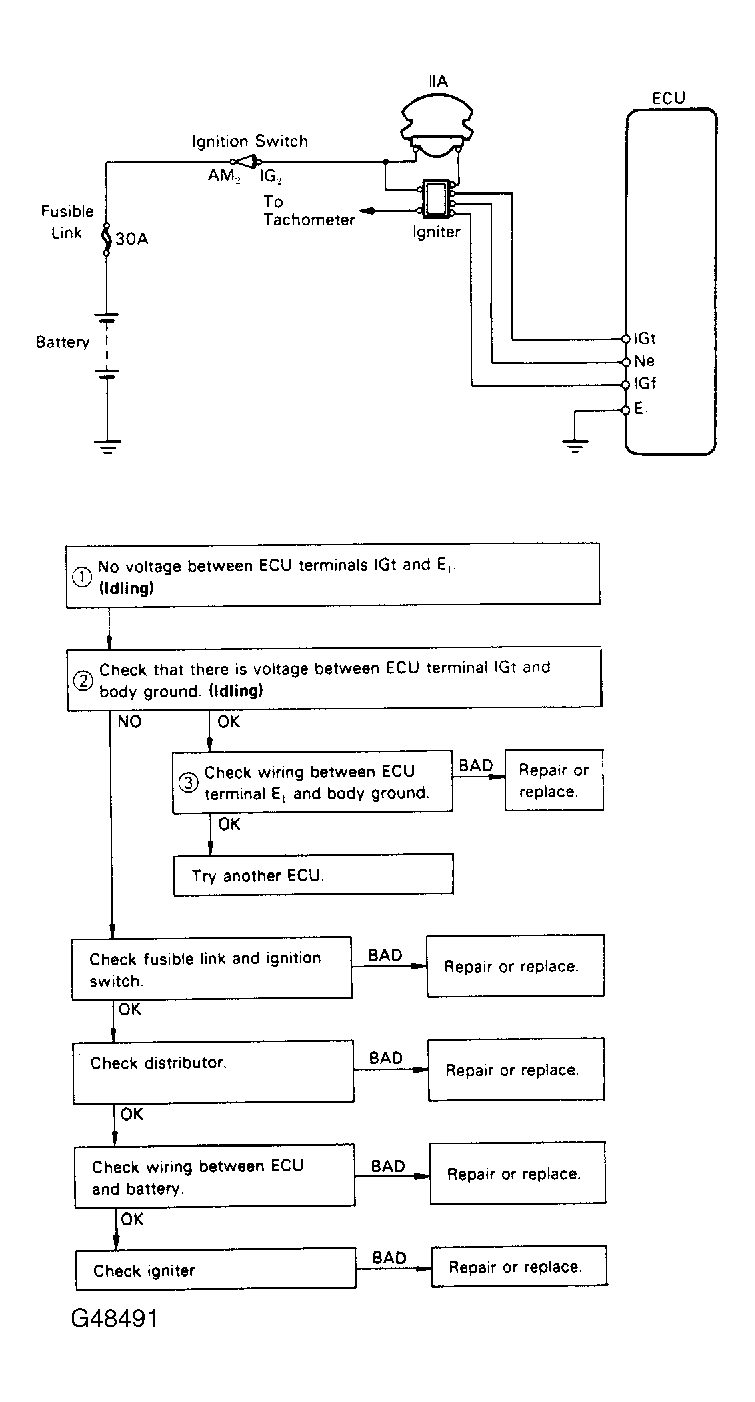

Fig 1: Terminals IGt & E1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
