Trouble Code 43 Ignition & Starter Circuits

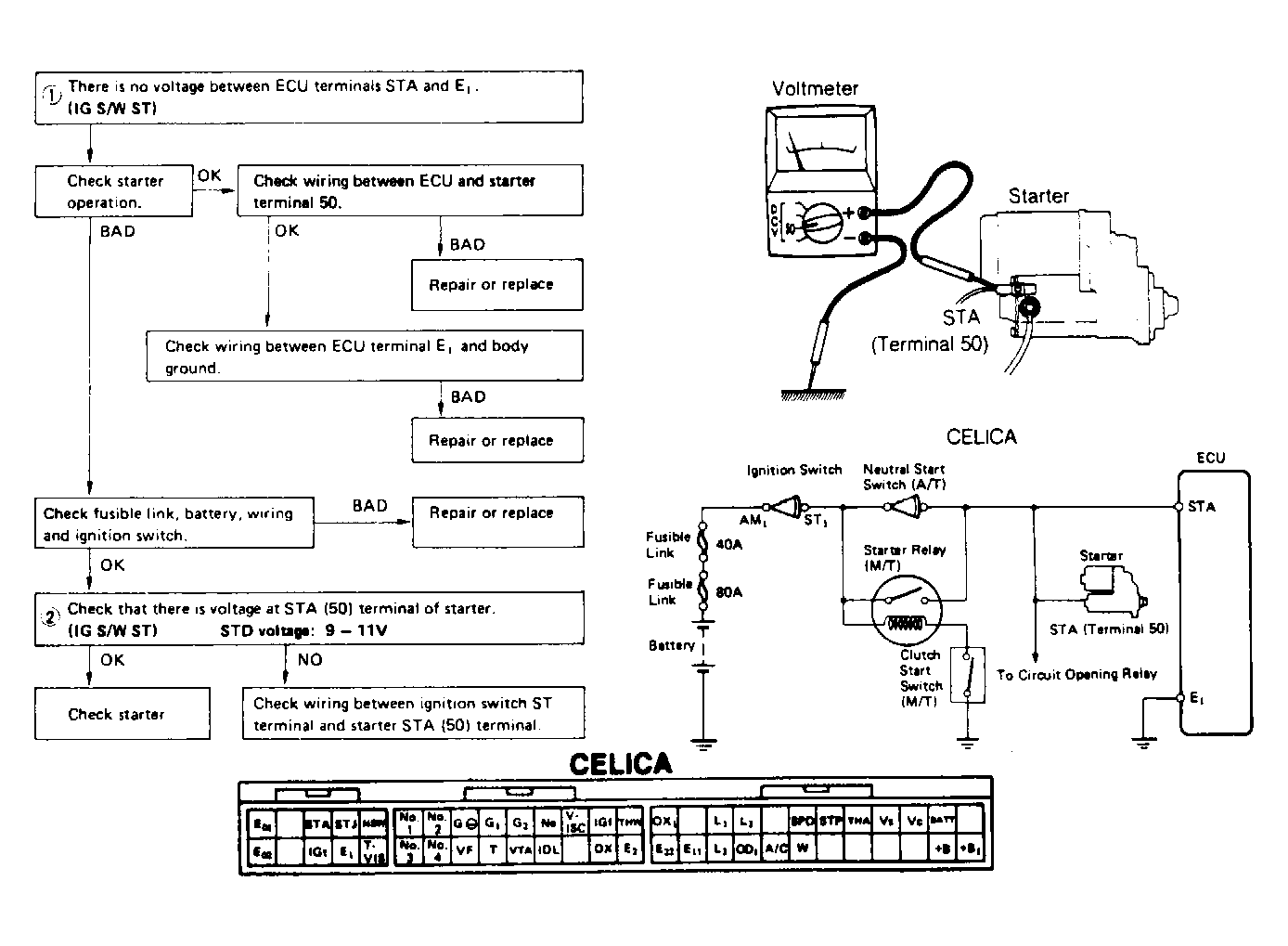

Fig 1: Celica (3S-GE) Terminals STA & E1

G48599

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
