Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location | |
|---|---|---|
| A/C Idle Stabilizer Amplifier | Attached to bottom of evaporator housing. | |
| A/C Cut Amplifier (Diesel) | Behind center of dash, right of radio. | |
| A/C Thermistor | On left side of evaporator housing. | |
| Airflow Meter (Gas) | Beside front left shock tower. See Figure. | |
| Blower Resistor | Behind glove box, on bottom of blower motor. | |

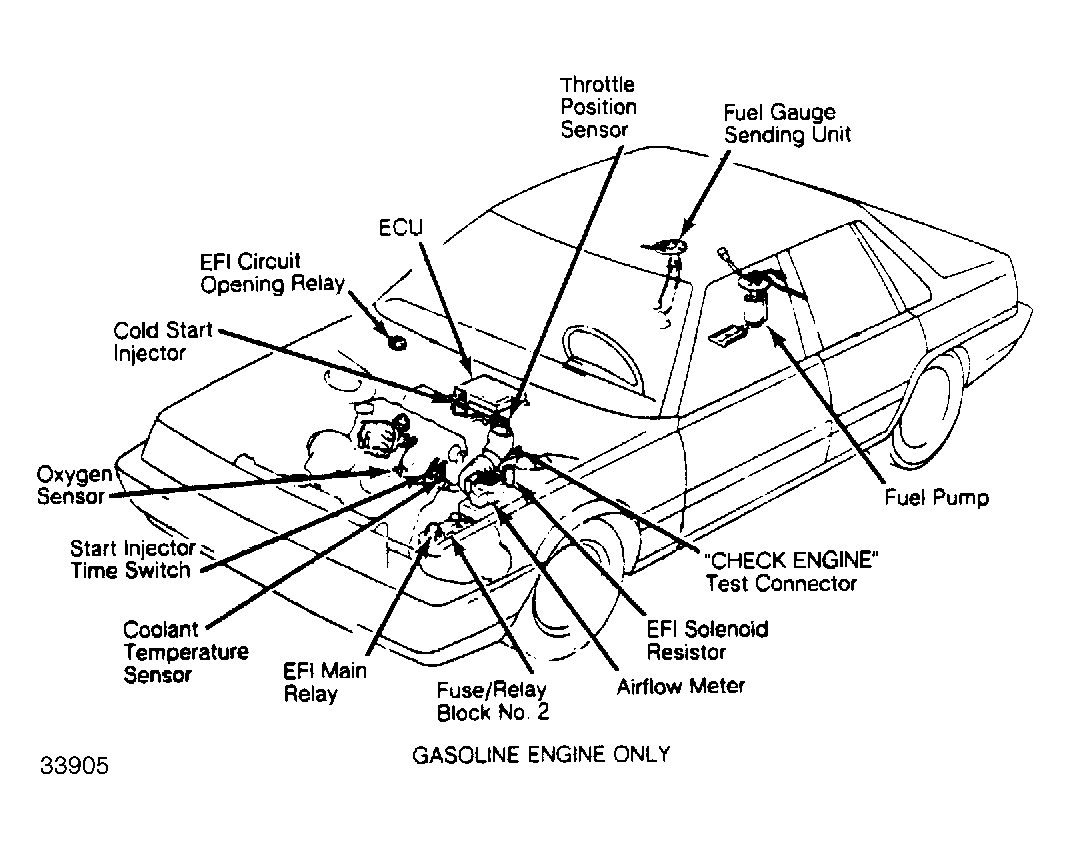

| "CHECK ENGINE" Test Connector | On front left shock tower. See Figure. | |
| Circuit Breakers | ||
| Heater | On fuse/relay block No. 4. See Figure. | |
| Power Window | On the right side of fuse/relay block No. 1. See Figure. | |
| Door Lock | Above fuse/relay block No. 4. | |
| Rear Window Defogger | On fuse/relay block No. 1. See Figure. | |
| Cold Start Injector (Gas) | Rear center of engine, right of throttle body. See Figure. | |

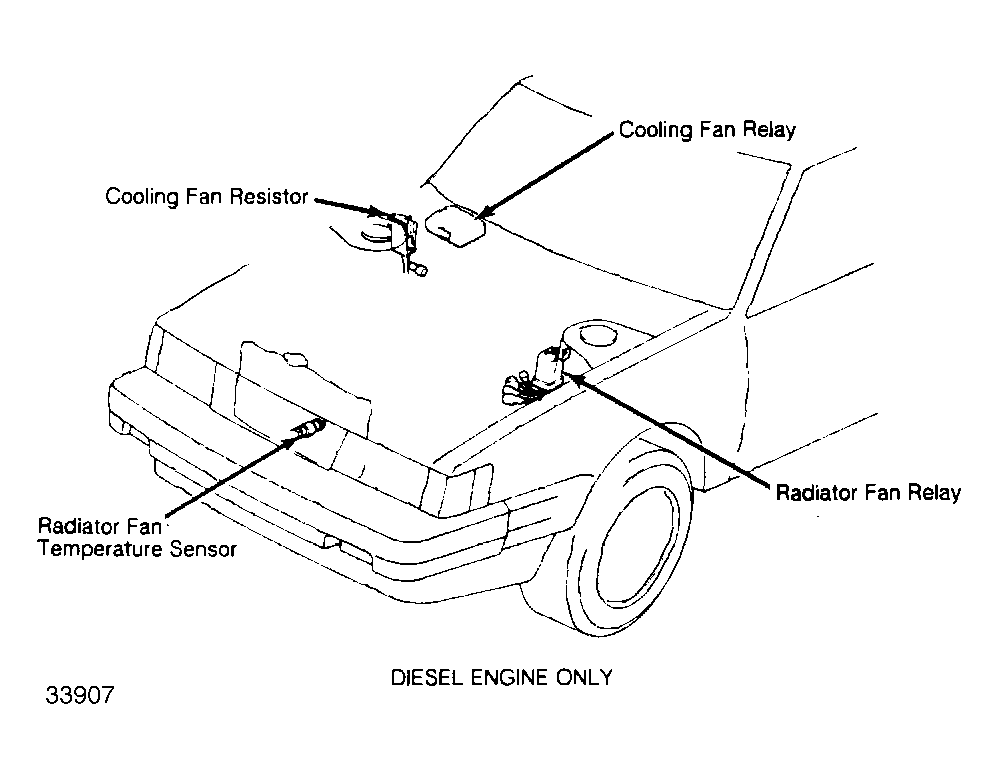

| Cooling Fan Resistor (Diesel) | Behind front right shock tower. See Figure. | |
| Cruise Control Actuator | In front of right shock tower. See Figure. | |
| EFI Solenoid Resistor (Gas) | On front of left shock tower. See Figure. | |
| Fuel Heater (Diesel) | Rear left side of engine compartment. | |

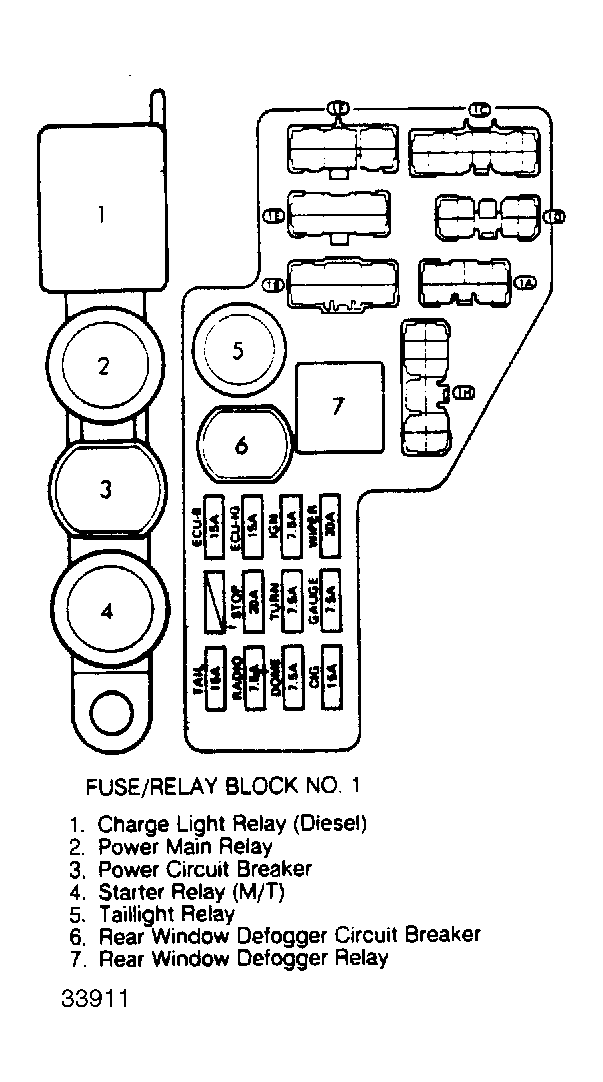

| Fuse/Relay Block No. 1 | Behind left kick panel. See Figure & Figure . | |
| Fuse/Relay Block No. 2 (Diesel) | On right side of battery. | |

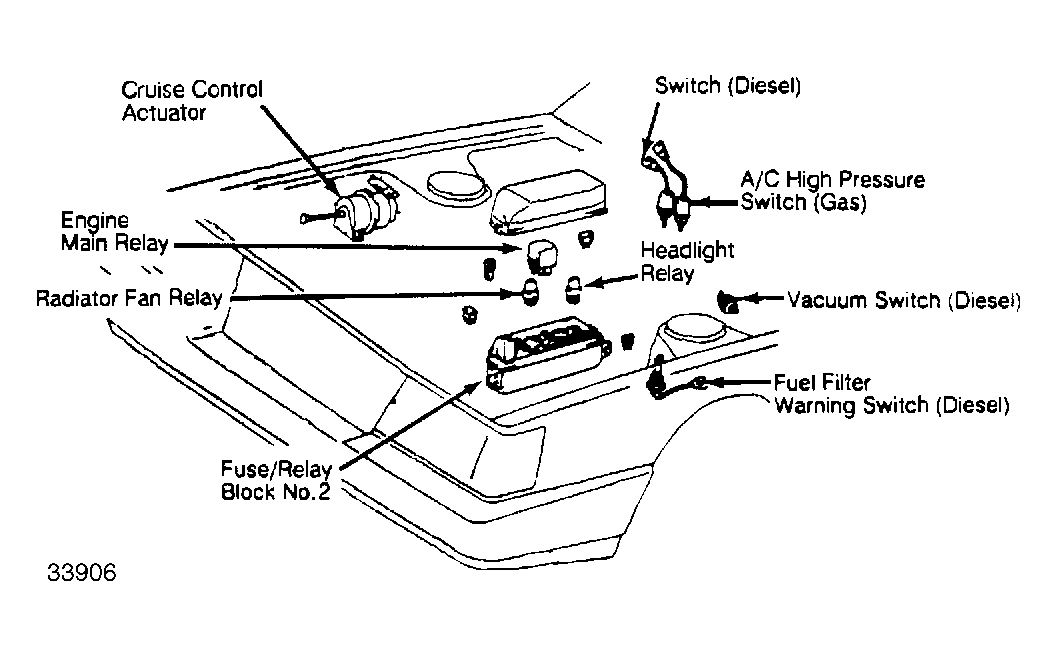

| Fuse/Relay Block No. 2 (Gas) | On left side of battery. See Figure & Figure . | |
| Fuse/Relay Block No. 4 | Behind right kick panel. See Figure. | |
| Fusible Links (Diesel) | On front right fender apron. | |
| Fusible Links (Gas) | On the positive terminal of the battery. | |

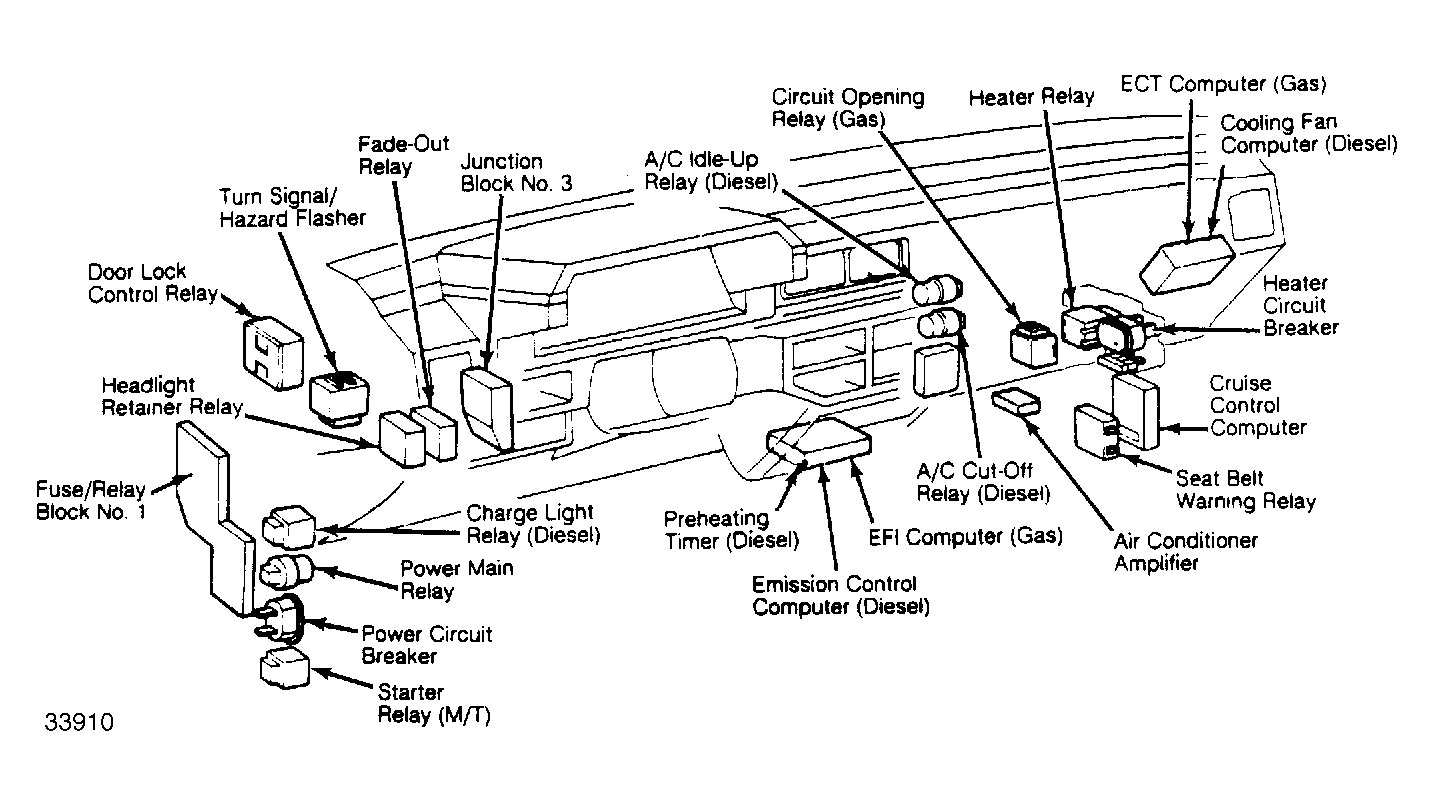

| Junction Block No. 3 | Behind left side of instrument panel. See Figure. | |
