Trouble Code 10 Main Relay & Circuit

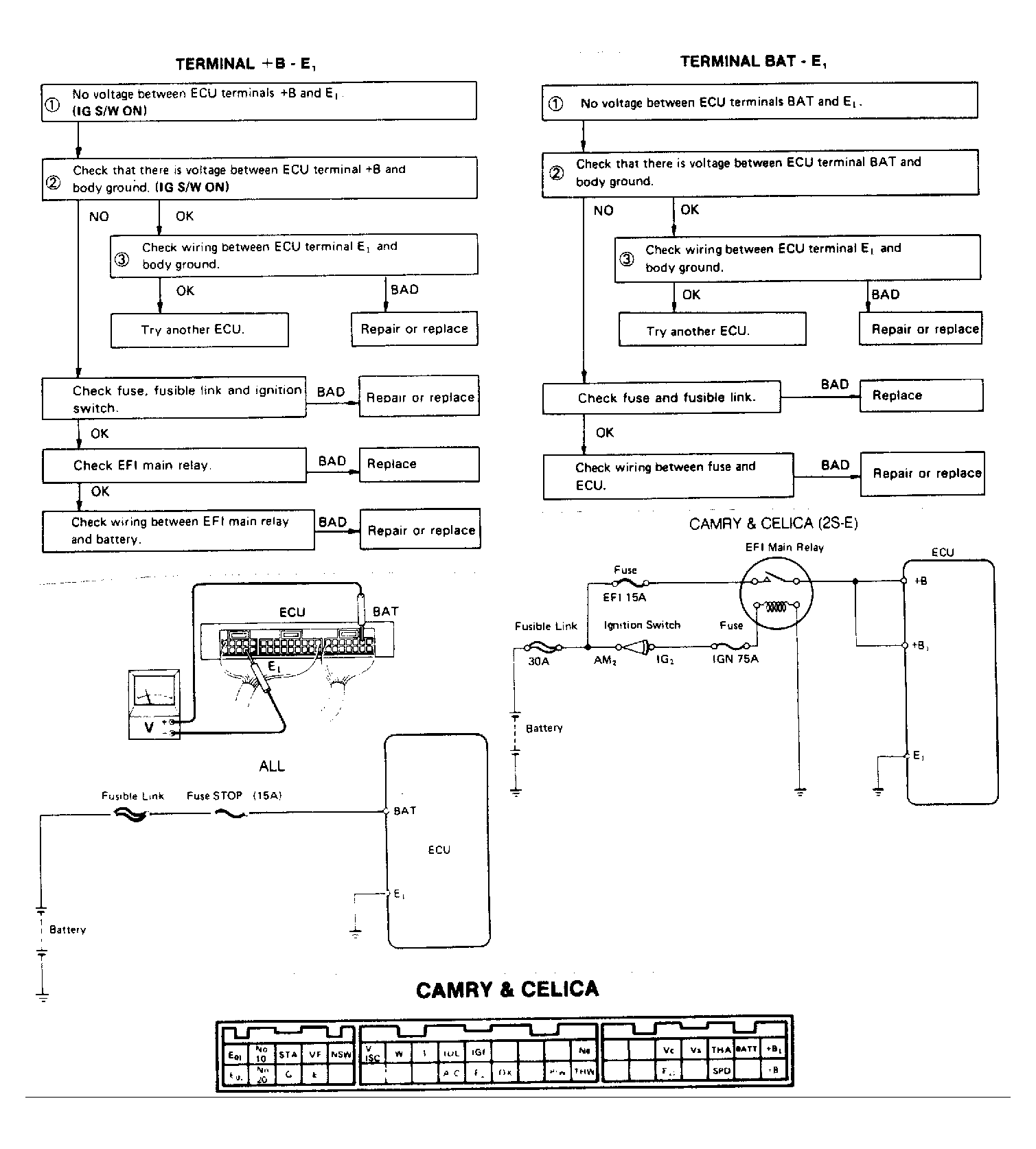

Fig 1: Terminal +B - E1 & Terminal BAT - E1

G48545

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
