Rear Wiper Switch: 4Runner

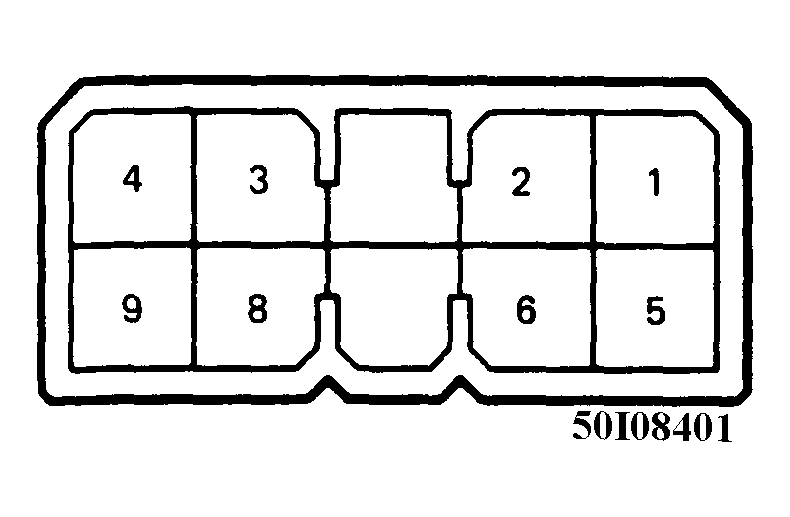

Inspect continuity between terminals for each switch position shown in REAR WIPER SWITCH TABLE below. If continuity is not as specified, replace switch or bulb and retest.
REAR WIPER SWITCH
| Switch Postition | Continuity Between Terminals | ||
|---|---|---|---|
| OFF | (1) 1 & 2, 3 & 5, 6 & 9 | ||
| ON | (1) 1 & 2, 8 & 9 | ||
| WASHER | (1) 1 & 2, 4, 8 & 9 | ||
|
|||
