All Other Models

Disconnect switch connector. Connect an ohmmeter between terminals and adjust switch to the point where there is continuity between terminals. Tighten screws and connect switch connector.

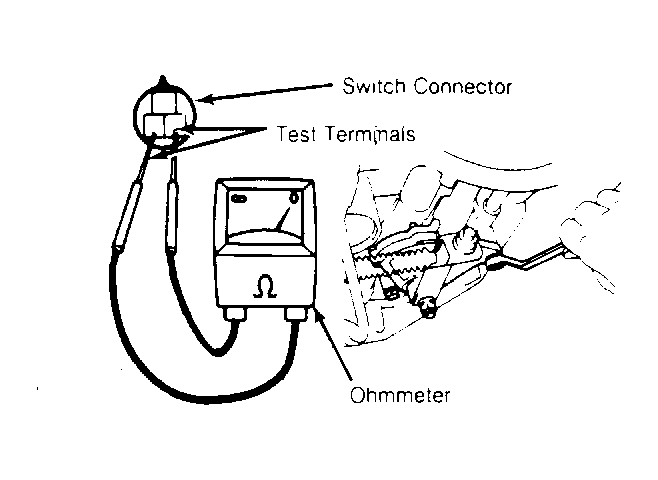

Fig 1: Neutral Safety Switch Test Terminals
G82749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
