Wiring Diagrams

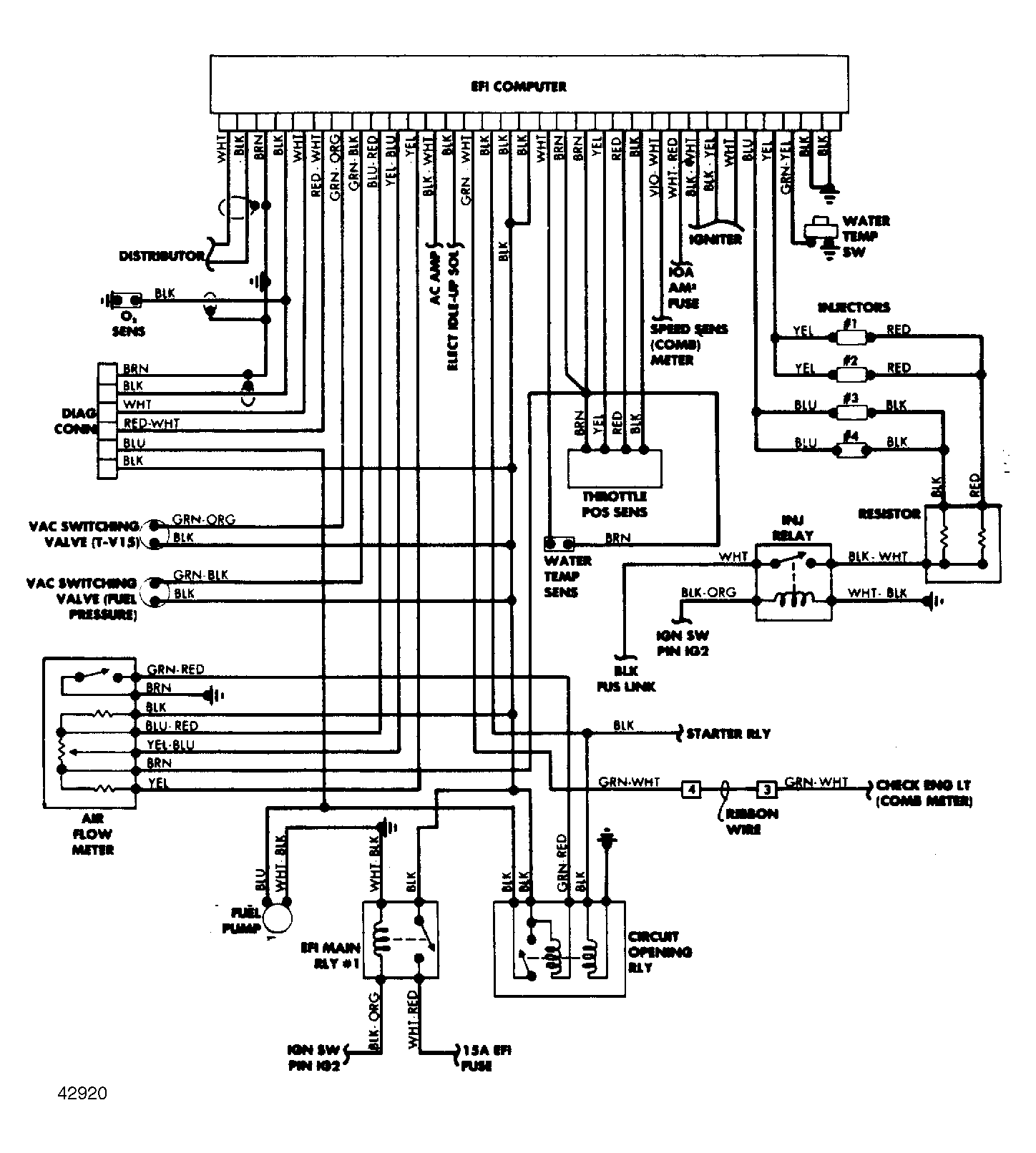

Fig 1: MR2 TCCS Wiring Diagram

G42920

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
