Trouble Code 3 Blinks IGNITOR & Circuit

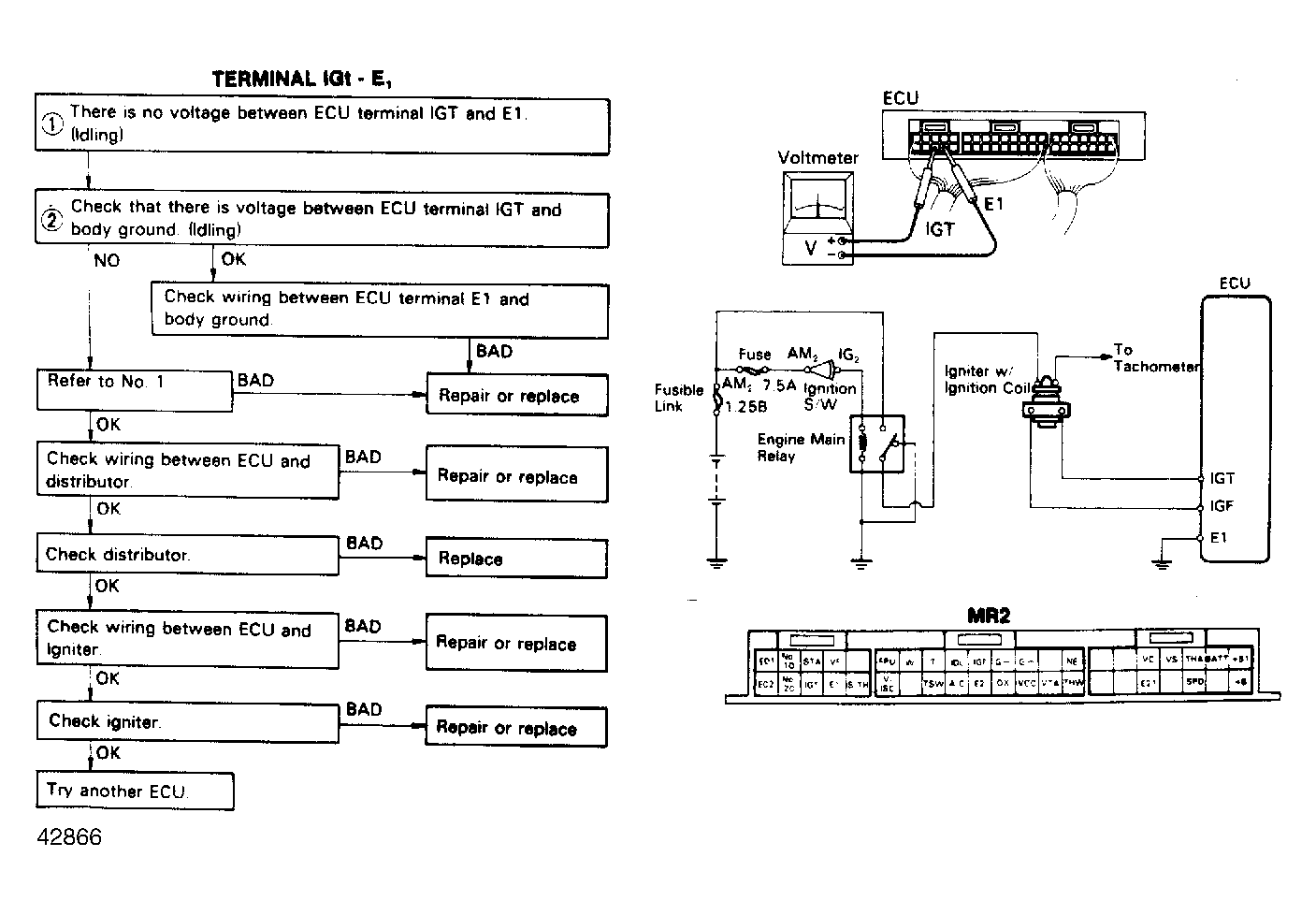

Fig 1: Terminal IGt - E1
G42866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
