Trouble Code 10 Blinks Ignition & Starter Circuit

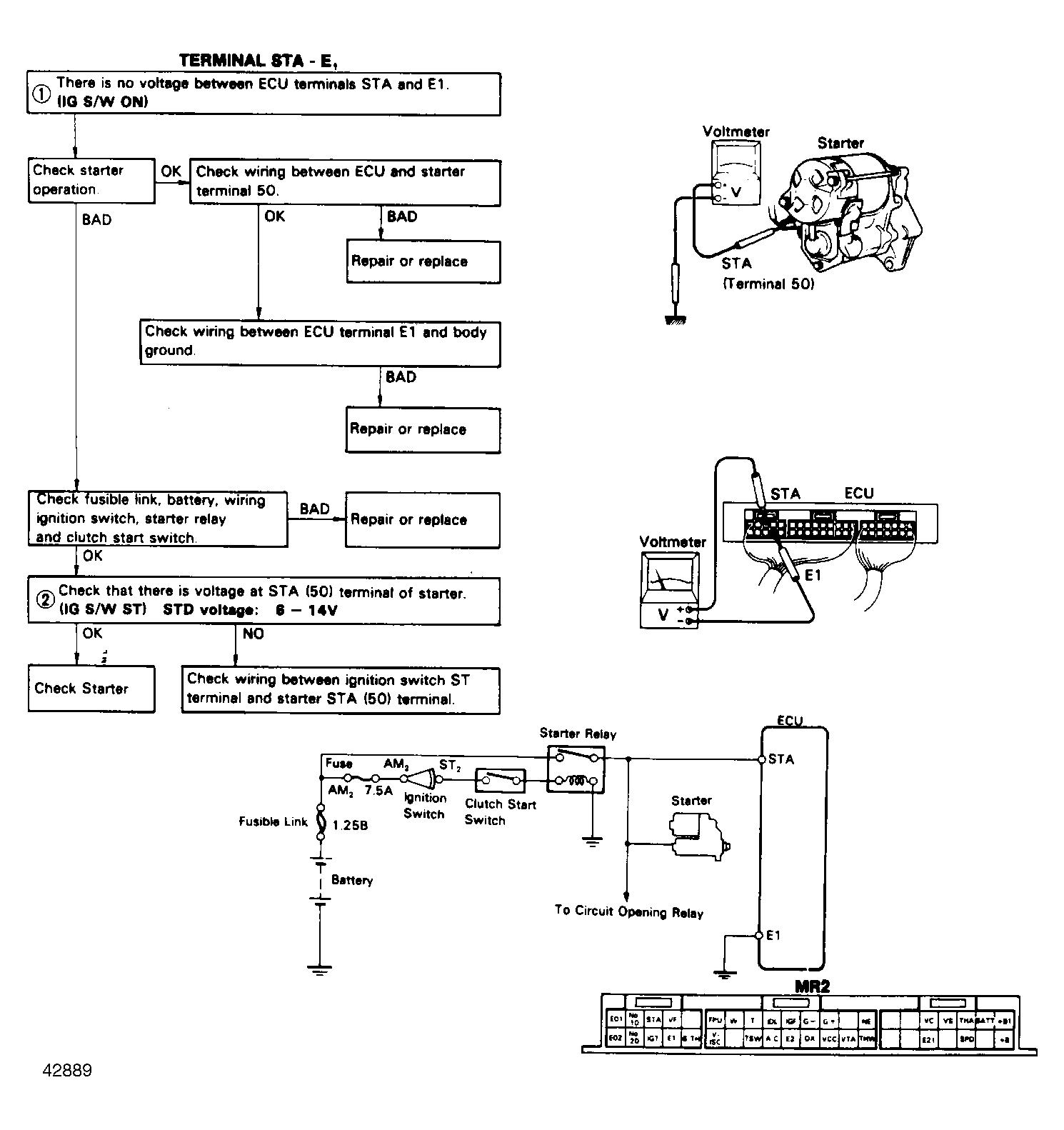

Fig 1: Terminal STA - E1

G42889

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
