Trouble Code 7 Blinks TPS Sensor & Circuit

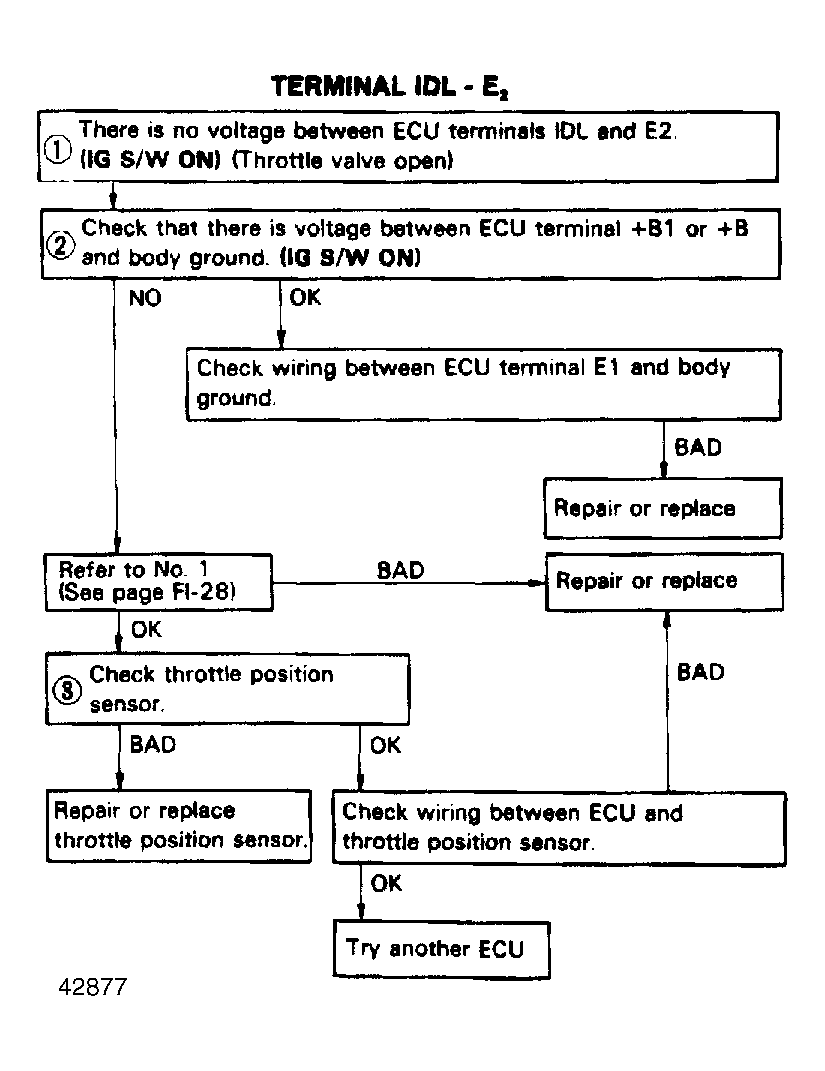

Fig 1: Terminal IDL - E2

G42877

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

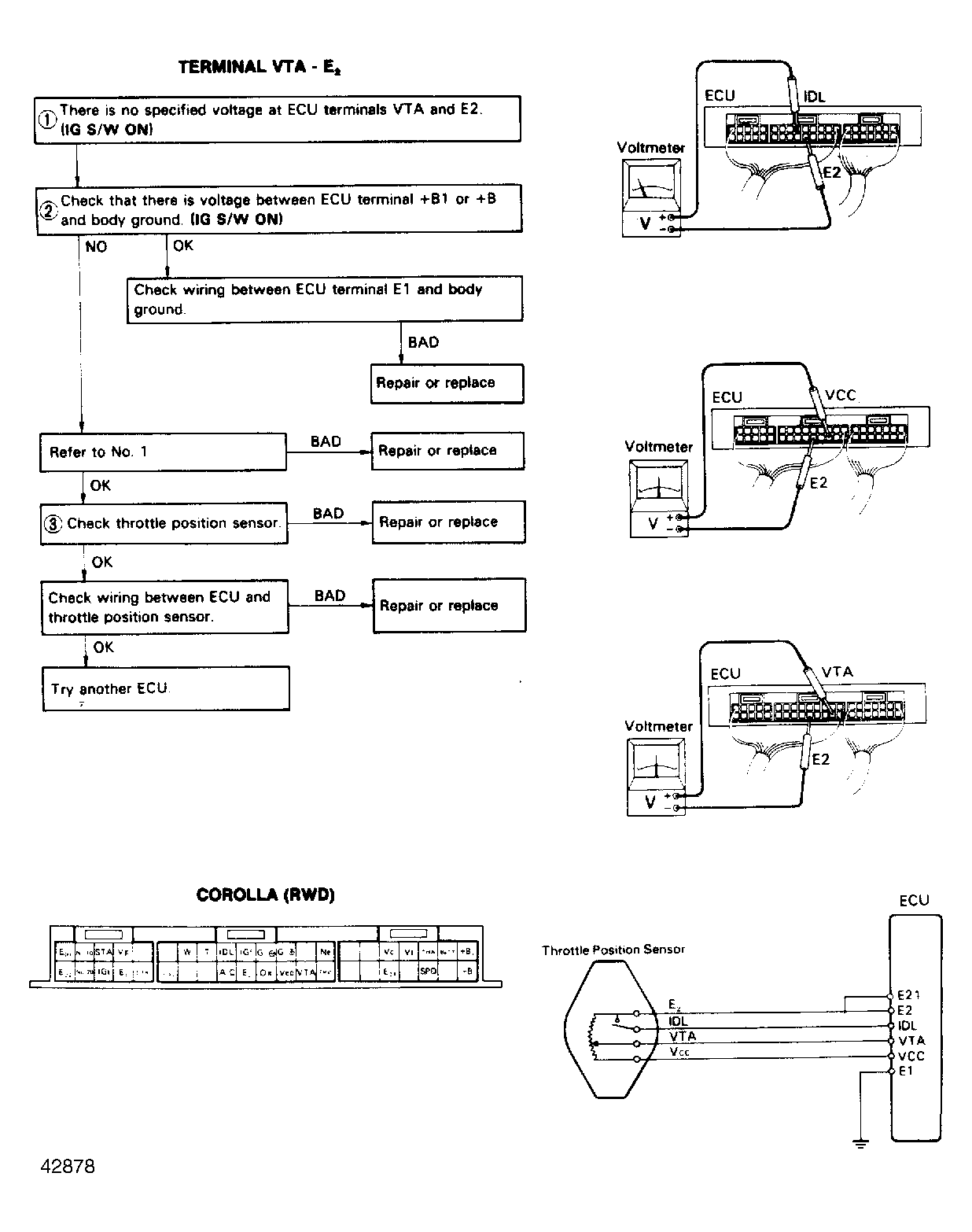

Fig 2: Terminal VTA - E2

G42878

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
