Trouble Code 2 Blinks Air Flow Meter & Circuit
Trouble Code 2 Blinks Air Flow Meter & Circuit

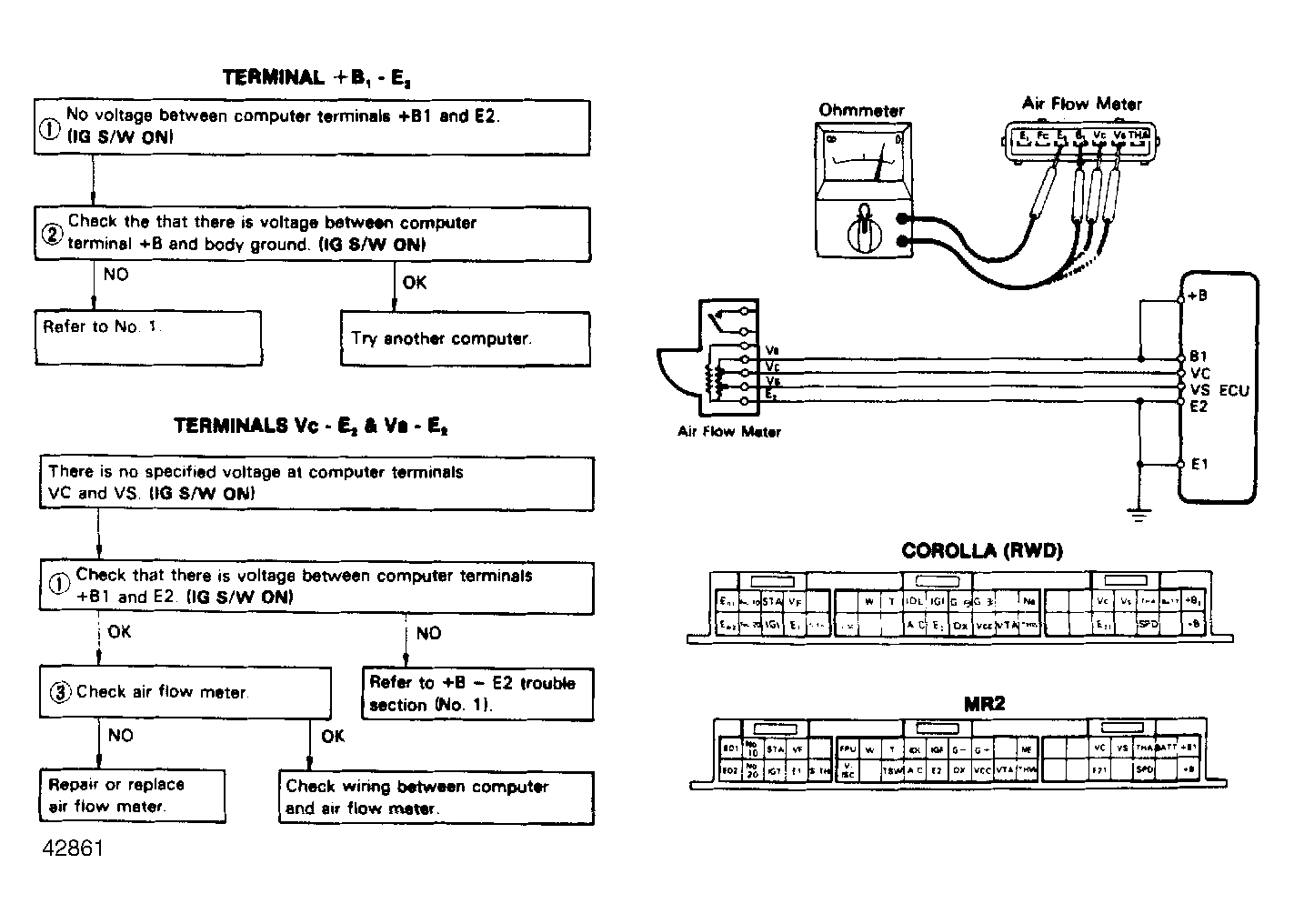

Fig 1: Terminal +B1 - E2 & Terminals Vc - E2 & Vs - E2
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
