Home >> Toyota >> 1985 >> Corolla SR5, 2D Hatchback >> Repair and Diagnosis >> Engine Performance >> System >> TCCS System (RWD) >> System Testing >> Trouble Code 10 Blinks Ignition & Starter Circuit

Trouble Code 10 Blinks Ignition & Starter Circuit

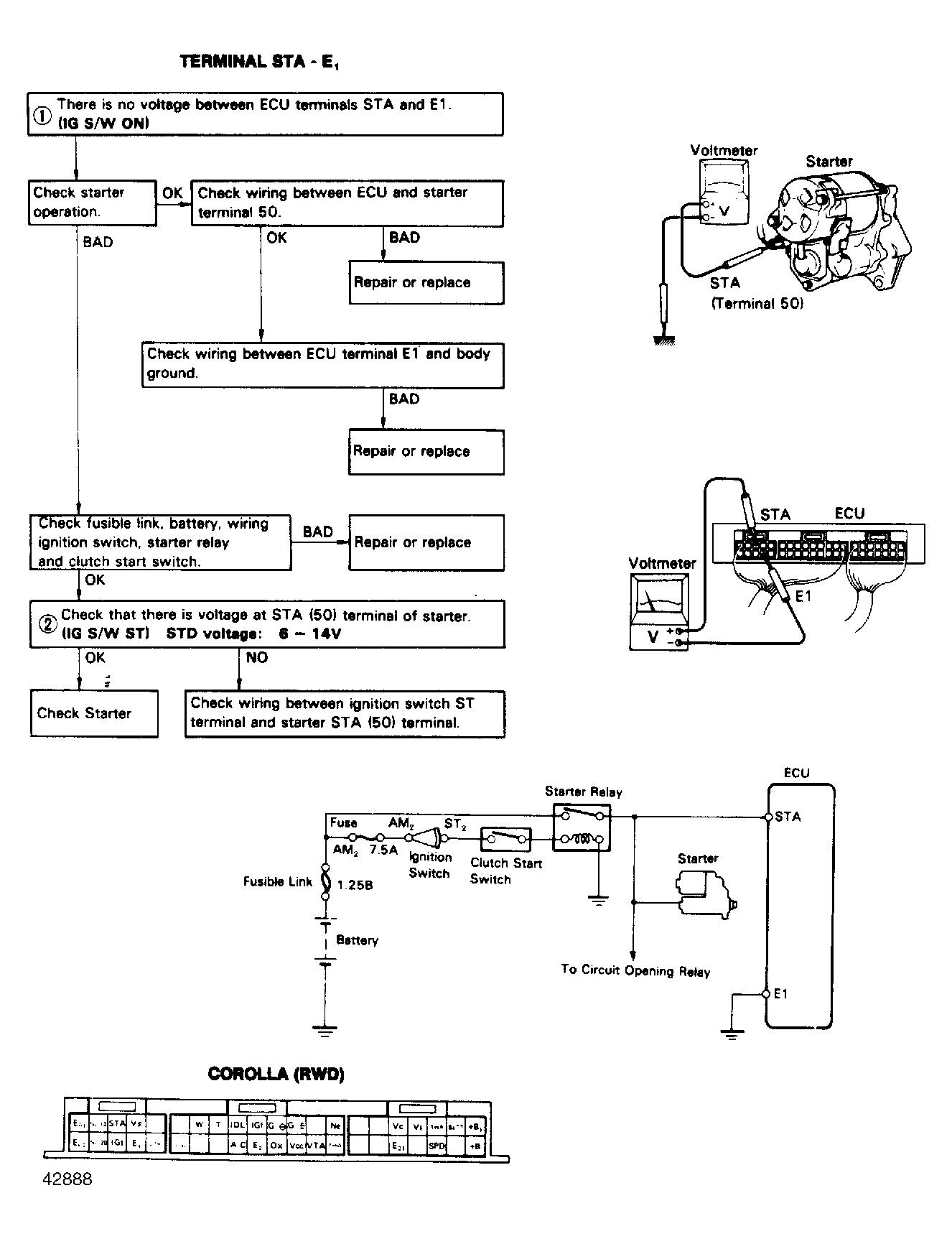

Fig 1: Terminal STA - E1
G42888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
