Wiring Diagrams

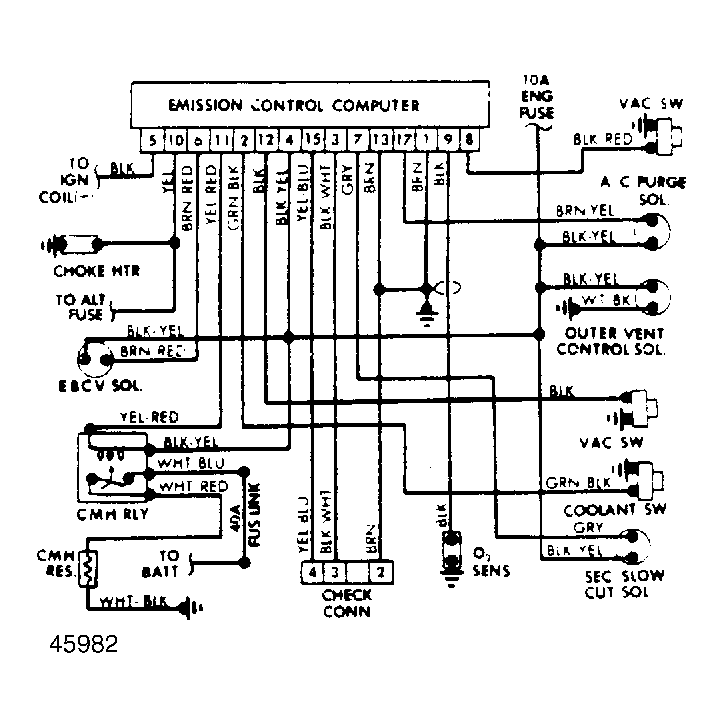

Fig 1: Computer Controlled Emission System Wiring Diagram (FWD)
G45982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

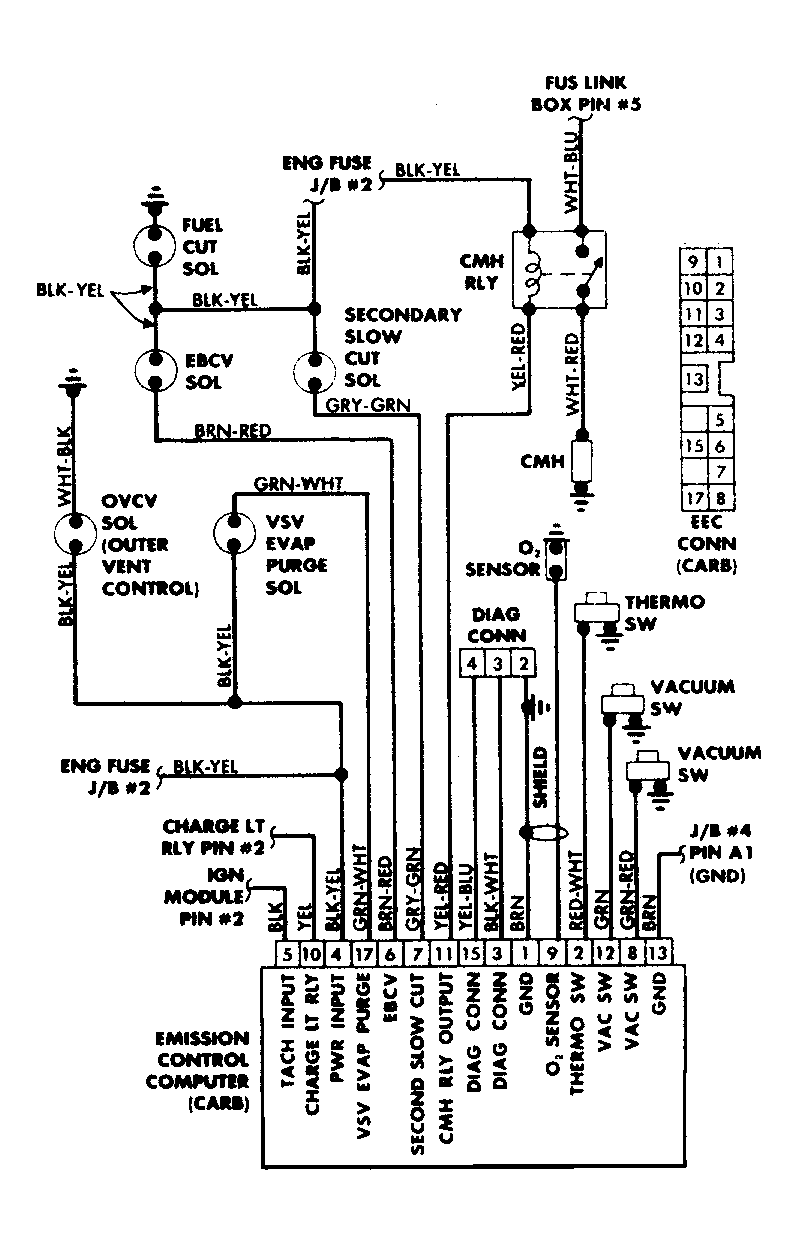

Fig 2: Computer Controlled Emission System Wiring Diagram (RWD)
G50A12310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
