Control Units

CONTROL UNITS LOCATION

Component Location
Cruise Control Computer Behind right kick panel. See Figure.

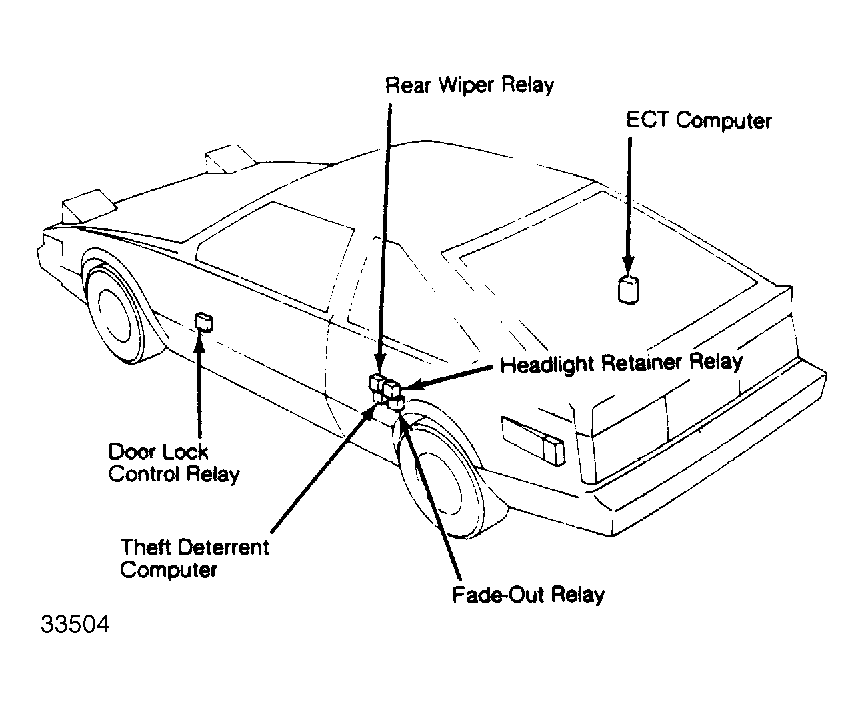

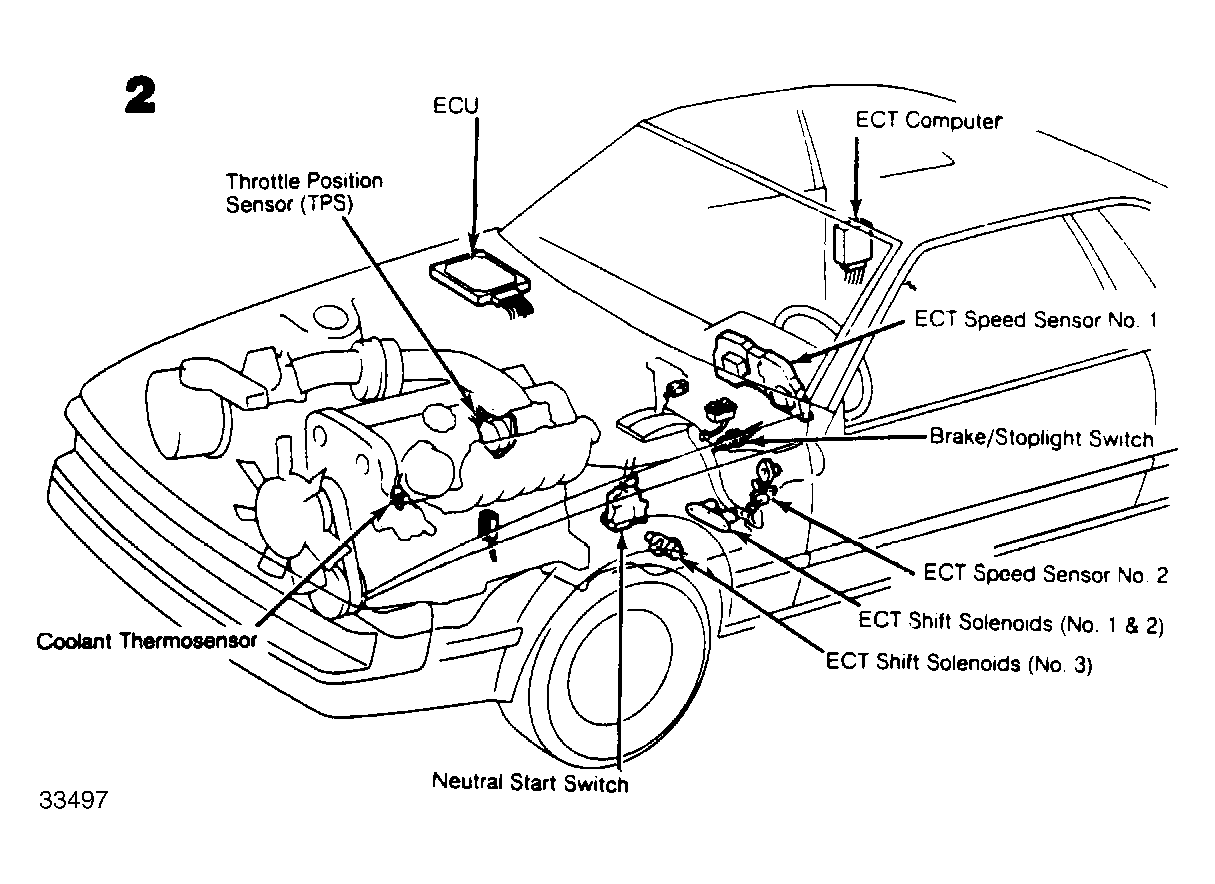

ECT Computer Behind trim panel on right side lower B pillar. See Figure & Figure .
ECU Behind glove box. See Figure.
Theft Deterrent Computer Behind trim panel, in front of left rear wheelwell. See Figure.
