Wiring Diagrams

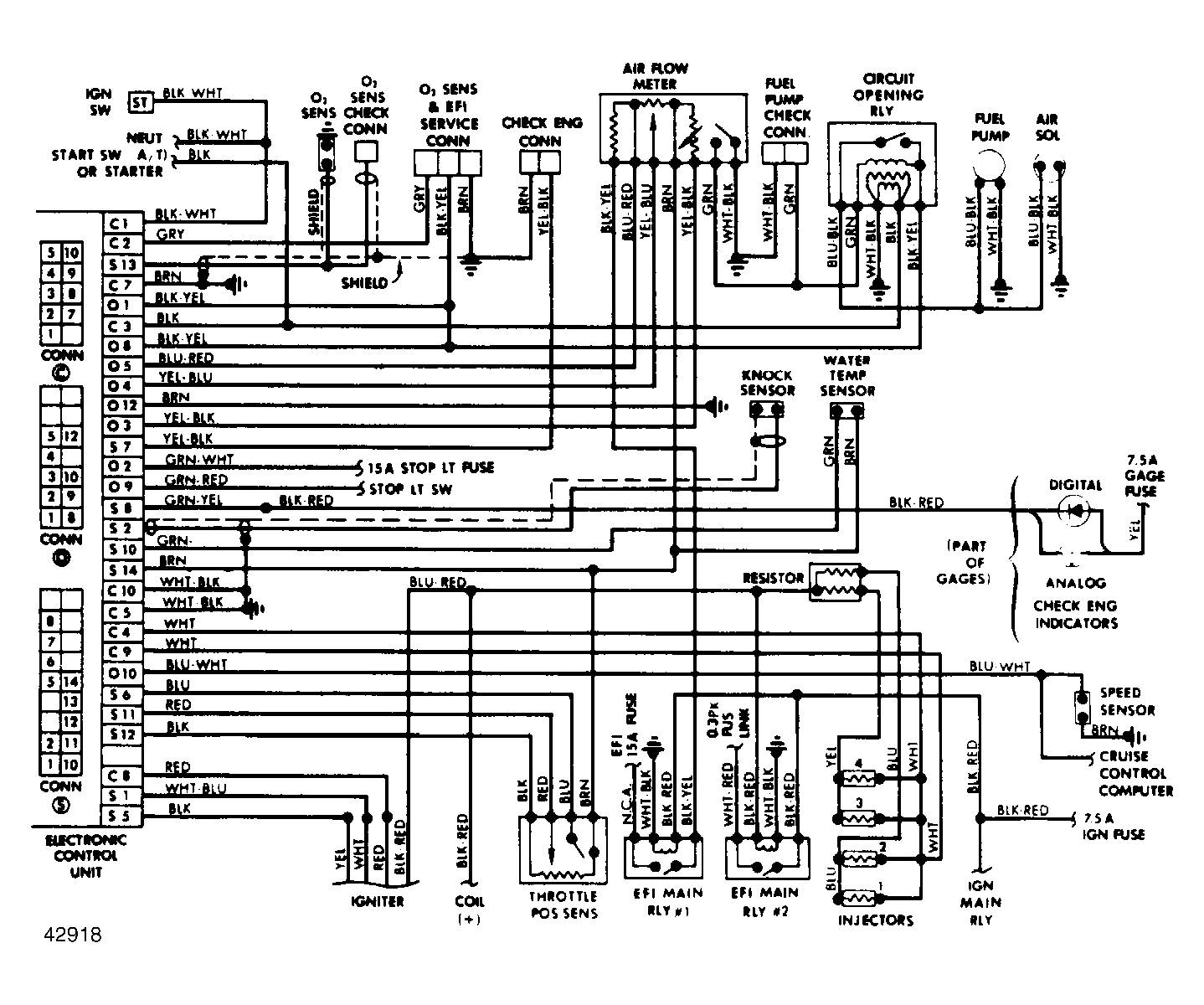

Fig 1: Celica TCCS Wiring Diagram

G42918

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
