Wiring Diagrams

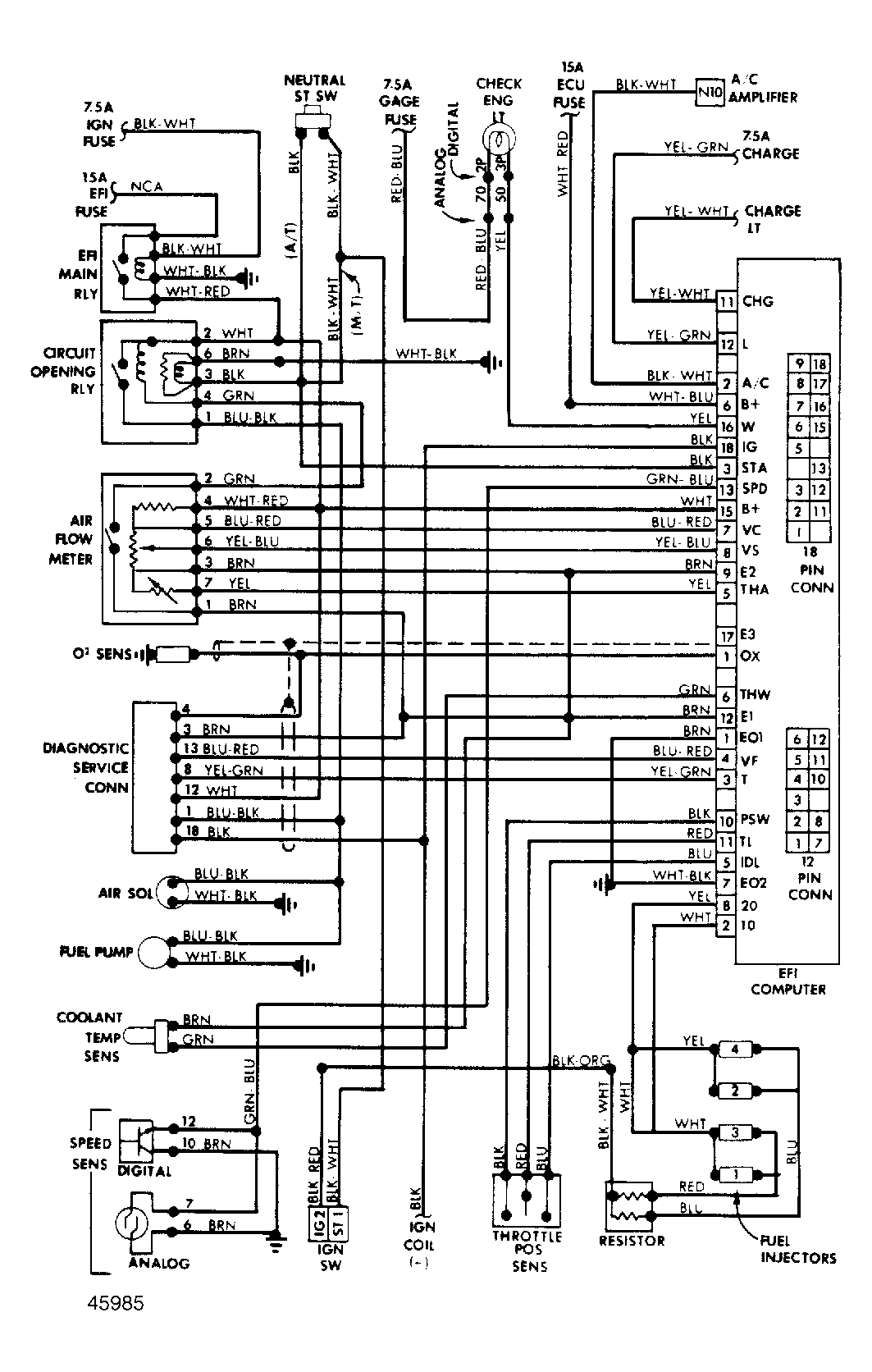

Fig 1: Camry ECS Wiring Diagram
G45985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
