Camry LE, 4D Hatchback
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
ECS CEC System
>>
Diagnosis & Testing
>>
Trouble Code 6 - Ignition Signal
Trouble Code 6 - Ignition Signal
Fig 1: Terminals IG - E1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

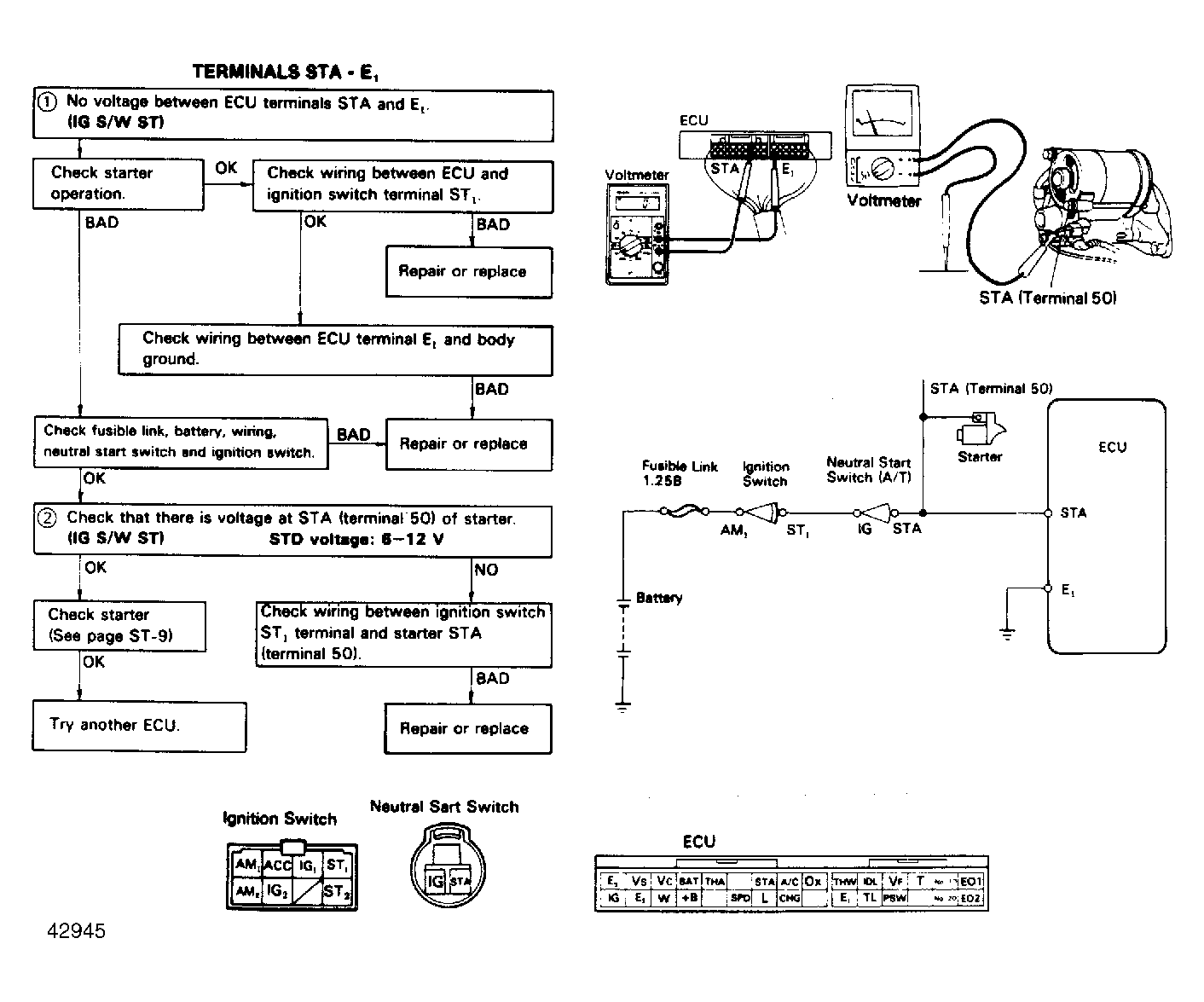

Fig 2: Terminals STA - E1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
