A/C Switch Check
A/C Switch Check

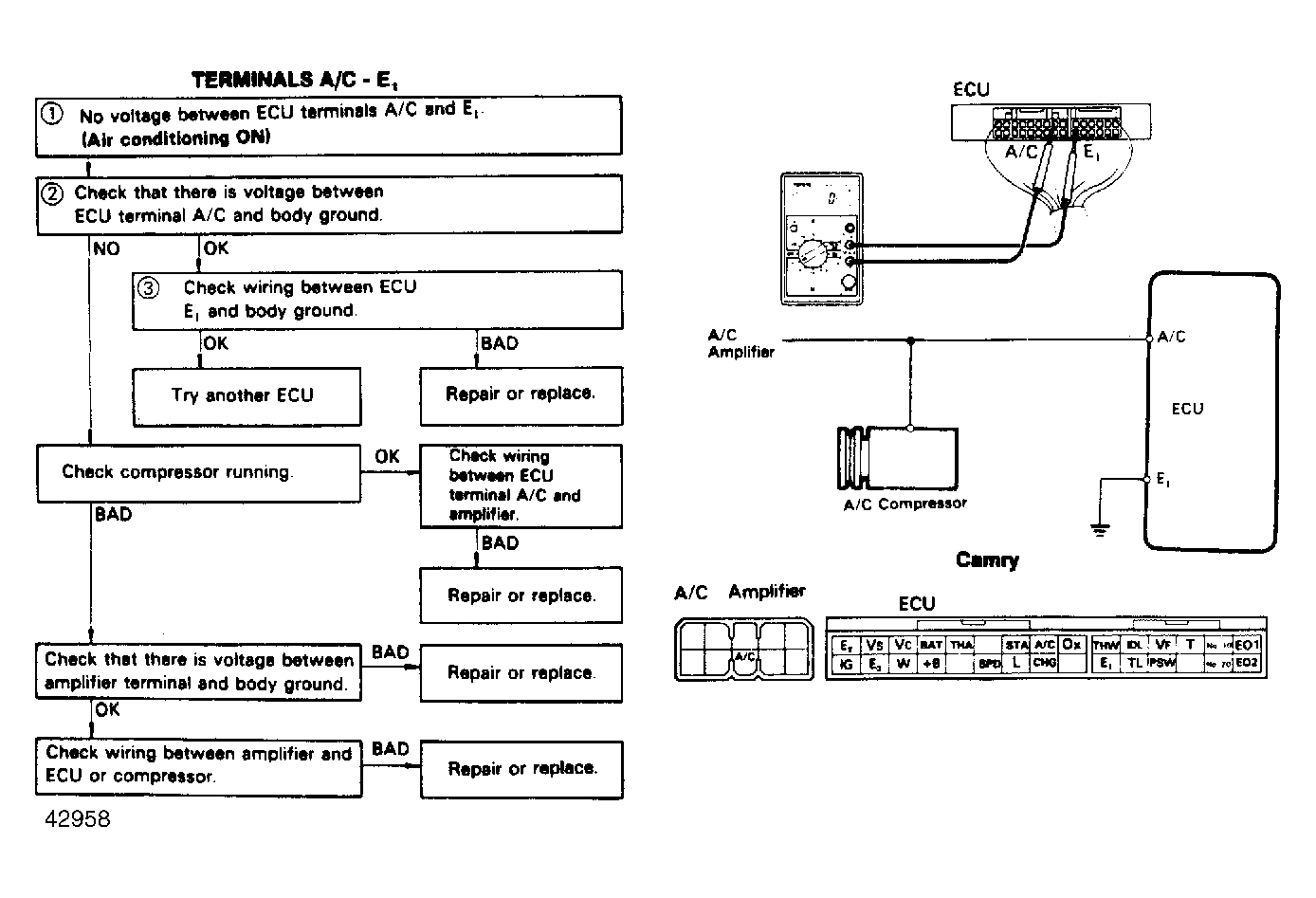

Fig 1: Terminals A/C - E1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
