Trouble Code 3 Blinks - IGNITOR & Circuit

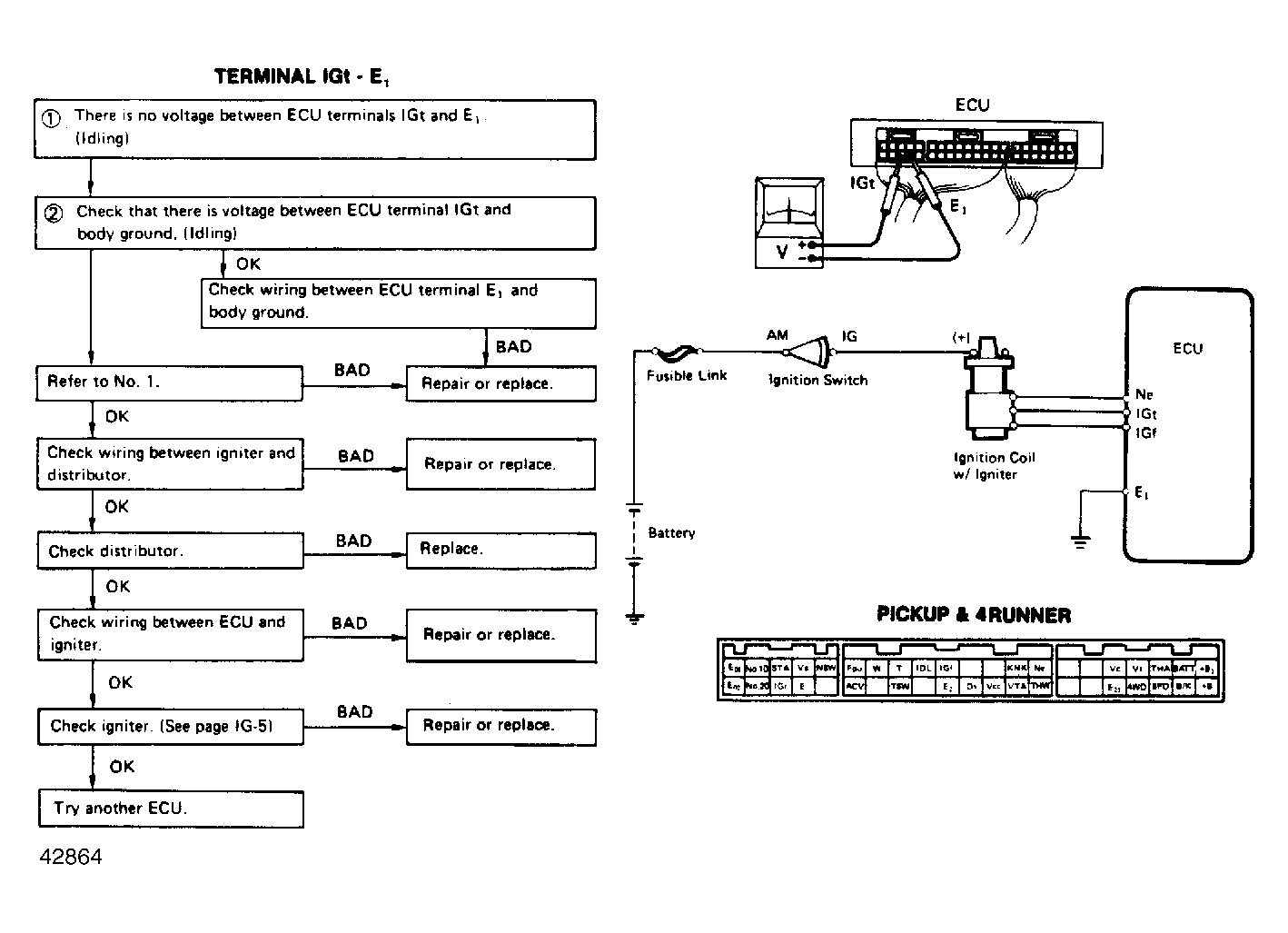

Fig 1: Terminal IGt - E1

G42864

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
