Trouble Code 10 Blinks - Ignition & Starter Circuit

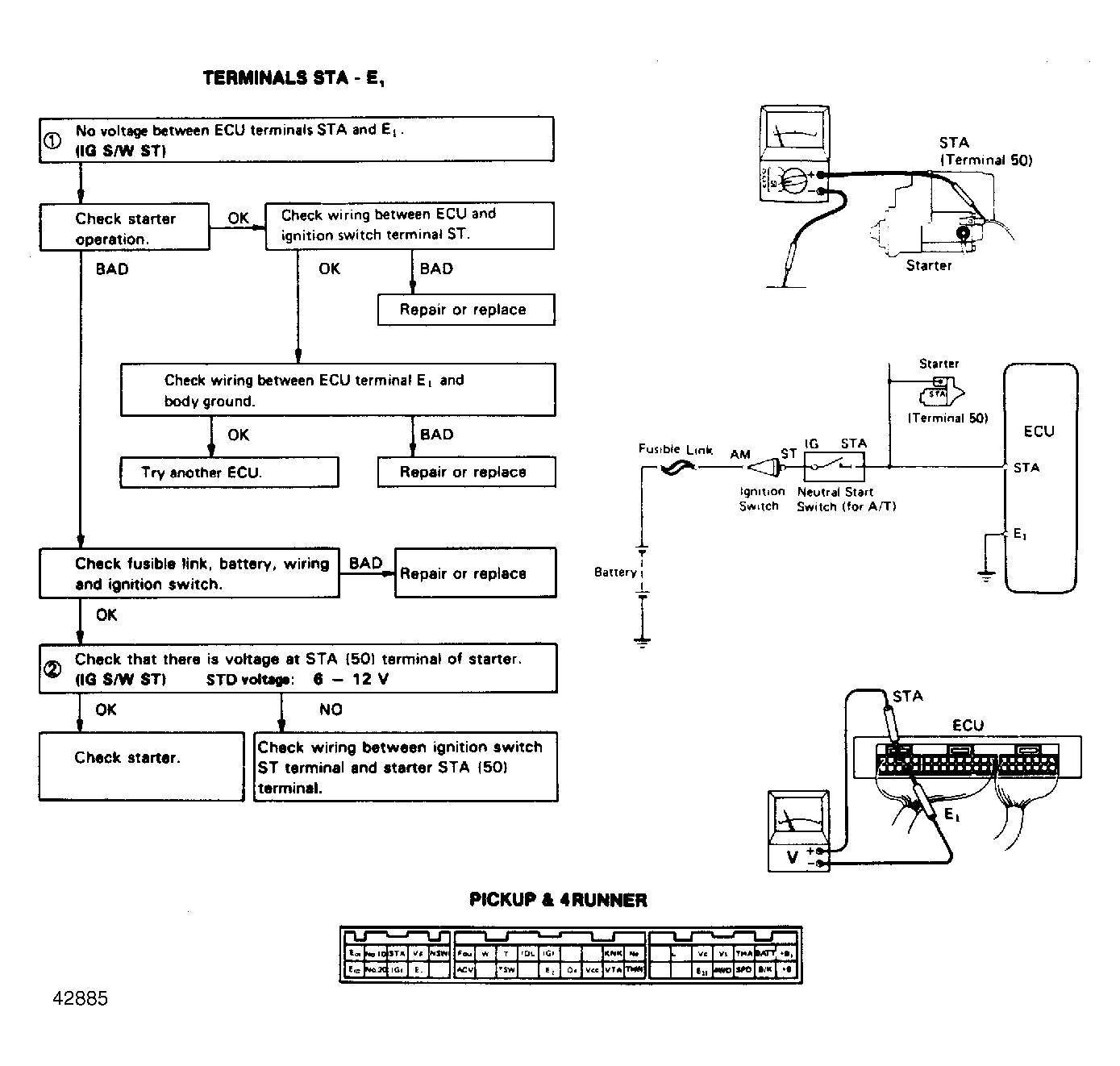

Fig 1: Terminals STA - E1

G42885

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
