Trouble Code 11 Blinks - A/C Switch Or TPS Circuit

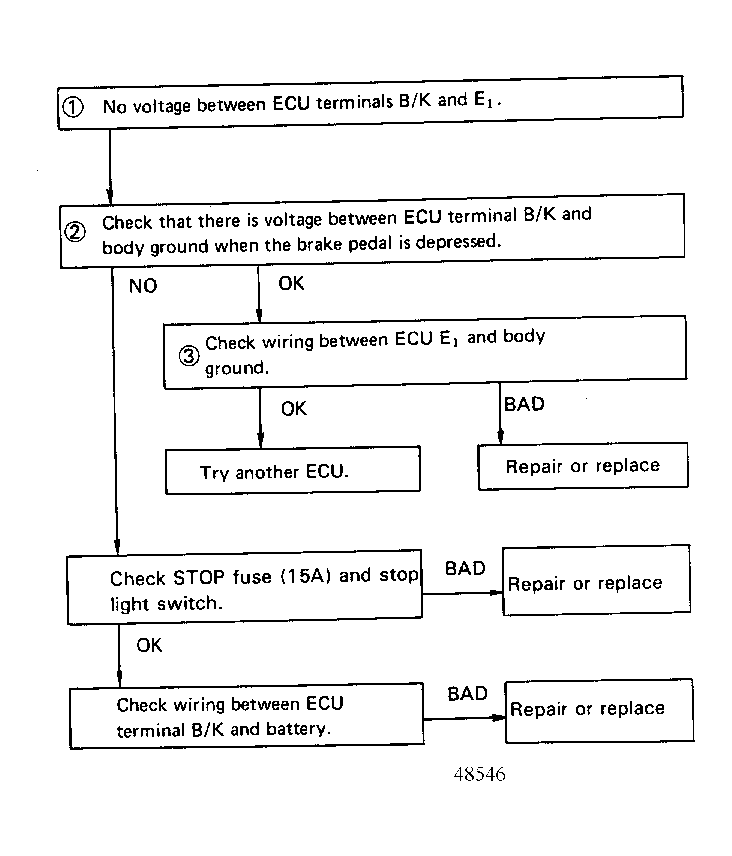

Fig 1: Terminal +B/K - E1 & Terminal BAT - E1
G48546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
