Wiring Diagrams

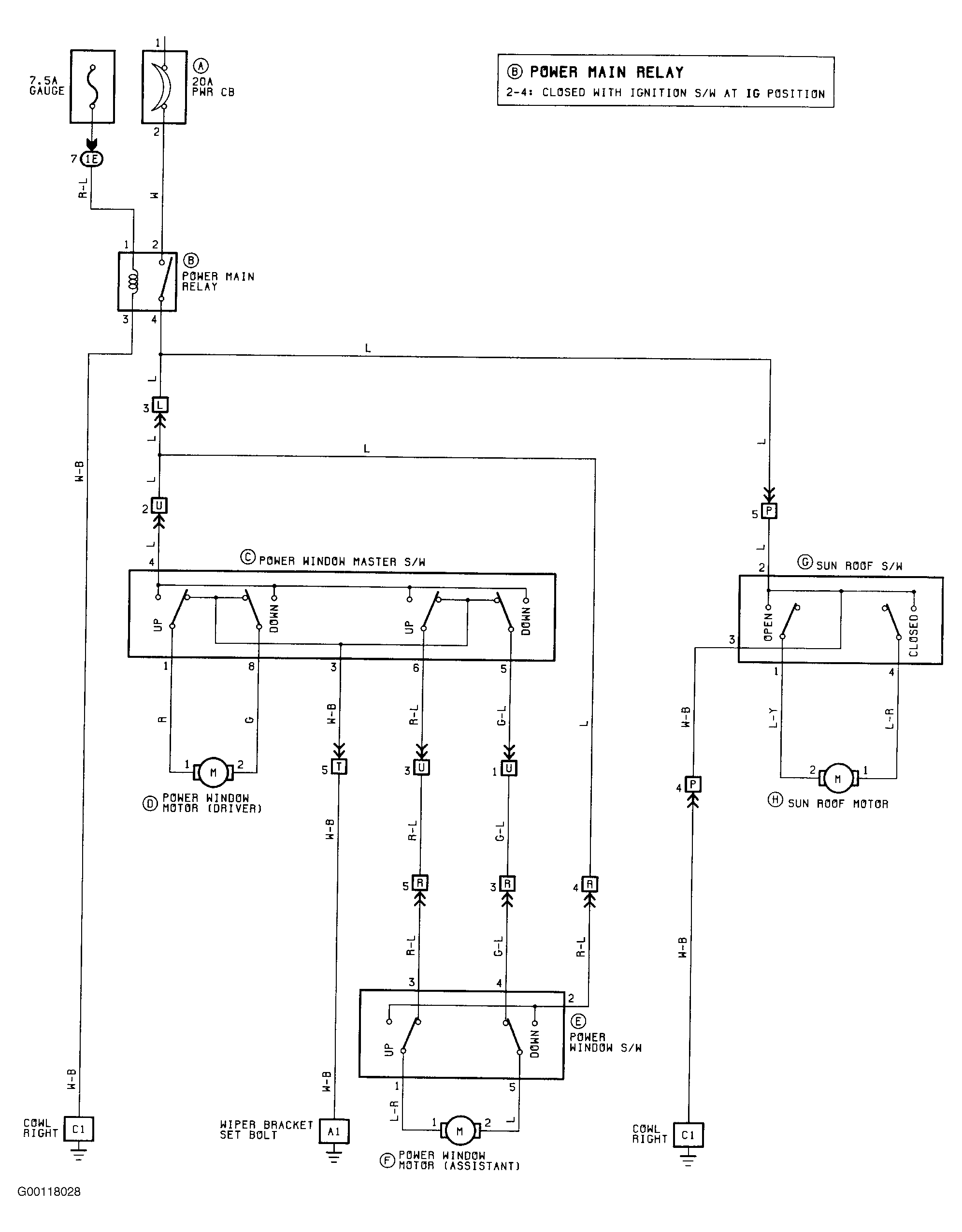

Fig 1: Power Windows Wiring Diagram

G00118028

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
