Toyota
>>
1984
>>
Camry DX, 4D Hatchback
>>
Repair and Diagnosis
>>
Engine Performance
>>
Testing & Diagnosis
>>
ECS Engine Control System
>>
Diagnostic Circuit Check
Diagnostic Circuit Check

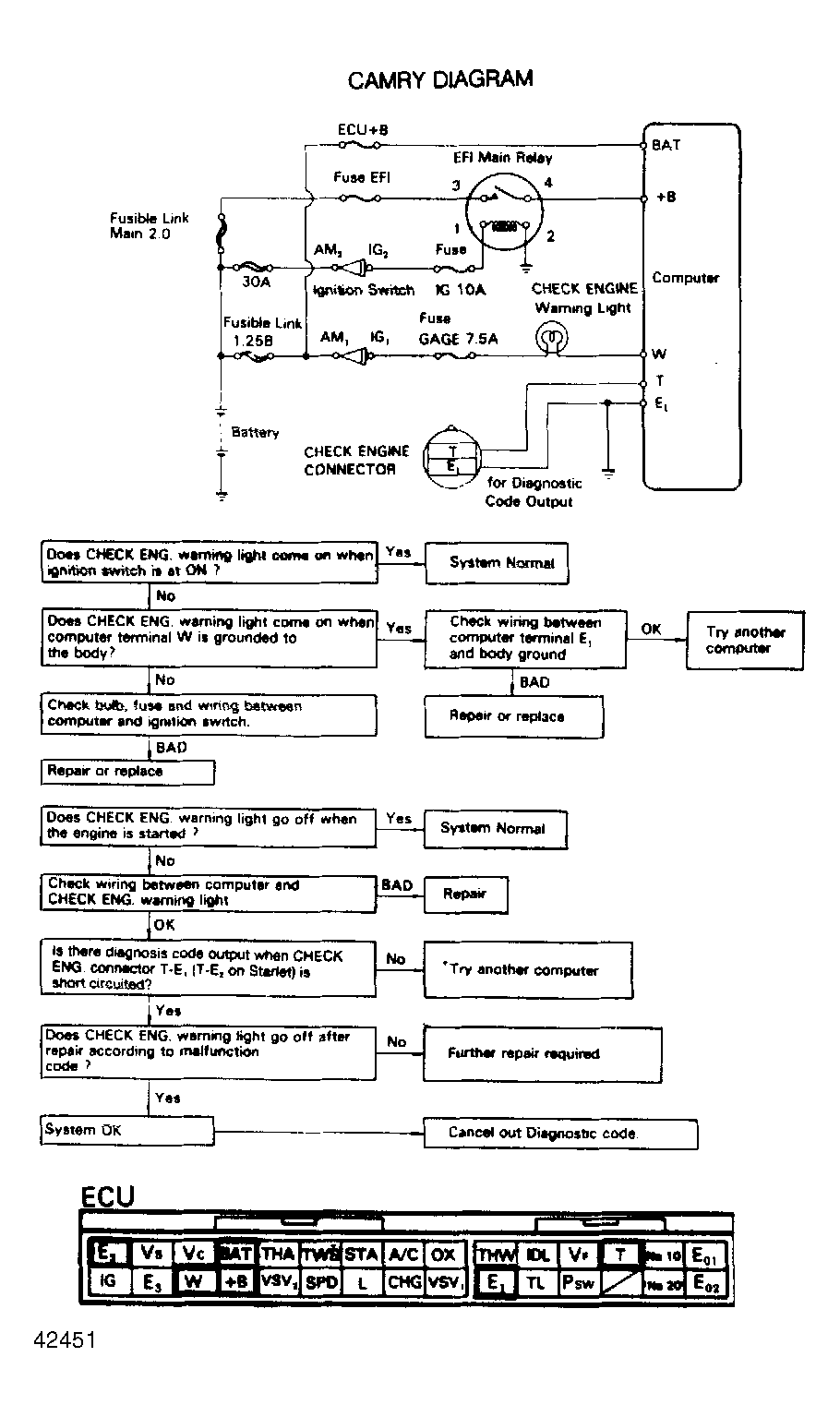

Fig 1: Camry Diagnostic Circuit Check & Schematic
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
